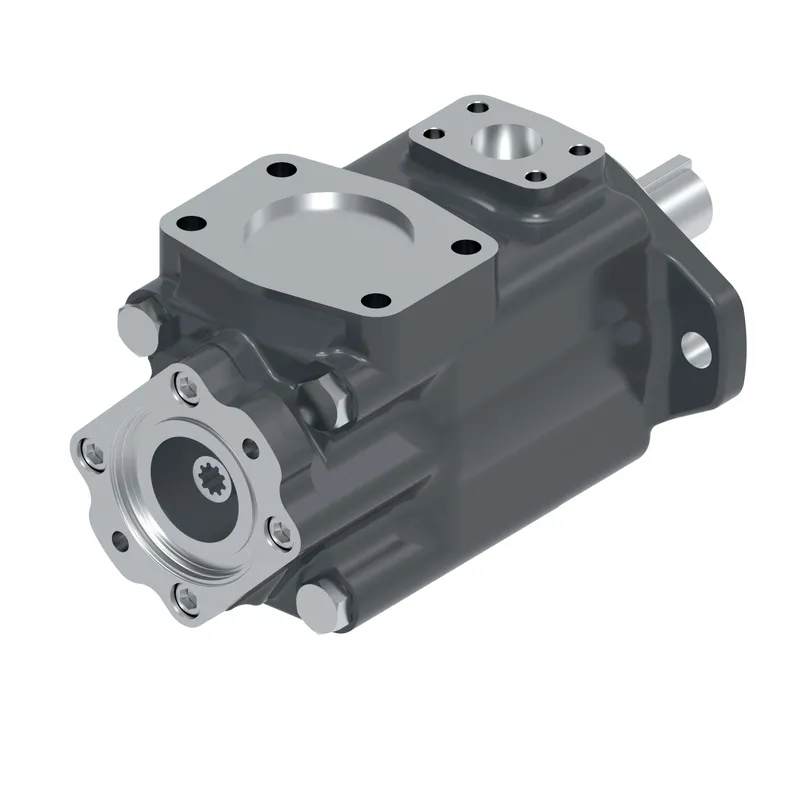

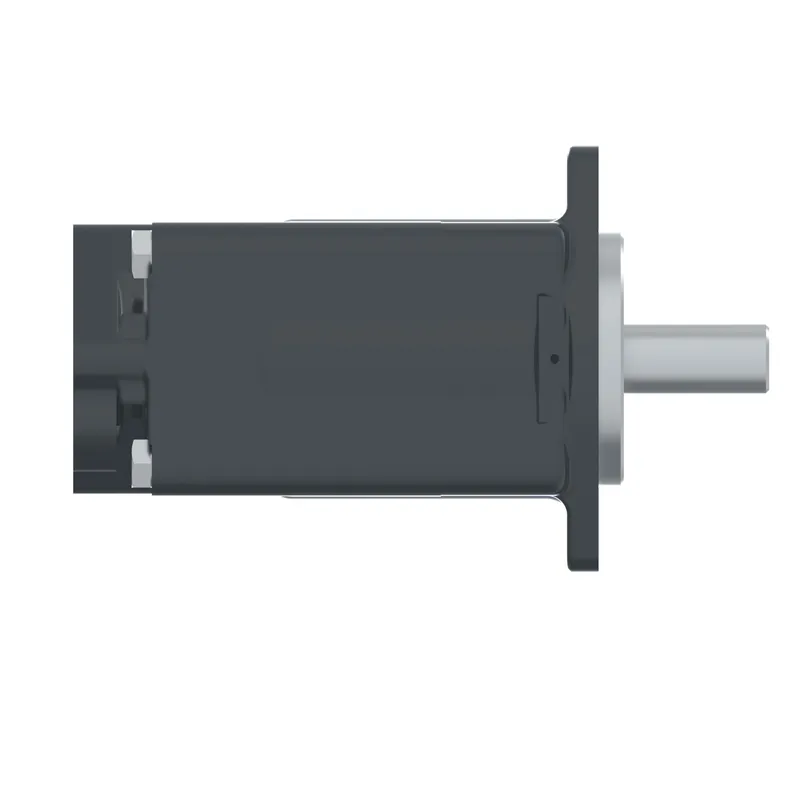

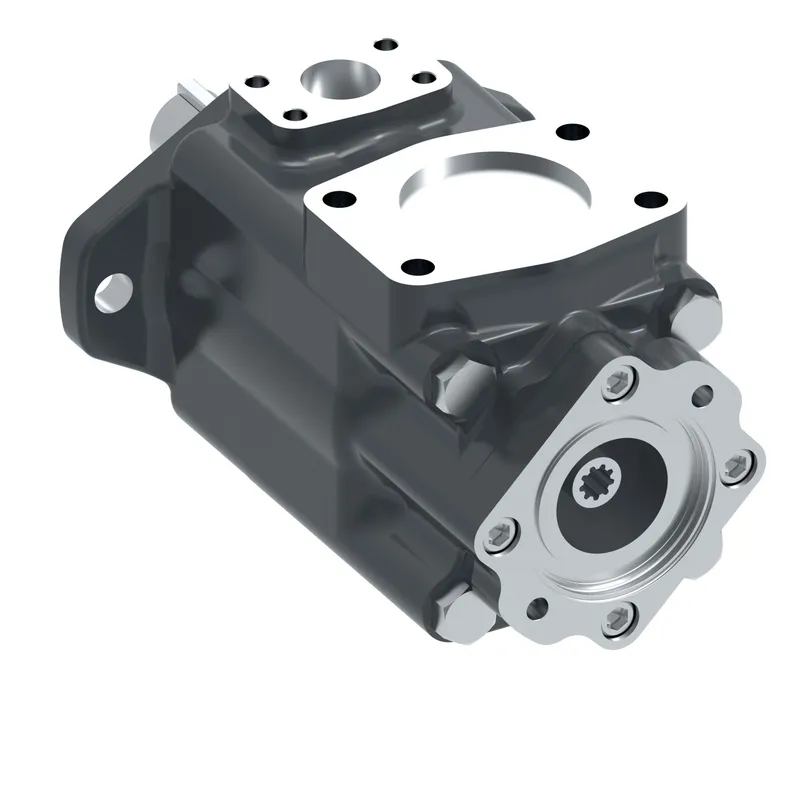

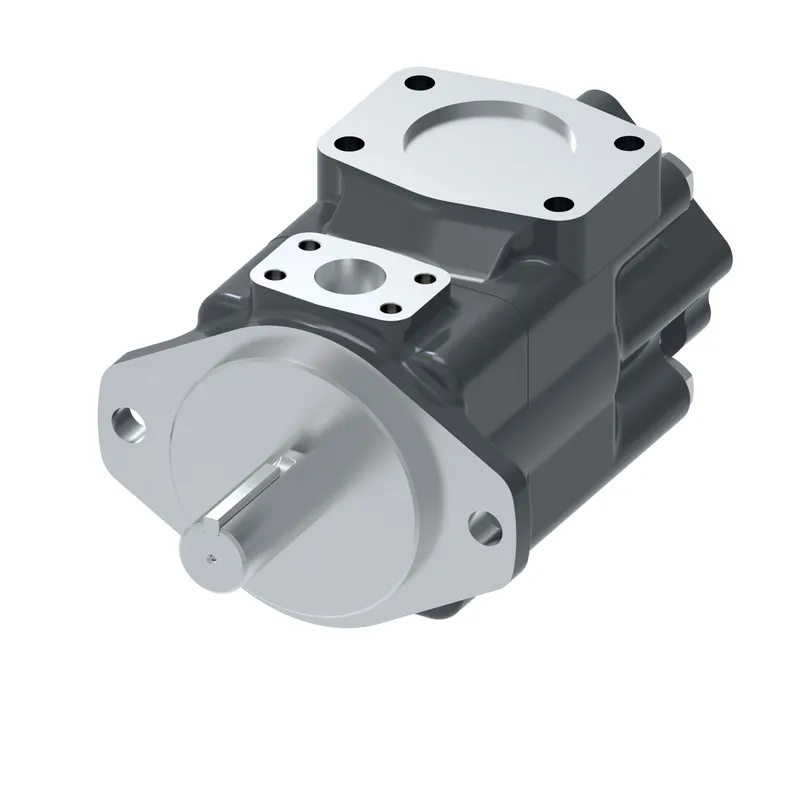

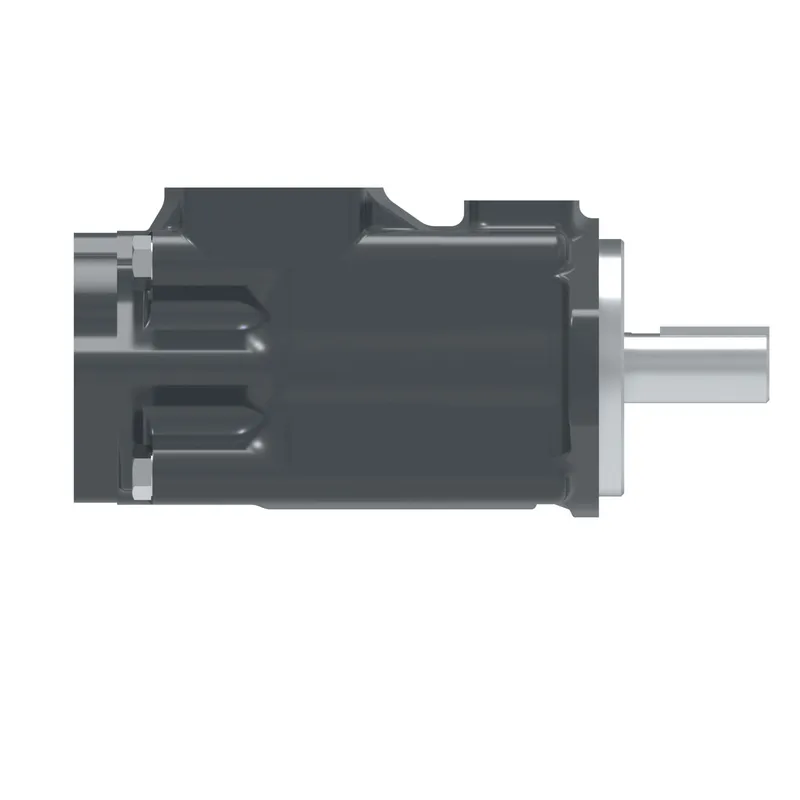

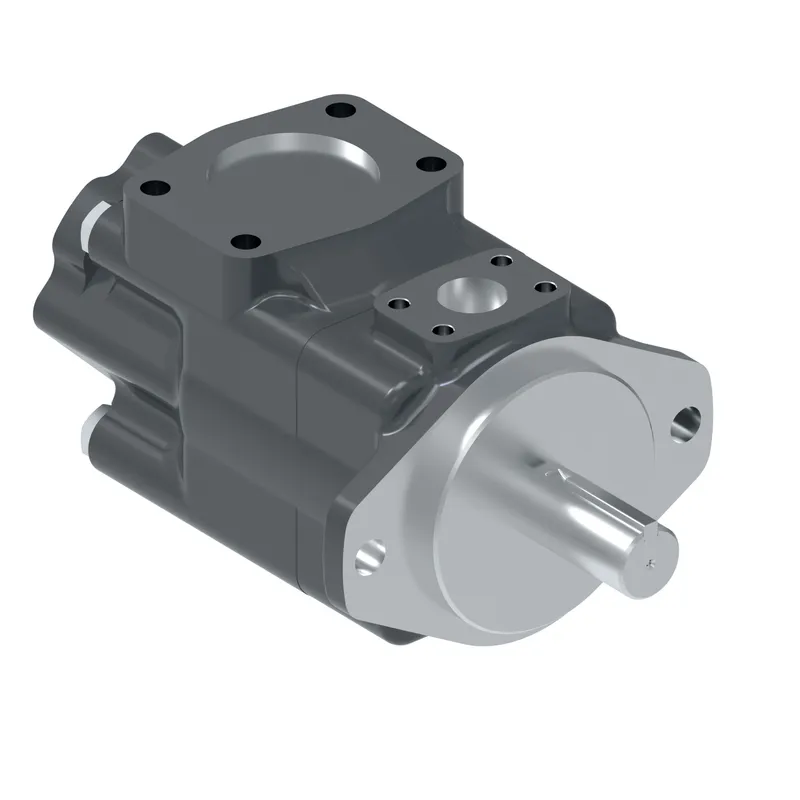

Danfoss 02-152111-N
25VQTBPS17C 2297CA 20R, 25VQTBPS17C 2297CA 20R
- MPN
- 02-152111-N
- Category
- Industrial vane pumps
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Danfoss 02-152111-N?
Danfoss 25VQTBPS17C 2297CA 20R, 25VQTBPS17C 2297CA 20R, manufacturer part number 02-152111-N. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| PUMP TYPE | INTRAVANE PUMP |
| Series | INTRAVANE PUMP SERIES WITH STANDARD BEARING |
| Shaft type | 297 - SAE B SPLINED, 13 TEETH (DOUBLE SHAFT SEAL) |
| ROT FROM SHAFT END | RIGHT HAND OR CLOCKWISE |
| THRU DRIVE | THRU DRIVE |
| ADPMTG ORT ADP END | A ADAPTER- ROTATED 45⁰ CW WITH RESPECT TO PUMP MTG. FLG. B OR C ADAPTER- IN LINE WITH PUMP MTG. FLANGE |
| BODY MOUNTING FLG | SAE J744 MOUNTING FLANGE |
| Brand | Vickers by Danfoss |
| CPLG FOR TAND PUMP | SAE SPLINED COUPLING INCLUDED WITH PUMP |
| DESIGN NO MOD | DESIGN CODE-SINGLE SS |
| IPM FRAME SIZE | 25VQ Single Pump |
| Model Code 1 | 25VQTBPS17C 2297CA 20R |
| OUTLET POS FROM ADP END | IN LINE WITH INLET PORT |
| ROTATING GROUP CAP | 17 GPM |
| SAE PORT CXN | INLET-4BOLT FLG. OUTLET- STR. THREAD |
| THRU CXN MTG ADP | TWO BOLT SAE 'B' FLANGE WITH SPACER FOR PVE 19/21 |
02-152111-N: frequently asked questions
When can 02-152111-N be shipped?
02-152111-N is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 02-152111-N in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 02-152111-N and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-152111-N, subject to availability and destination.
