Danfoss 02-151676

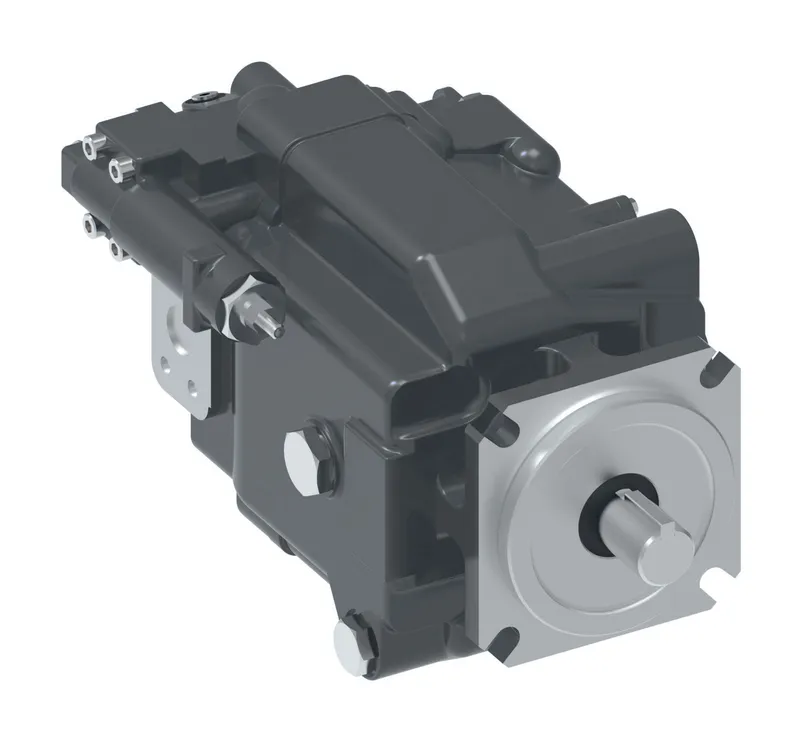

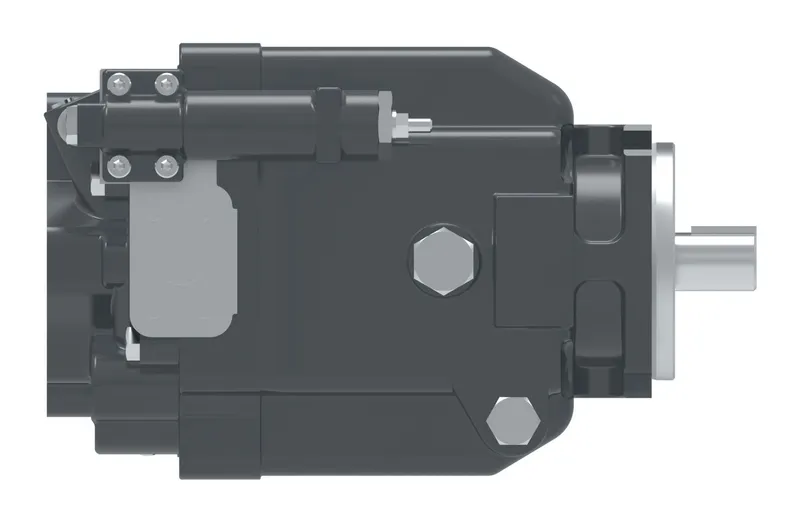

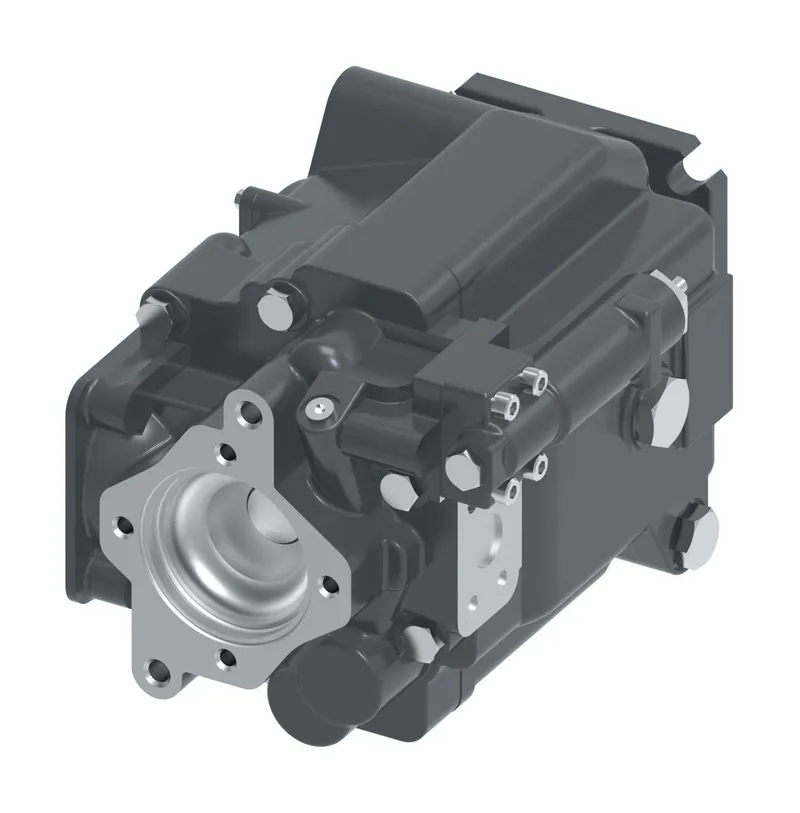

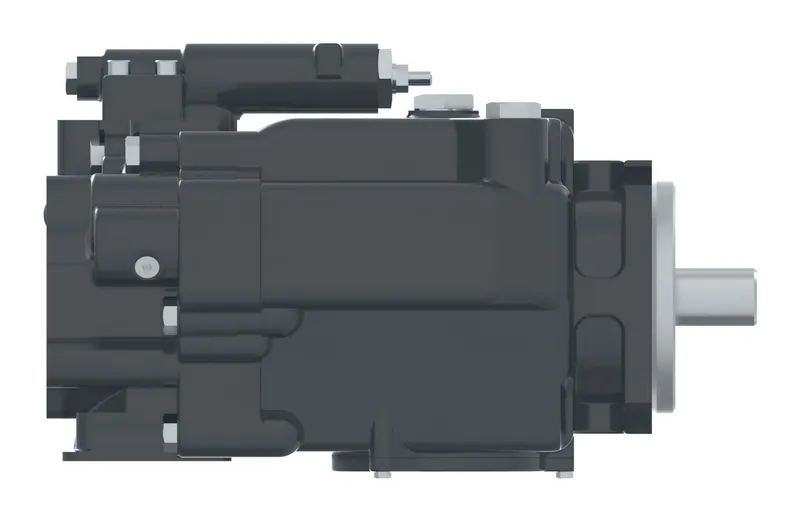

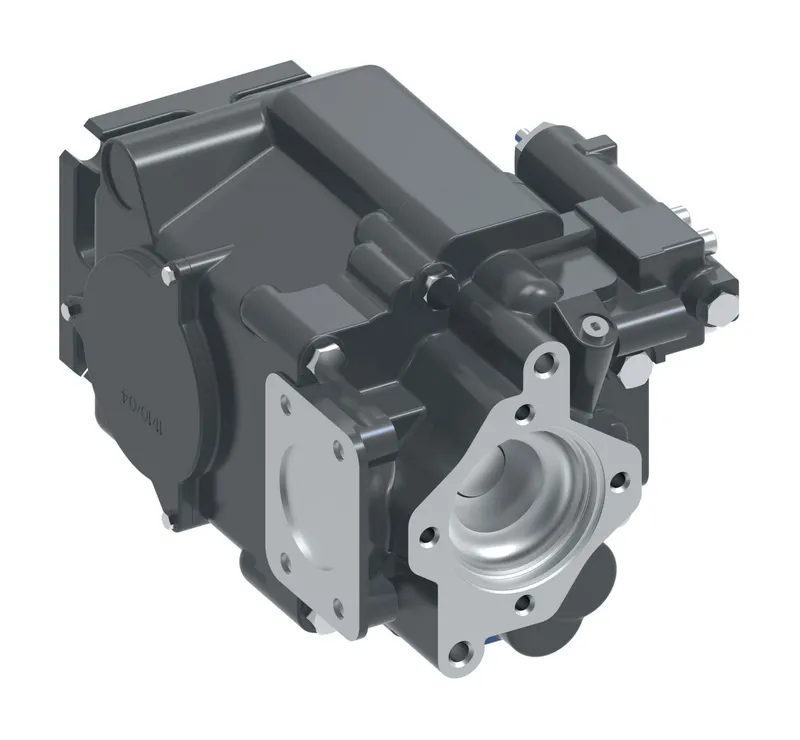

PVH074R01AA50B252000001001AB010A

MPN: 02-151676
Category: PVH and PVE open-circuit piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-151676?

Danfoss PVH074R01AA50B252000001001AB010A, manufacturer part number 02-151676. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Aux mount output shaft	NO AUXILIARY MOUNTING OR OUTPUT SHAFT
CODE TITLE	VICKERS PRESSURE COMPENSATED/PRESSURE FLOW COMPENSATED OPEN CIRCUIT PISTON PUMP
Control special features	NO CONTROL SPECIAL FEATURES
Controller type	PRESSURE AND FLOW COMPENSATOR
Customer identification	NONE - MARK ASSEMBLY NUMBER, COMPLETE MODEL CODE AND BUILD DATE CODE ON PLATE
Design code	FIRST DESIGN
Diagnostic pressure ports	NO DIAGNOSTIC PRESSURE PORT
Displacement	73,7 CM3/R [4.50 IN3/R]
Drain port size location	VERTICAL MOUNT W/ .750-16 UNF-2B SAE O-RING PORT - BOTTOM (TOP PLUGGED)
Flow comp unload valve	19-21 BAR [276-305 LBF/IN2]
Front mounting input shaft	4 BOLT C (SAE J744-127-4) WITH 31.8 [1.25] DIA STRAIGHT KEYED SHAFT (KEY INCLUDED), 56.0 [2.20] SHAFT EXTENSION
Input shaft rotation	RIGHT-HAND ROTATION (CW) RIGHT SIDE SUCTION PORT, LEFT SIDE PRESSURE PORT
Main ports size location	SIDE PORTS; SUCTION - 2.000 SAE 4-BOLT SPLIT FLANGE PORT STANDARD PRESSURE SERIES (CODE 61) WITH 1/2-13 UNC-2B THREADS; PRESSURE- 1.000 SAE 4-BOLT SPLIT FLANGE PORT STANDARD PRESSURE SERIES (CODE 61) WITH 3/8-16 UNC-2B THREADS
Maximum displacement option	STANDARD DISPLACEMENT
Paint	BLUE PRIMER
Pressure compensator setting	246-254 BAR [3568-3684 LBF/IN2]
Shaft seal	SINGLE, ONE-WAY SHAFT SEAL, FLUOROCARBON
Special features	Q250 VALVE PLATE
Torque sensing other comp	NO TORQUE SENSING SETTING OR OTHER COMPENSATION
