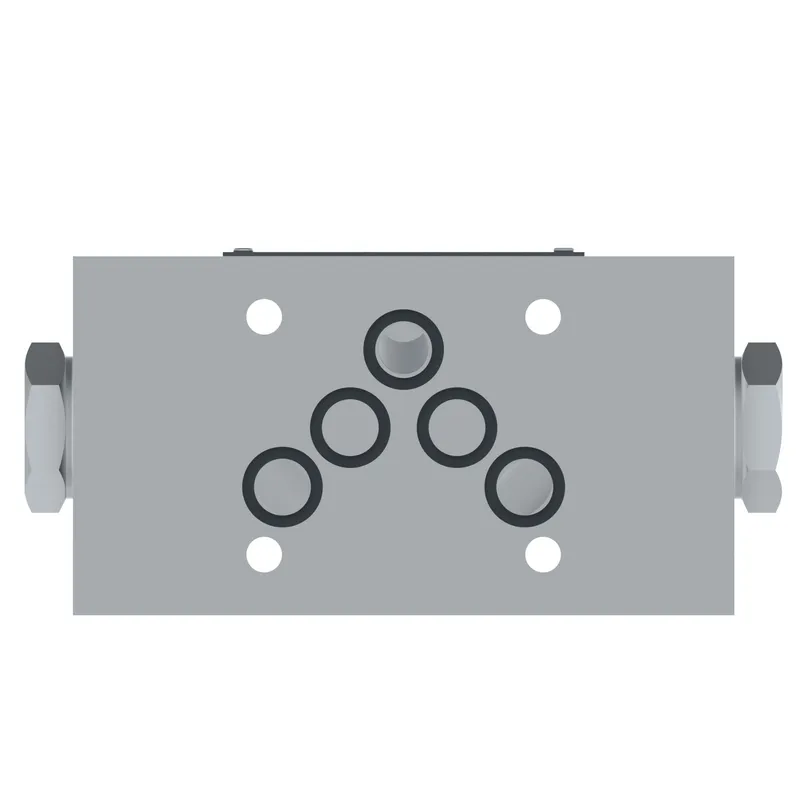

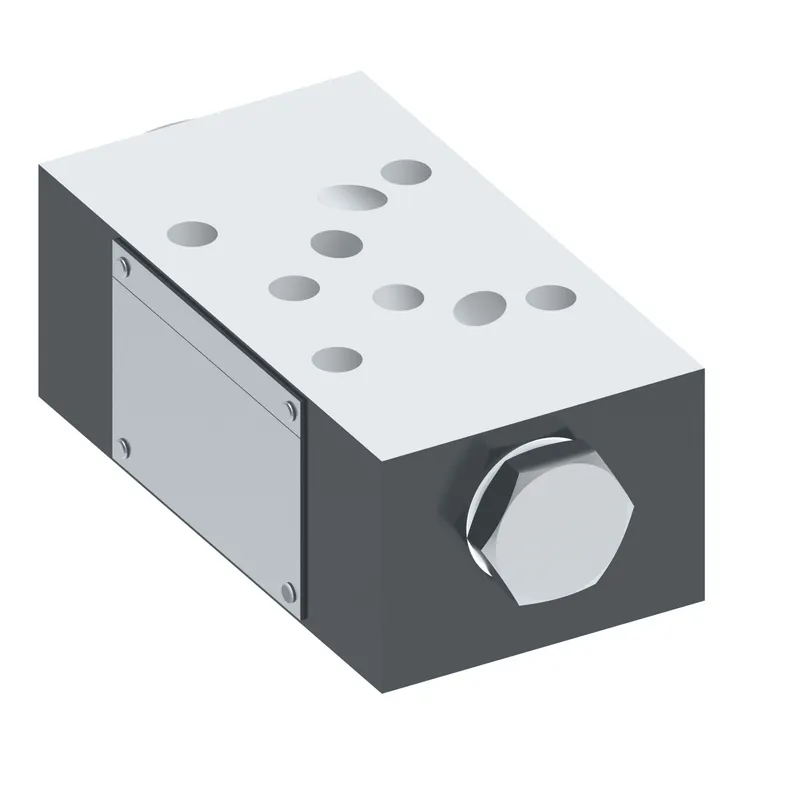

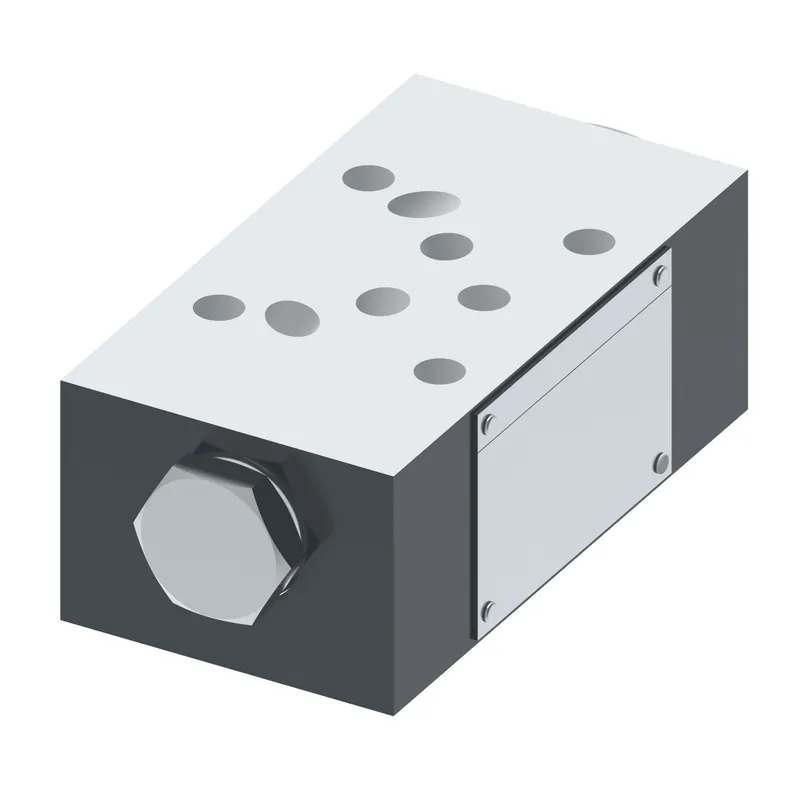

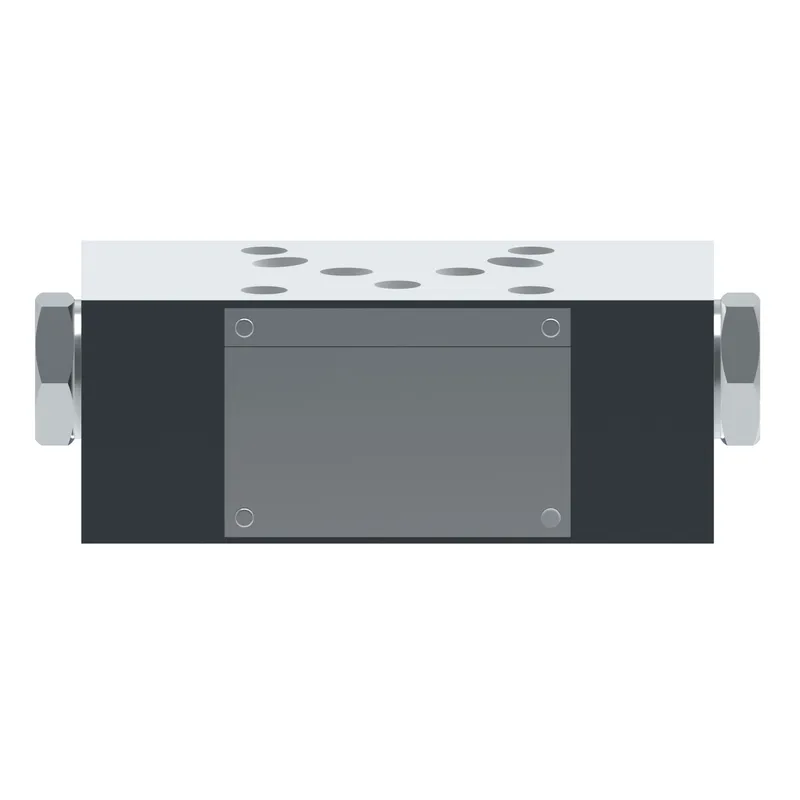

Danfoss 02-149316

DGMPC 5 DABM DBAM 30, DGMPC5DABMDBAM30

MPN: 02-149316
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-149316?

Danfoss DGMPC 5 DABM DBAM 30, DGMPC5DABMDBAM30, manufacturer part number 02-149316. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Pressure operated
Brand	Vickers by Danfoss
Check location	Line A
Check location dual	Line B
Cracking pressure 1 bar	2.50
Cracking pressure 1 psi	35
Cracking pressure 2 bar	2.50
Cracking pressure 2 psi	35
Decopression feature	Decompression feature
Design Series	30 Series
Flow rate upto LPM	120
Flow rate upto USGPM	32.0
Fluid Cleanliness	19/17/14 micron
Fluid compatibility	Petroleum oils
Function	Check in line A, pilot operated from line B
Function dual	Check in line B, pilot operated from line A
Interface	ISO4401-05
Maximum pressure upto bar	315
Maximum pressure upto psi	4500
Model Code 1	DGMPC5DABMDBAM30
Performance	Standard
Port operated upon	A cylinder port
Product height in	1.970
Product height mm	50.038
Product length in	5.820
Product length mm	147.828
Product width in	2.740
Product width mm	69.596
Seal type	Viton
Special features	None
Valve Mount Type	Subplate/manifold mounted
Valve type	PO check valve
Working temp max C	50
Working temp max F	120
Working temp min C	20
Working temp min F	70

02-149316: frequently asked questions

When can 02-149316 be shipped?

02-149316 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-149316 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-149316 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-149316, subject to availability and destination.
