Danfoss 02-149005

Industrial valve

MPN: 02-149005
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-149005?

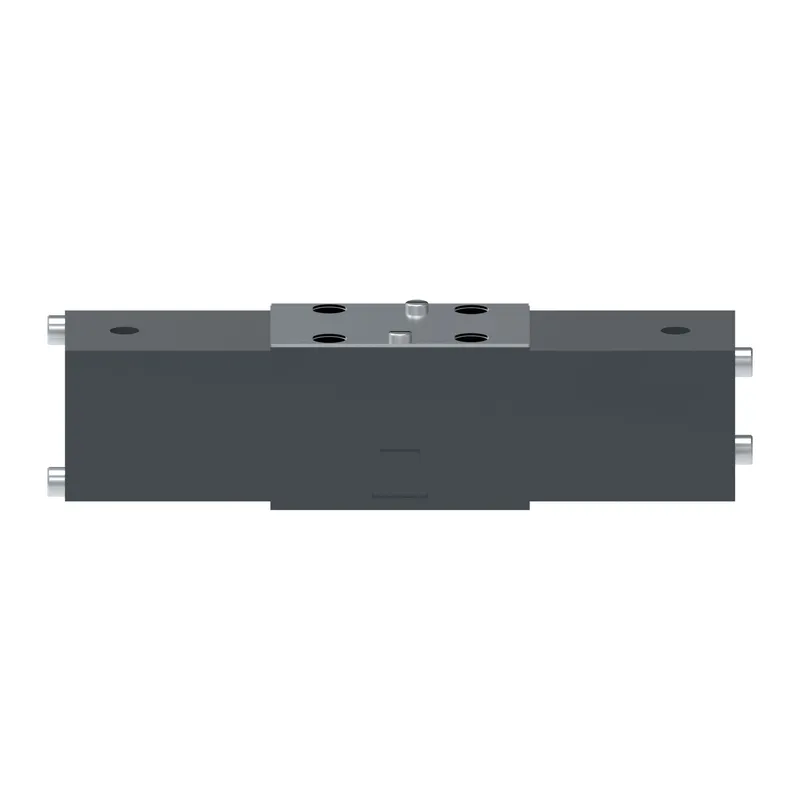

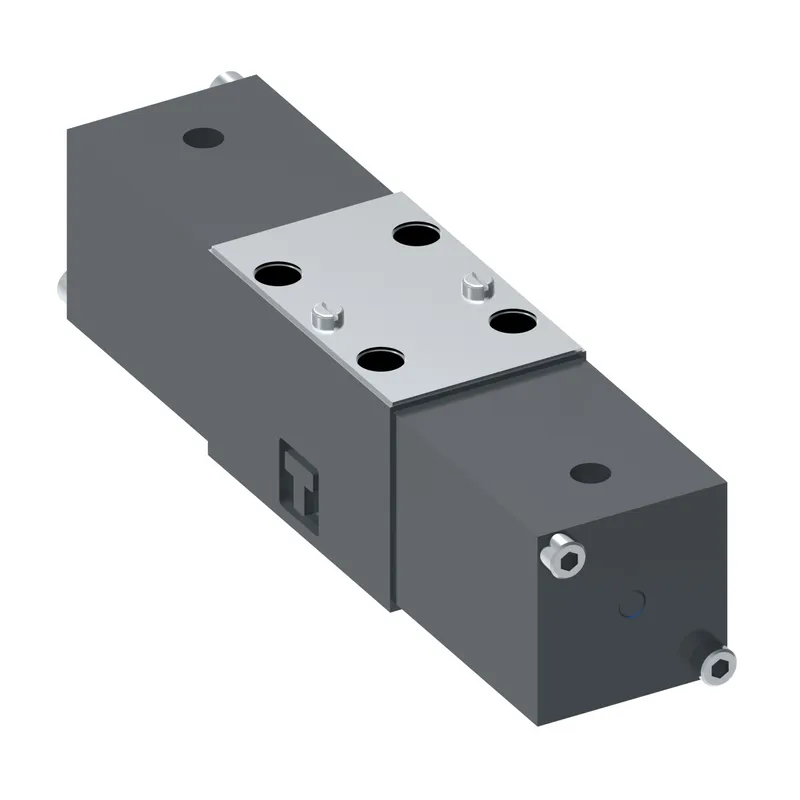

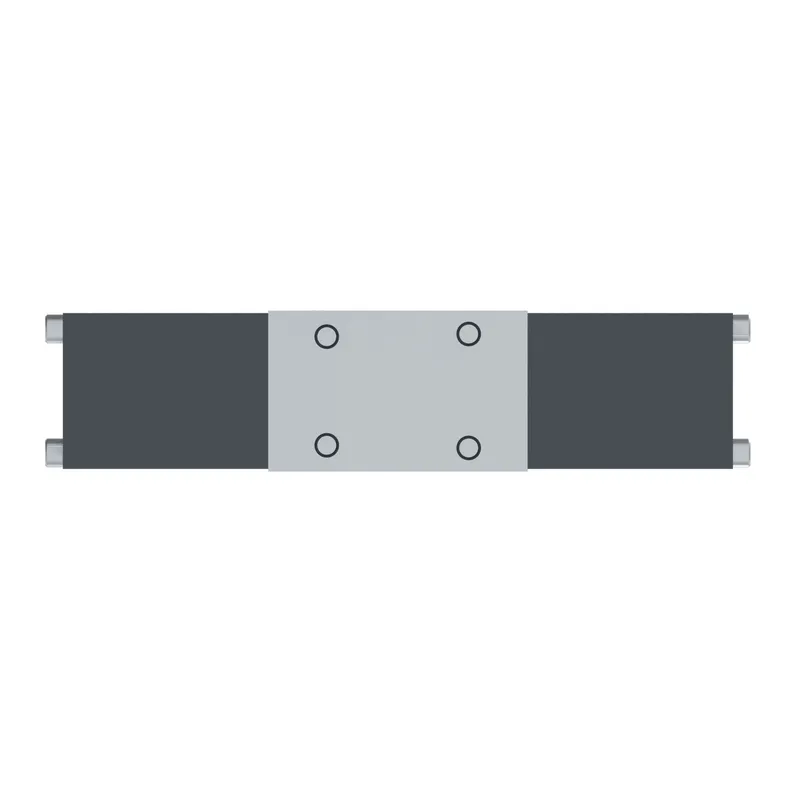

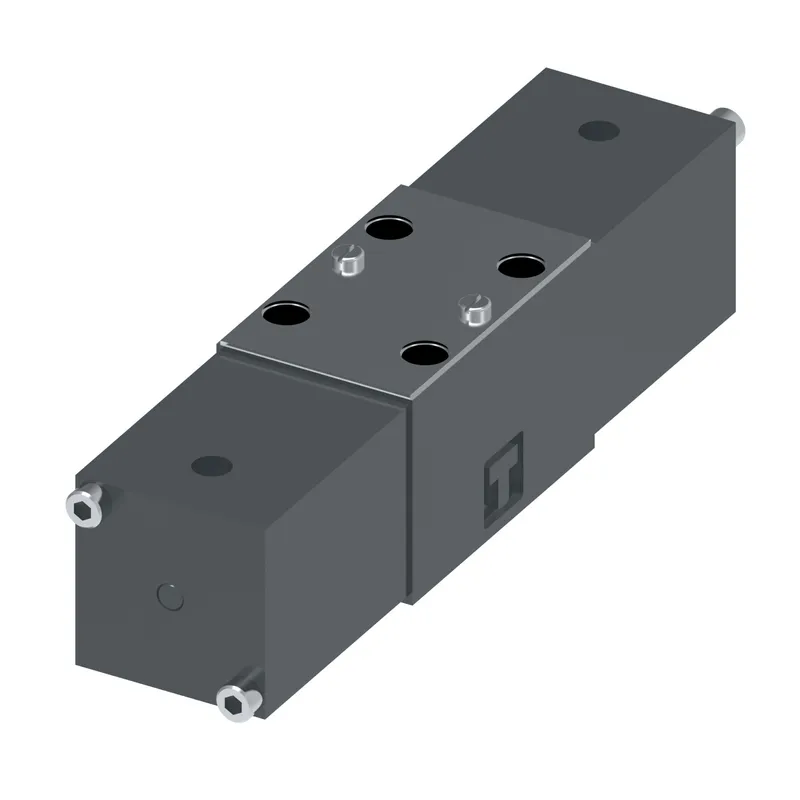

Danfoss DG18V-3-6C-B-60, DG18V36CB60, manufacturer part number 02-149005. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Air operated
Brand	Vickers by Danfoss
Coil Rating	None
Design Series	60 Series
Electrical Connection	None
Flow rate upto GPM	20.0
Flow rate upto LPM	75.0
Fluid Cleanliness	19/17/14 micron
Fluid compatibility	Petroleum oils
Indicator Light	No
Interface	ISO4401-03
Manual override	Operator end only
Model Code 1	DG18V36CB60
Performance	Standard performance
Pilot Source Thread	1/8" BSP threads
Pressure rating BAR	350
Pressure rating PSI	5000
Product height in	1.960
Product length in	5.770
Product length mm	146.558
Product width in	1.810
Product width mm	45.974
Seal type	WATER GLYCOL
Solenoid Energising ID	None
Special features	None
Spool Position Monitor	No
Spool Type	Spool 6
Spring Arrangement	Spring centred
Stage	Single stage
Surge Suppr Damper	No
Tank port rating BAR	100.0
Tank port rating PSI	1450
Valve Mount Type	Subplate/manifold mounted
Valve type	Directional control valve
Working temp max C	65
Working temp max F	150
Working temp min C	-18
Working temp min F	0
