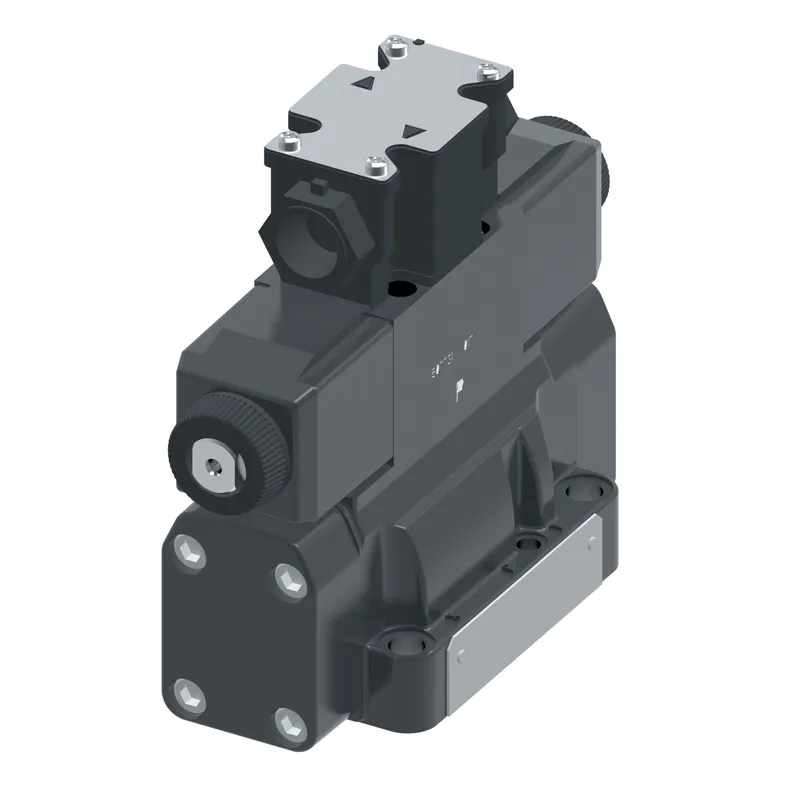

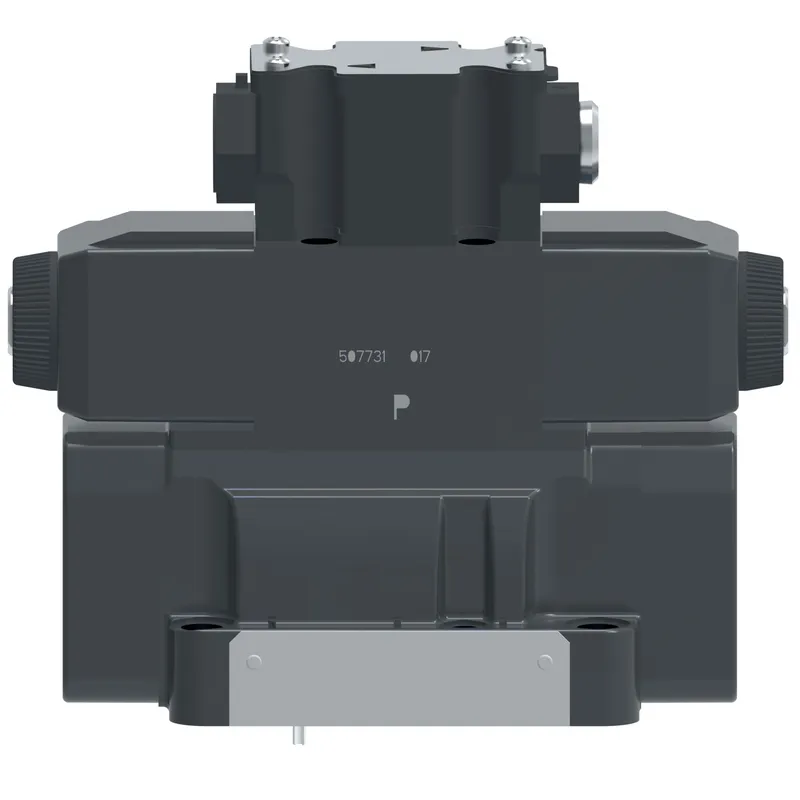

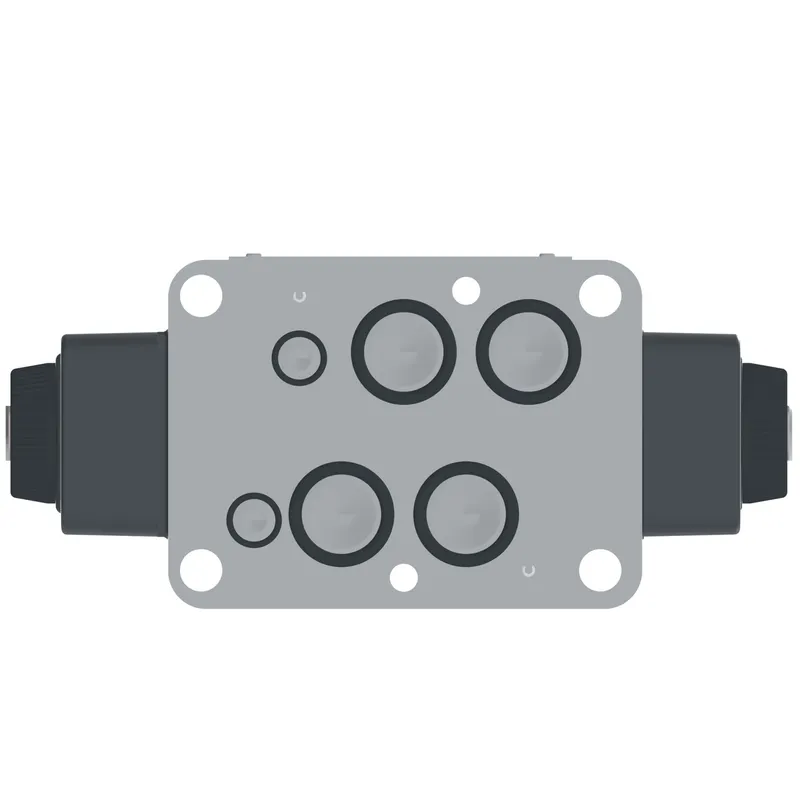

Danfoss 02-148824

DG5S4 042N T M FW B5 60, DG5S4042NTMFWB560

MPN: 02-148824
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-148824?

Danfoss DG5S4 042N T M FW B5 60, DG5S4042NTMFWB560, manufacturer part number 02-148824. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Pilot operated
Brand	Vickers by Danfoss
Coil Rating	110 VAC 50Hz/120 VAC 60Hz
Design Series	60 Series
Electrical Connection	1/2 in NPT flying lead
Ext pilot pressure	Internal
Flow rate upto GPM	227.0
Flow rate upto LPM	60.0
Fluid Cleanliness	19/17/14 micron
Fluid compatibility	Petroleum oils
Indicator Light	No
Int pilot drain	Internal
Interface	ISO4401-07
Manual override	Plain
Model Code 1	DG5S4042NTMFWB560
Pressure rating BAR	210
Pressure rating PSI	3000
Product height in	6.510
Product height mm	165.354
Product length in	8.480
Product length mm	215.392
Product width in	3.500
Product width mm	88.9
Seal type	Buna-N
Solenoid Energising ID	Standard as per ANSI B93 9
Spool Type	Spool 2
Spring Arrangement	No spring detented
Stage	Two stage
Tank port rating BAR	100.0
Tank port rating PSI	1450
Valve Mount Type	Subplate/manifold mounted
Valve type	Directional control valve
