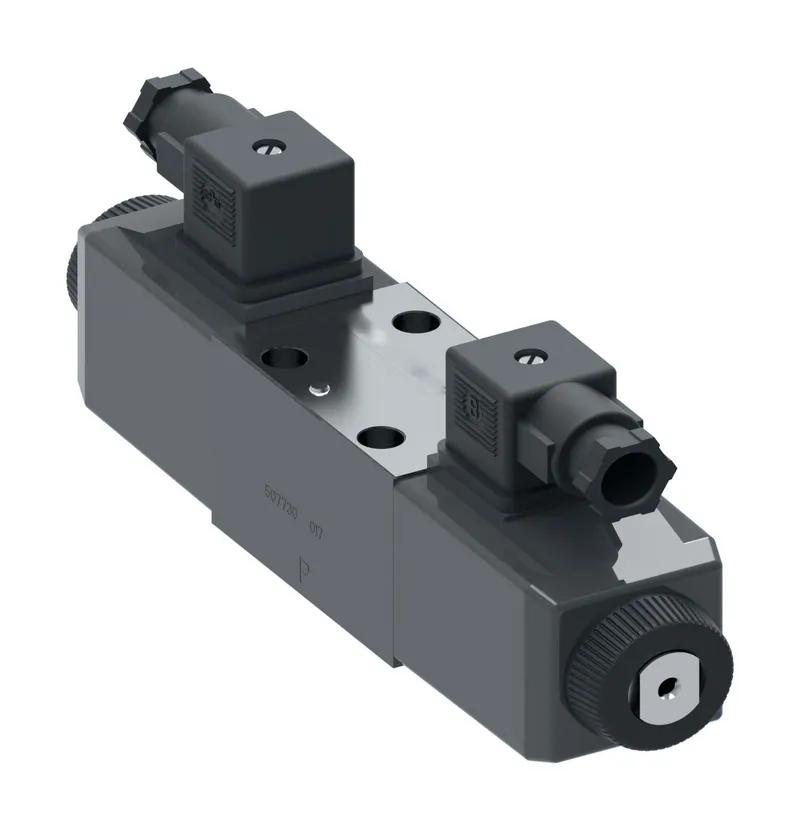

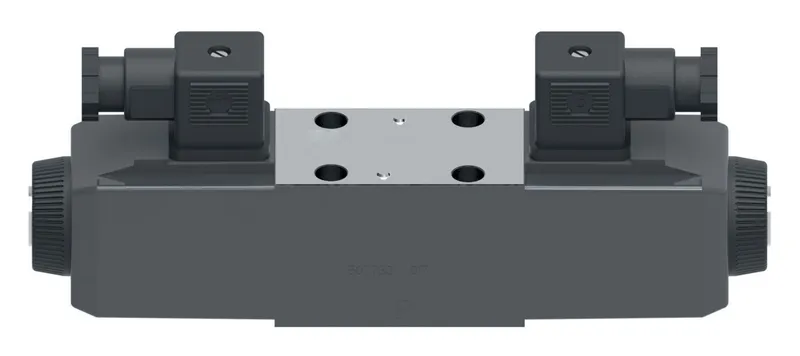

Danfoss 02-148610

KDG4V 3S 2C19N M U1 H5 60, KDG4V3S2C19NMU1H560

MPN: 02-148610
Category: Manifold directional control valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-148610?

Danfoss KDG4V 3S 2C19N M U1 H5 60, KDG4V3S2C19NMU1H560, manufacturer part number 02-148610. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A Port flow LPM	19.00
A Port flow USGPM	5.00
Actuation Type	Solenoid controlled
B Port flow LPM	19.00
B Port flow USGPM	5.00
Brand	Vickers by Danfoss
Build orientation	Standard as per ANSI B93 9
Build type	Spring centered
Coil voltage	24 Volt DC
Command input	None
Communication protocol	None
Design Series	60 Series
Electrical Connection	ISO4400 with fitted plugs
Feedback sensor	No
Fluid Cleanliness	17/15/12 micron
Fluid compatibility	Antiwear hydraulic oils and non alkyl-based Phosphate Esters
Interface	ISO4401-03/NFPA D03/CETOP 3/NG06
Manual override	Plain
Maximum pressure BAR	350
Maximum pressure PSI	5000
Metering	Meter in / meter out
Model Code 1	KDG4V3S2C19NMU1H560
On board electronics	No
Performance	Standard
Product height in	3.580
Product height mm	90.932
Product length in	8.640
Product length mm	219.456
Product width in	1.810
Product width mm	45.974
ProFX compatible	No
Reducer module	No
Reverse flow check	No
Seal type	Viton
Special features	None
Spool Type	ISO4401-10/NFPA D10/CETOP 10/NG32
Stage	Single stage
Symmetric flow	Yes
Tank port rating BAR	100
Tank port rating PSI	1450
Valve Mount Type	Subplate
Valve type	Proportional directional
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4

02-148610: frequently asked questions

When can 02-148610 be shipped?

02-148610 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-148610 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-148610 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-148610, subject to availability and destination.
