Danfoss 02-148494

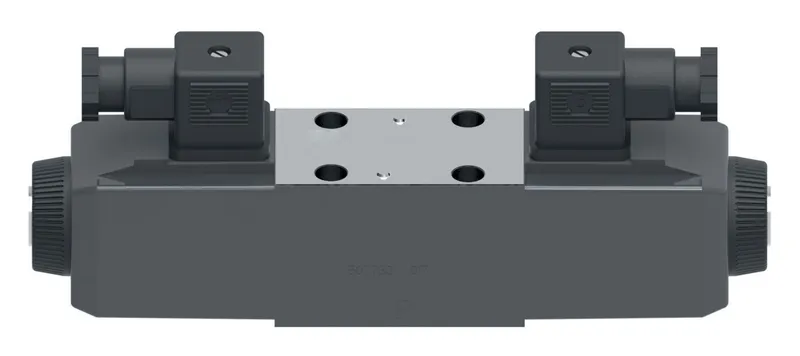

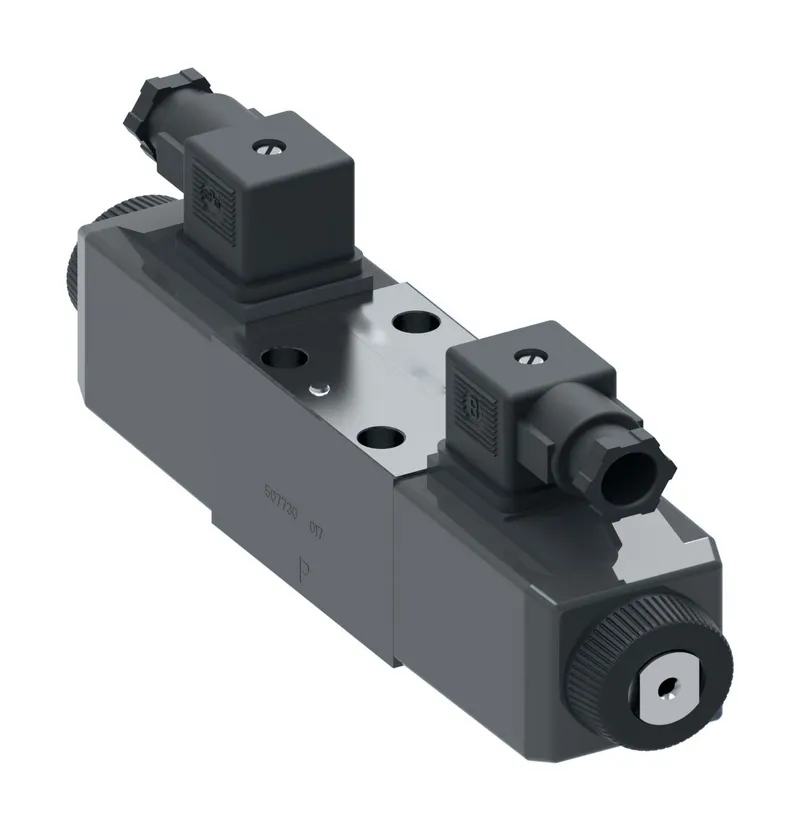

KDG4V-3S-2C19S-M-U1-H5-6 0, KDG4V3S2C19SMU1H560

MPN: 02-148494
Category: Manifold directional control valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-148494?

Danfoss KDG4V-3S-2C19S-M-U1-H5-6 0, KDG4V3S2C19SMU1H560, manufacturer part number 02-148494. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A Port flow LPM	19.00
A Port flow USGPM	5.00
Actuation Type	Solenoid controlled
B Port flow LPM	19.00
B Port flow USGPM	5.00
Brand	Vickers by Danfoss
Build orientation	Standard as per ANSI B93 9
Build type	Spring centered
Coil voltage	24 Volt DC
Command input	None
Communication protocol	None
Design Series	60 Series
Electrical Connection	ISO4400 with fitted plugs
Feedback sensor	No
Fluid Cleanliness	17/15/12 micron
Fluid compatibility	Antiwear hydraulic oils and non alkyl-based Phosphate Esters
Interface	ISO4401-03/NFPA D03/CETOP 3/NG06
Manual override	Plain
Maximum pressure BAR	350
Maximum pressure PSI	5000
Metering	Meter out
Model Code 1	KDG4V3S2C19SMU1H560
On board electronics	No
Performance	Standard
Product height in	3.580
Product height mm	90.932
Product length in	8.640
Product length mm	219.456
Product width in	1.810
Product width mm	45.974
ProFX compatible	No
Reducer module	No
Reverse flow check	No
Seal type	Viton
Special features	None
Spool Type	ISO4401-10/NFPA D10/CETOP 10/NG32
Stage	Single stage
Symmetric flow	Yes
Tank port rating BAR	100.0
Tank port rating PSI	1450
Valve Mount Type	Subplate
Valve type	Proportional directional
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
