Danfoss 02-148182

Industrial valve

MPN: 02-148182
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-148182?

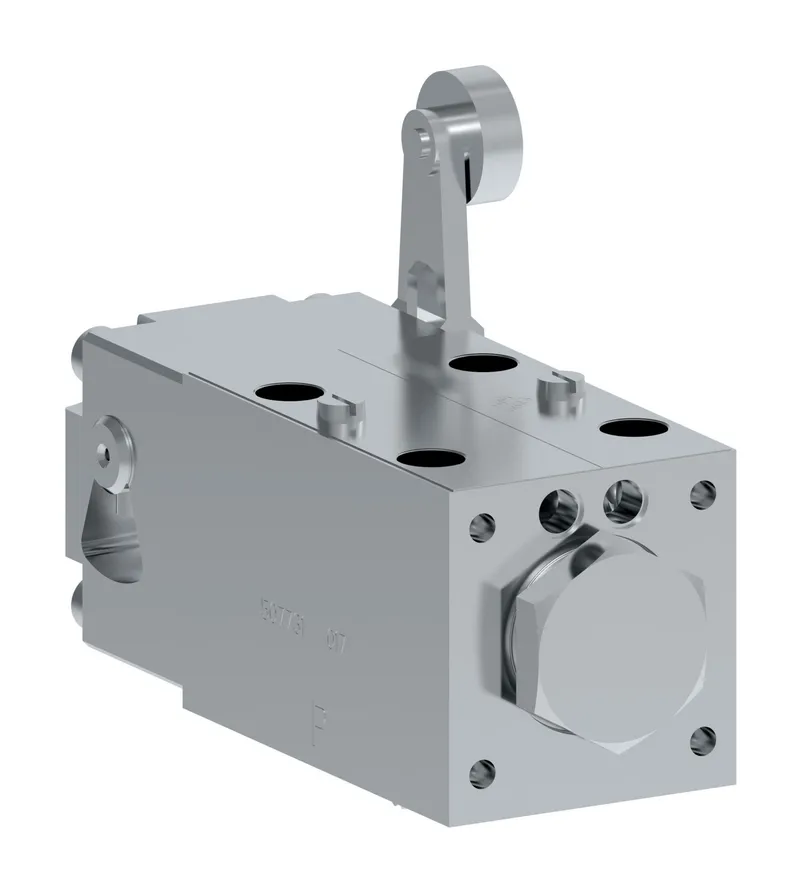

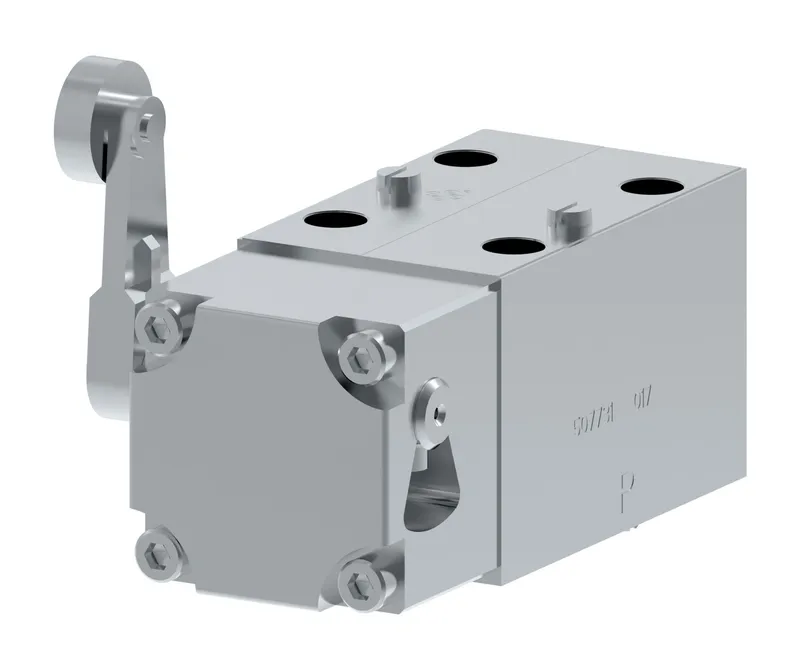

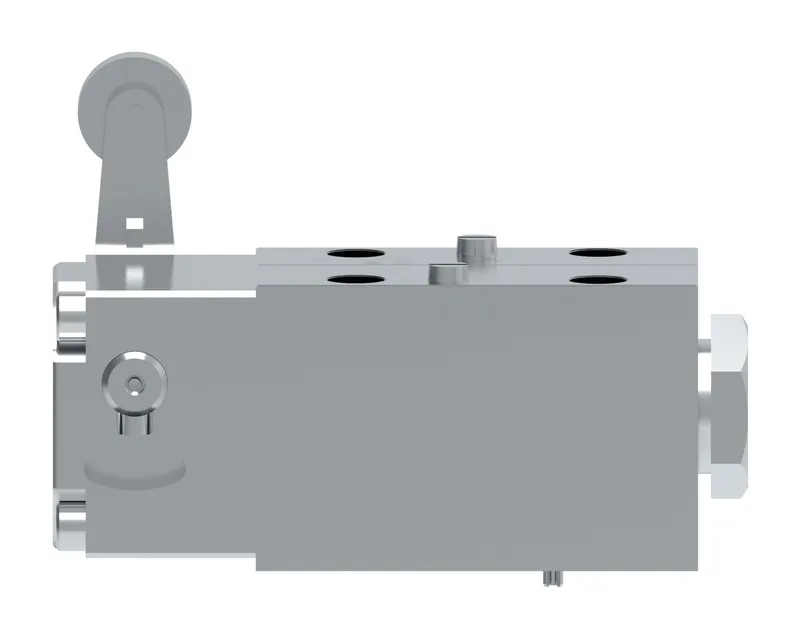

Danfoss DG20V 3 9A 60 EN415, DG20V39A60EN415, manufacturer part number 02-148182. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Roller cam operated
Brand	Vickers by Danfoss
Coil Rating	None
Design Series	60 Series
Electrical Connection	None
Flow rate upto GPM	20.0
Flow rate upto LPM	75.0
Fluid Cleanliness	19/17/14 micron
Fluid compatibility	Petroleum oils
Indicator Light	No
Interface	ISO4401-03
Manual override	None
Model Code 1	DG20V39A60EN415
Performance	Standard performance
Pressure rating BAR	350
Pressure rating PSI	5000
Product height in	3.110
Product length in	4.600
Product length mm	116.840
Product width in	2.560
Product width mm	65.024
Seal type	WATER GLYCOL
Solenoid Energising ID	None
Special features	Special 9A spool, proportional body, cam assembled 180 deg from standard with pivot shaft cover
Spool Position Monitor	No
Spool Type	Spool 9
Spring Arrangement	Spring offset end to end
Stage	Single stage
Surge Suppr Damper	No
Tank port rating BAR	7.0
Tank port rating PSI	100
Valve Mount Type	Subplate/manifold mounted
Valve type	Directional control valve
Working temp max C	65
Working temp max F	150
Working temp min C	-18
Working temp min F	0
