Danfoss 02-147962

Industrial valve

MPN: 02-147962
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-147962?

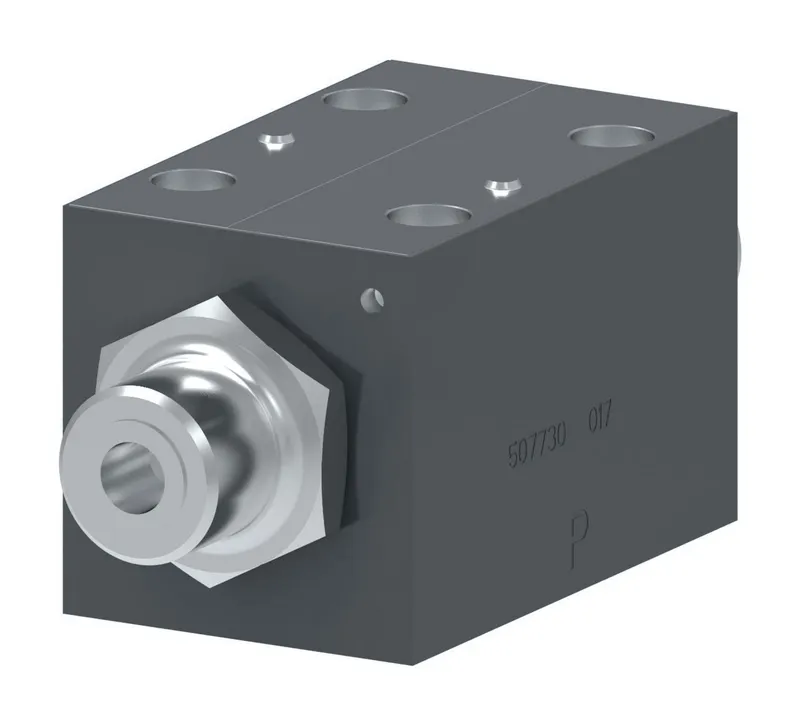

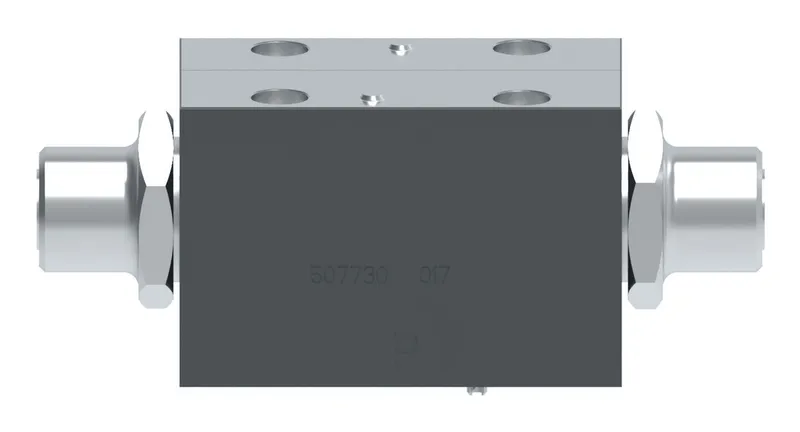

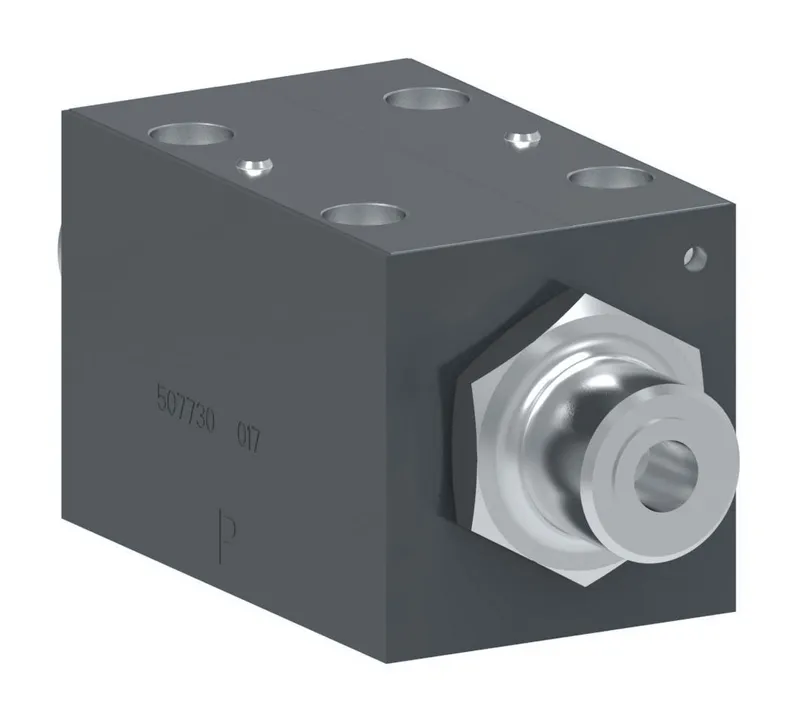

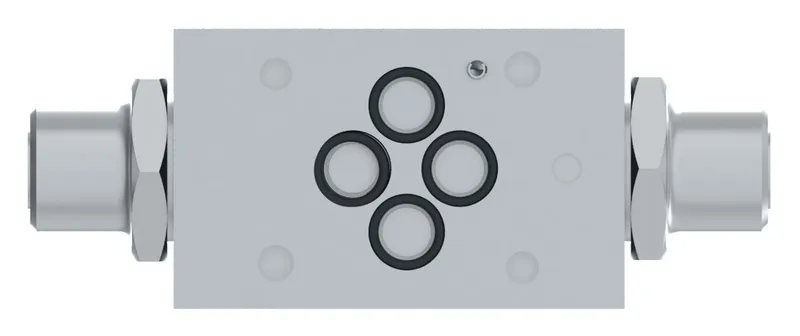

Danfoss DG3V-3-6C-7-B-60, DG3V36C7B60, manufacturer part number 02-147962. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Hydraulic operated
Brand	Vickers by Danfoss
Coil Rating	None
Design Series	60 Series
Electrical Connection	None
Flow rate upto GPM	10.0
Flow rate upto LPM	38.0
Fluid Cleanliness	19/17/14 micron
Fluid compatibility	Petroleum oils
Indicator Light	No
Interface	ISO4401-03
Manual override	None
Model Code 1	DG3V36C7B60
Performance	High performance
Pressure rating BAR	350
Pressure rating PSI	5000
Seal type	WATER GLYCOL
Solenoid Energising ID	None
Special features	None
Spool Position Monitor	No
Spool Type	Spool 6
Spring Arrangement	Spring centred
Stage	Single stage
Surge Suppr Damper	No
Tank port rating BAR	210.0
Tank port rating PSI	3000
Thread Pilot Drain	SAE internal straight threads
Valve Mount Type	Subplate/manifold mounted
Valve type	Directional control valve
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
