Danfoss 02-147367

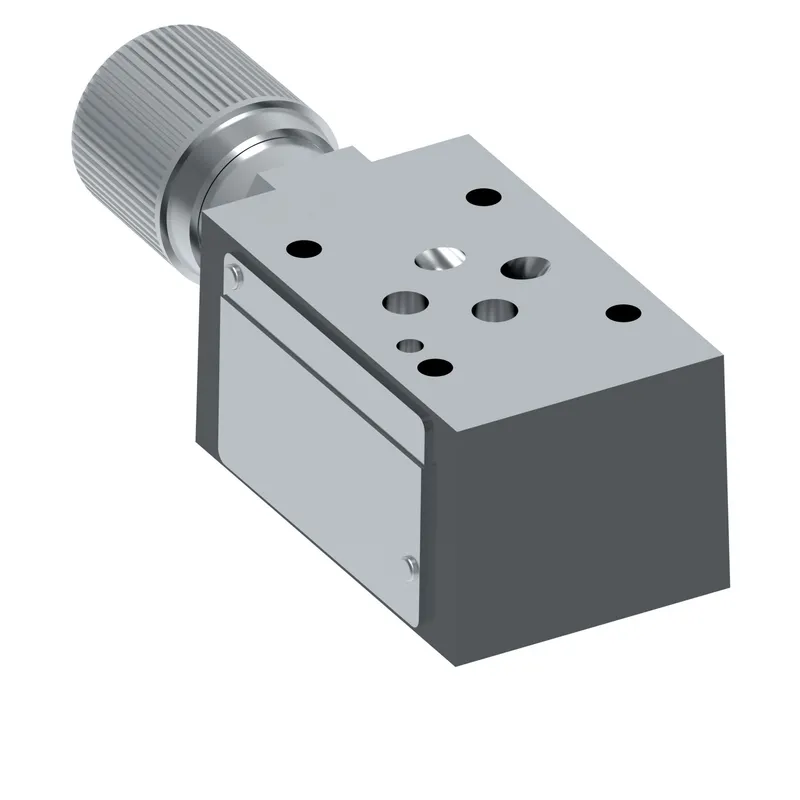

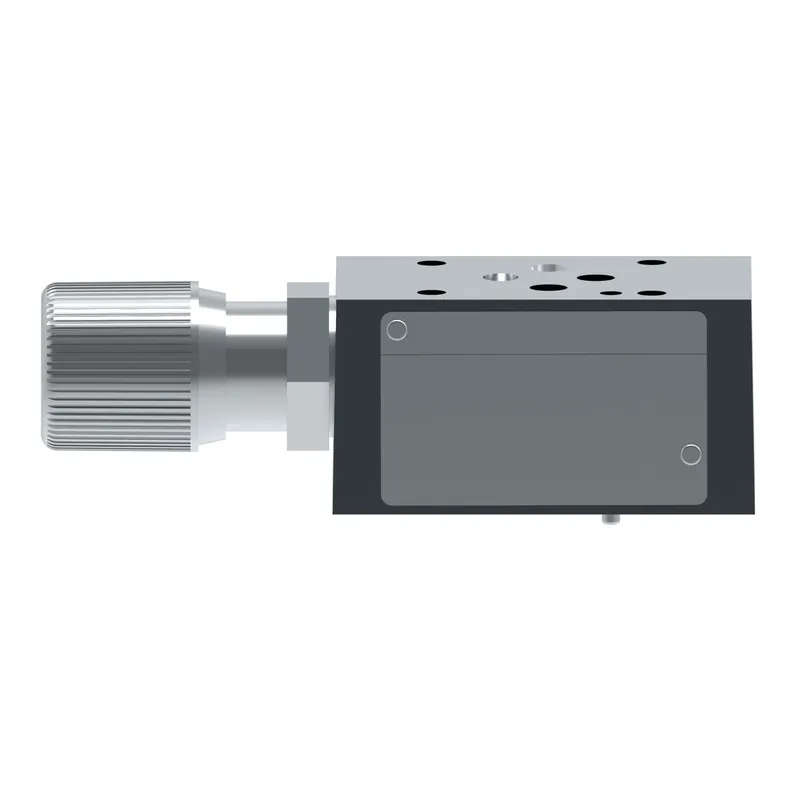

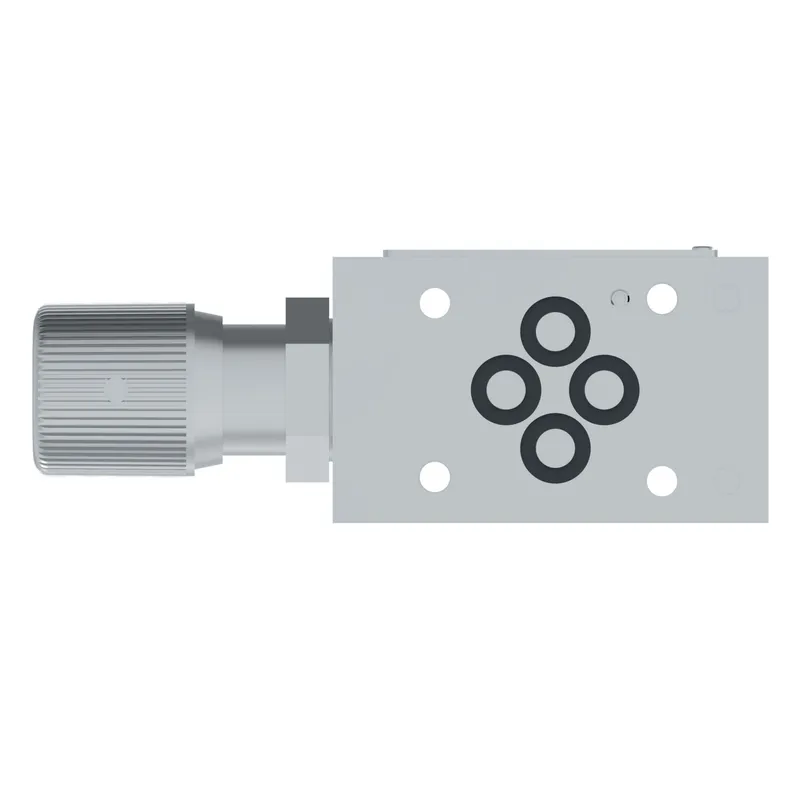

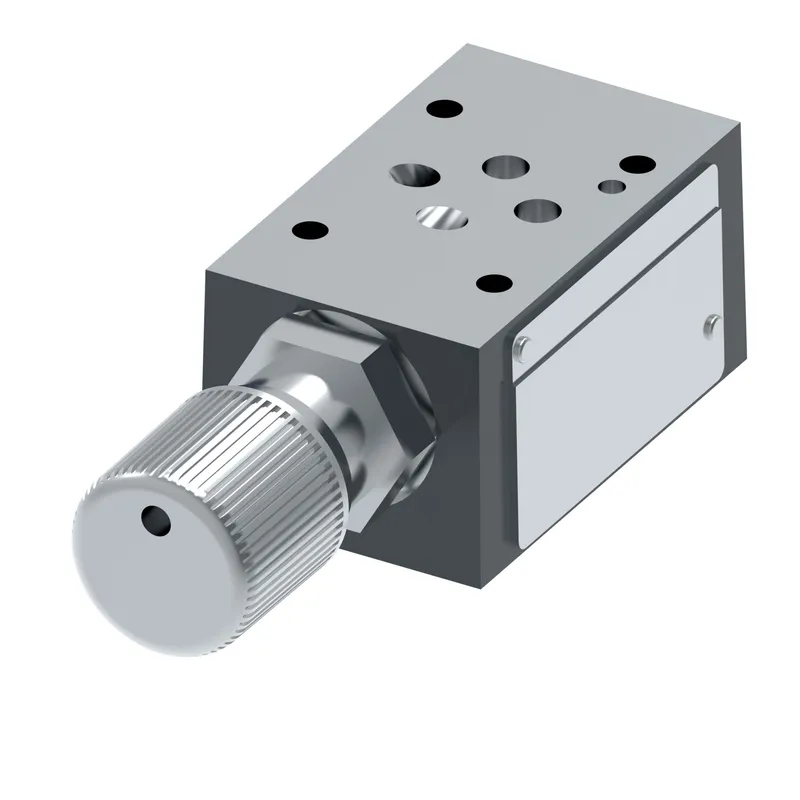

DGMFN 3 Y A1H 41, DGMFN3YA1H41

MPN: 02-147367
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-147367?

Danfoss DGMFN 3 Y A1H 41, DGMFN3YA1H41, manufacturer part number 02-147367. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Pressure operated
Adjustment type	Handknob
Brand	Vickers by Danfoss
Control type 1	Fine control
Design Series	41 Series
Direction of flow	Meter-out control
Flow rate upto LPM	60
Flow rate upto USGPM	16.0
Fluid Cleanliness	19/17/14 micron
Fluid compatibility	Petroleum oils
Interface	ISO4401-03
Location control function 1	Line A
Maximum pressure upto bar	315
Maximum pressure upto psi	4500
Model Code 1	DGMFN3YA1H41
Performance	Standard
Product height in	1.570
Product height mm	39.878
Product length in	5.200
Product length mm	132.080
Product width in	1.870
Product width mm	47.498
Seal type	Viton
Special features	None
Valve Mount Type	Subplate/manifold mounted
Valve type	Flow control valve
Working temp max C	80
Working temp max F	176
Working temp min C	-20
Working temp min F	-4

02-147367: frequently asked questions

When can 02-147367 be shipped?

02-147367 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-147367 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-147367 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-147367, subject to availability and destination.
