Danfoss 02-147308

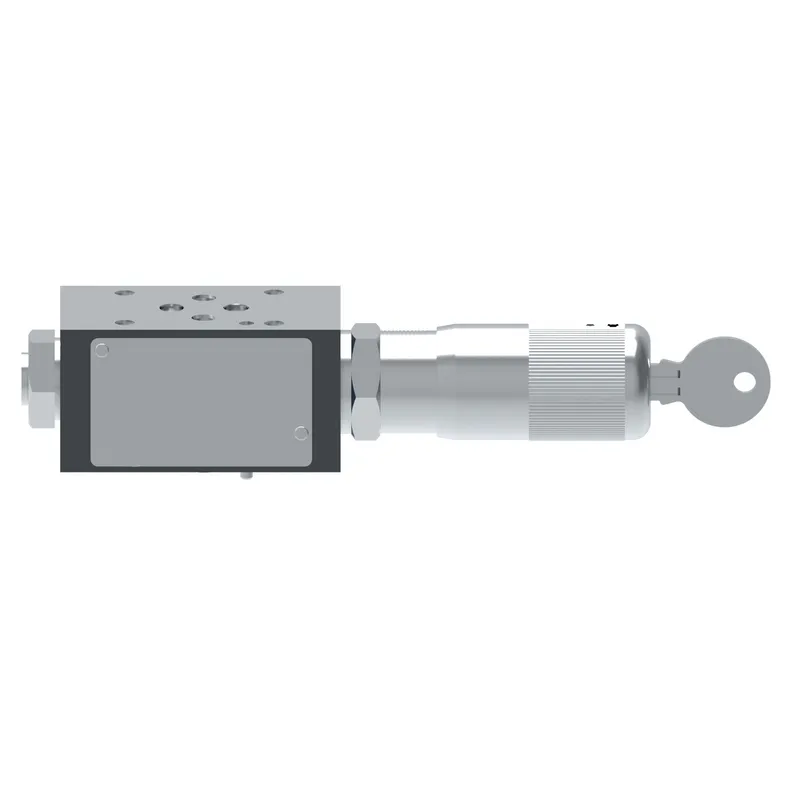

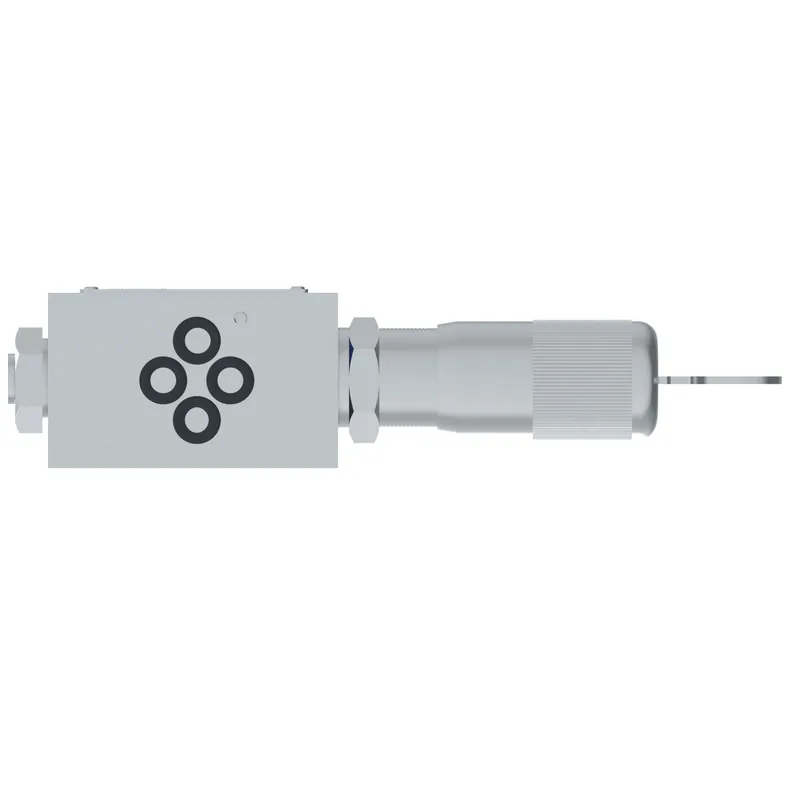

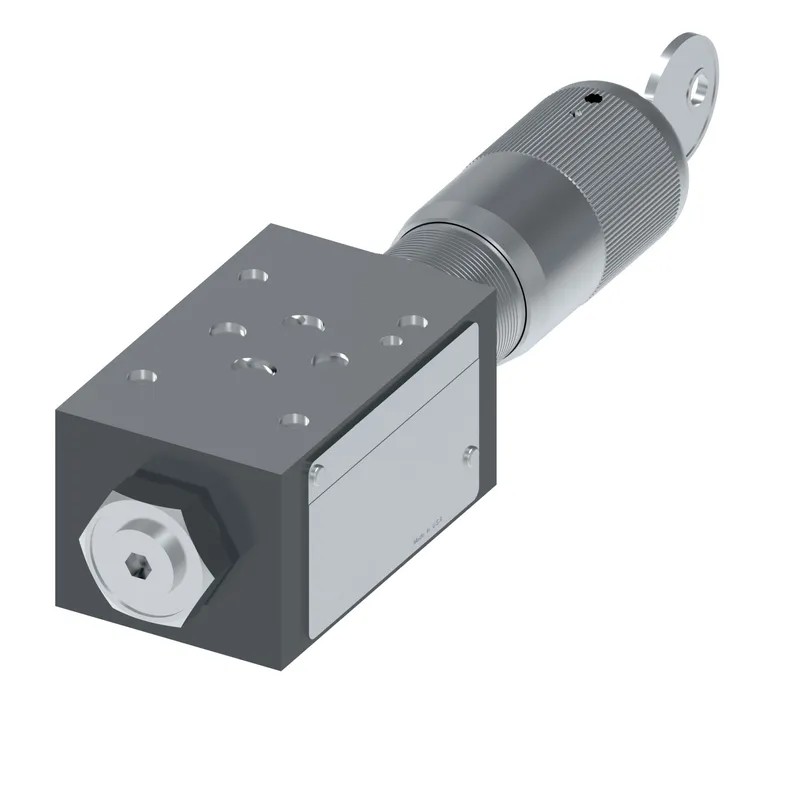

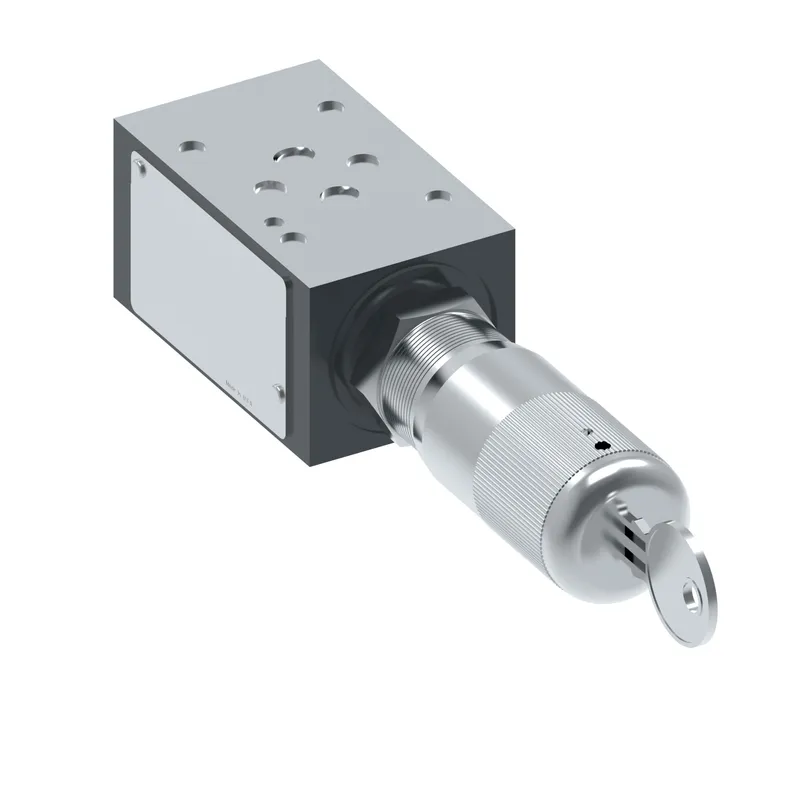

DGMX2 3 PP BK S 40, DGMX23PPBKS40

MPN: 02-147308
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-147308?

Danfoss DGMX2 3 PP BK S 40, DGMX23PPBKS40, manufacturer part number 02-147308. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Pressure operated
Adjustment location	Adjuster - B port end of valve
Adjustment type	Micrometer with keylock
Brand	Vickers by Danfoss
Design Series	40 Series
Flow rate upto LPM	60
Flow rate upto USGPM	16.0
Fluid Cleanliness	19/17/14 micron
Fluid compatibility	Petroleum oils
Function ports	Reducing line P, pilot line P
Gauge Port Thread Type	SAE 4 (7/16"-20 UNF-2B)
Interface	ISO4401-03
Maximum pressure upto bar	315
Maximum pressure upto psi	4500
Model Code 1	DGMX23PPBKS40
Performance	Standard
Pressure adjustment range	3.5-70 bar (51-1000 psi)
Product height in	2.360
Product height mm	59.944
Product length in	5.830
Product length mm	148.082
Product width in	2.820
Product width mm	71.628
Seal type	Viton
Special features	None
Valve Mount Type	Subplate/manifold mounted
Valve type	Reducing-relieving overlapped
Working temp max C	80
Working temp max F	176
Working temp min C	-20
Working temp min F	-4

02-147308: frequently asked questions

When can 02-147308 be shipped?

02-147308 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-147308 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-147308 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-147308, subject to availability and destination.
