3525V35A12 86DC 22R, 3525V35A12 86DC 22R
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Industrial vane pumps |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 02-143654-DCR be shipped?
02-143654-DCR is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 02-143654-DCR in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 02-143654-DCR and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-143654-DCR, subject to availability and destination.
Danfoss 3525V35A12 86DC 22R, 3525V35A12 86DC 22R, manufacturer part number 02-143654-DCR. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| DESIGN NO | DESIGN NO |
| IPM FRAME SIZE | 3525V Double Pump |
| OUTLET POST FRM CVR END | OUTLET 1: 90° CW FROM INLET, OUTLET 2: 45° CW FROM INLET |
| PORT CONNECTION | INLET: 4 BOLT FLANGE, OUTLET 1: 4 BOLT FLANGE, OUTLET 2: 4 BOLT FLANGE |
| PUMP TYPE | VANE PUMP |
| ROTATION FROM SHAFT END | CLOCKWISE |
| SEALS TYPE | STANDARD SEAL |
| Series | SERIES DESIGNATION |
| SHAFT | 86- 5/16 SQUARE KEY |
| PORT THREAD TYPE | INCH THREAD PORT CONNECTION |
| RING CAPACITY OUTLET 1 | 35 GPM |
| RING CAPACITY OUTLET 2 | 12 GPM |
| MOUNTING | FLANGE MOUNT |
| Model Code 1 | 3525V35A12 86DC 22R |
More Danfoss (Drives) parts
Available on request3525V35A12 86AA22R, 3525V35A12 86AA22RAvailable on request3525V35A12 86AC 22R, 3525V35A12 86AC 22RAvailable on request3525V35A12 86CC22R, 3525V35A12 86CC22RAvailable on request3525V35A12 86DA22R, 3525V35A12 86DA22RAvailable on requestV2010 1F12 B5 B1CC 12, V2010 1F12 B5 B1CC 12

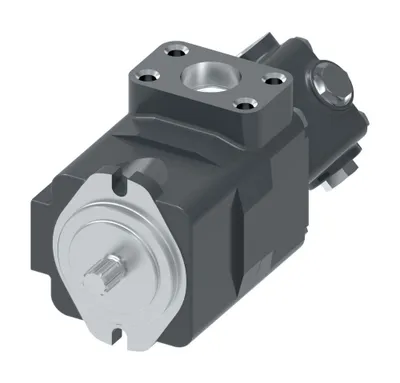

Available on requestV20101F12B5B1AA12, V20101F12B5B1AA12Available on requestV20101F12B5B1CC12, V20101F12B5B1CC12
