Home / Danfoss (Drives) / PVH and PVE open-circuit piston pumps / Danfoss 02-143466

Danfoss (Drives)

Danfoss 02-143466

PVH057R02AA10A14000000100200010A

MPN: 02-143466
Category: PVH and PVE open-circuit piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

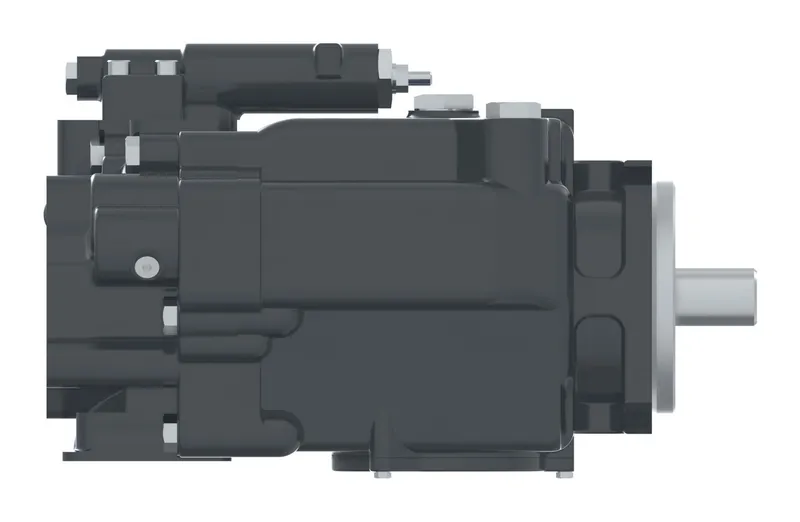

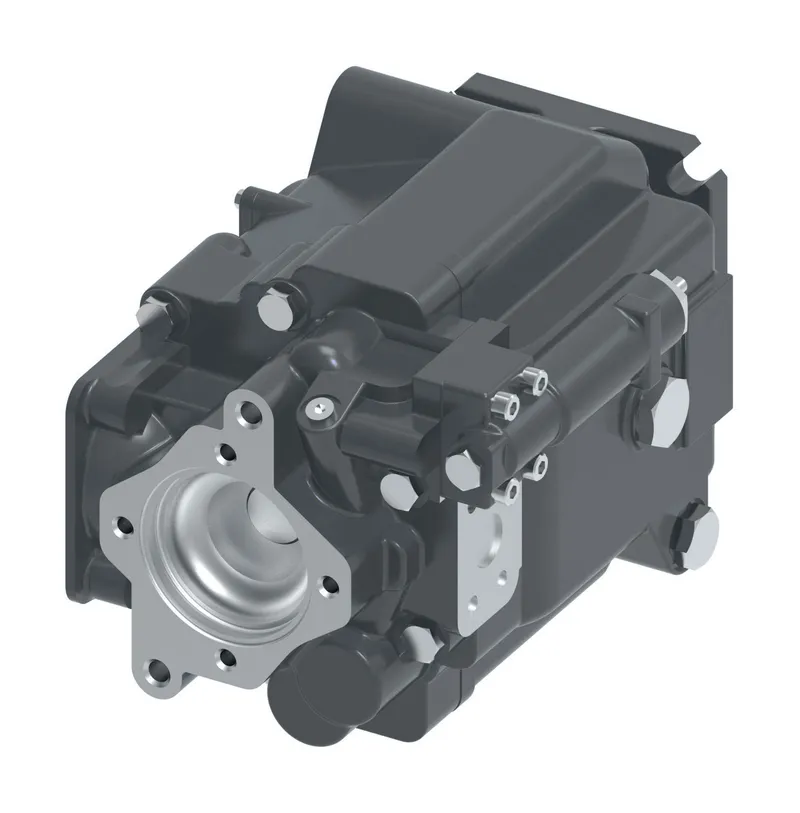

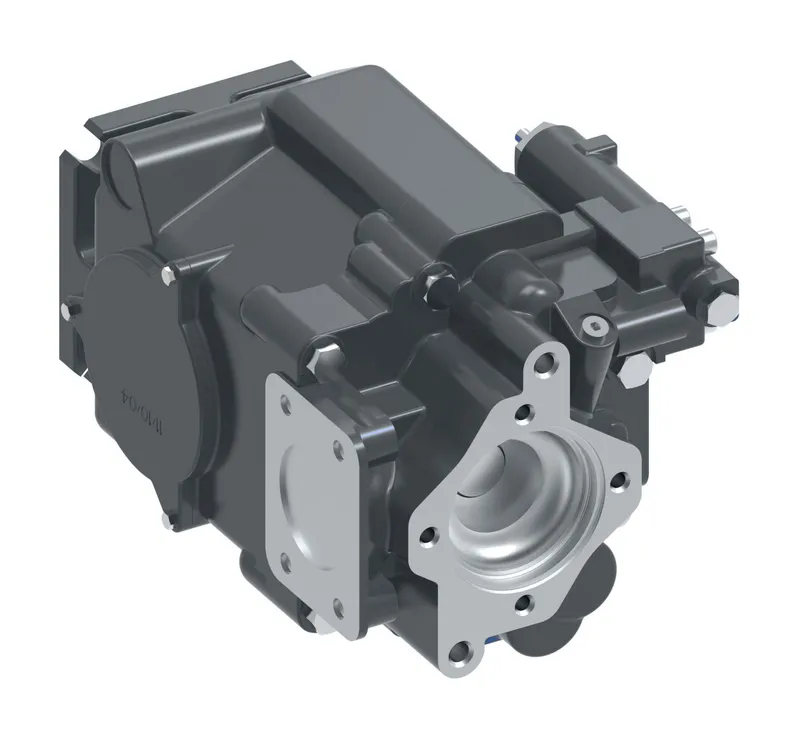

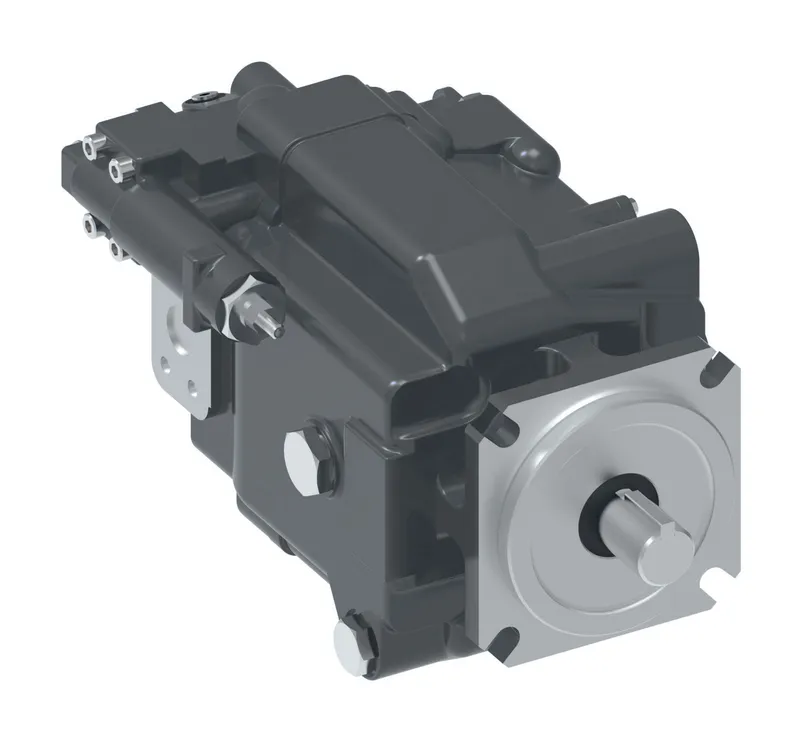

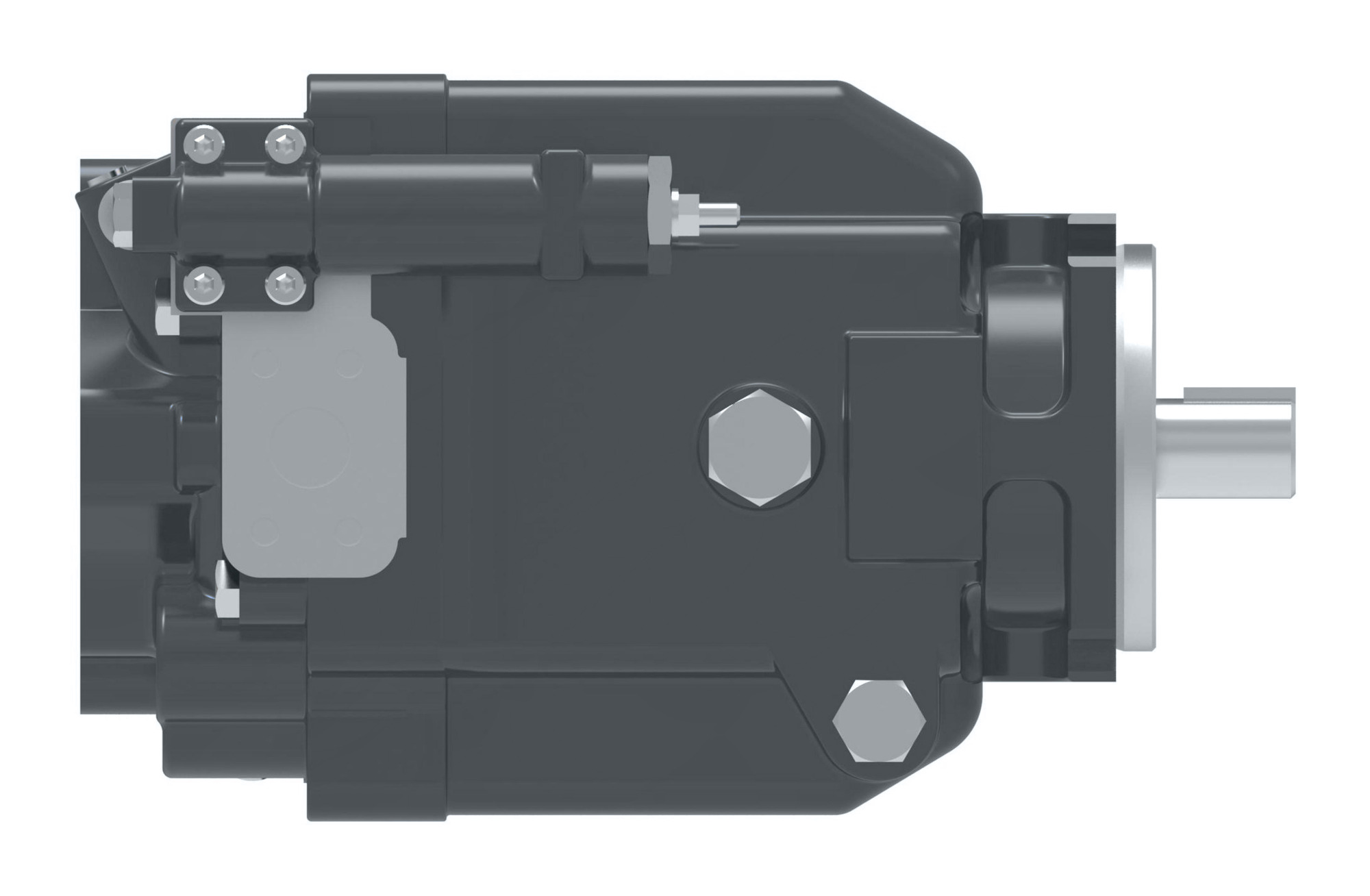

What is the Danfoss 02-143466?

Danfoss PVH057R02AA10A14000000100200010A, manufacturer part number 02-143466. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Aux mount output shaft	NO AUXILIARY MOUNTING OR OUTPUT SHAFT
CODE TITLE	VICKERS PRESSURE COMPENSATED/PRESSURE FLOW COMPENSATED OPEN CIRCUIT PISTON PUMP
Control special features	NO CONTROL SPECIAL FEATURES
Controller type	PRESSURE COMPENSATOR
Customer identification	NONE - MARK ASSEMBLY NUMBER, COMPLETE MODEL CODE AND BUILD DATE CODE ON PLATE
Design code	FIRST DESIGN
Diagnostic pressure ports	NO DIAGNOSTIC PRESSURE PORT
Displacement	57,4 CM3/R [3.50 IN3/R]
Drain port size location	.750-16 UNF-2B SAE O-RING PORT - BOTTOM (TOP PLUGGED)
Flow comp unload valve	NO FLOW COMPENSATION SETTING OR UNLOAD VALVE STANDBY
Front mounting input shaft	4 BOLT C (SAE J744-127-4) WITH 14T 12/24 DP SPLINED SHAFT, 56.0 [2.20] SHAFT EXTENSION
Input shaft rotation	RIGHT-HAND ROTATION (CW) RIGHT SIDE SUCTION PORT, LEFT SIDE PRESSURE PORT
Main ports size location	SIDE PORTS; SUCTION - 2.000 SAE 4-BOLT SPLIT FLANGE PORT STANDARD PRESSURE SERIES (CODE 61) WITH 1/2-13 UNC-2B THREADS; PRESSURE- 1.000 SAE 4-BOLT SPLIT FLANGE PORT STANDARD PRESSURE SERIES (CODE 61) WITH 3/8-16 UNC-2B THREADS
Maximum displacement option	STANDARD DISPLACEMENT
Paint	BLUE PRIMER
Pressure compensator setting	136-144 BAR [1973-2089 LBF/IN2]
Shaft seal	DOUBLE, TWO-WAY SHAFT SEAL, FLUOROCARBON
Special features	NO SPECIAL FEATURES
Torque sensing other comp	NO TORQUE SENSING SETTING OR OTHER COMPENSATION

02-143466: frequently asked questions

When can 02-143466 be shipped?

02-143466 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-143466 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-143466 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-143466, subject to availability and destination.
