Danfoss 02-141305

Industrial valve

MPN: 02-141305
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-141305?

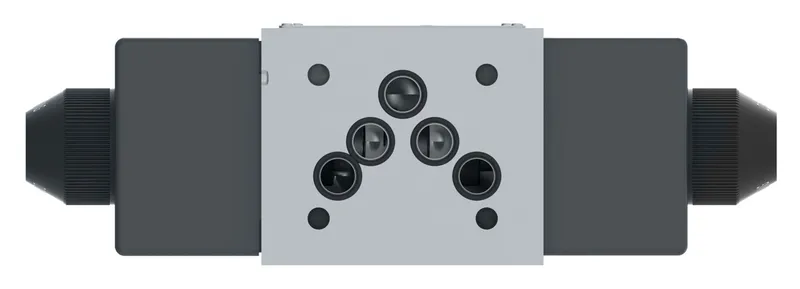

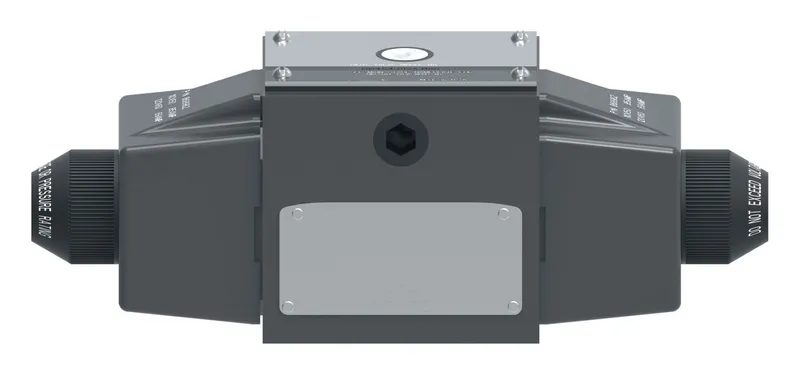

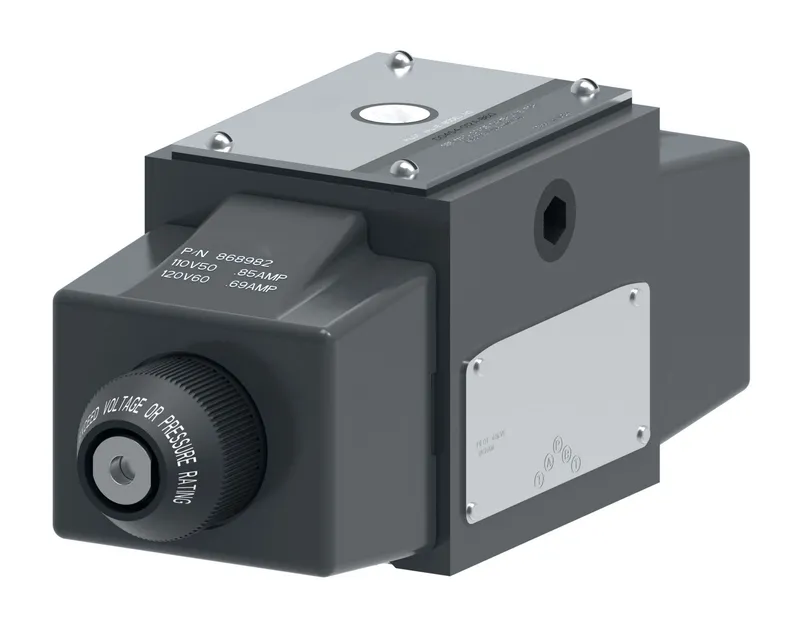

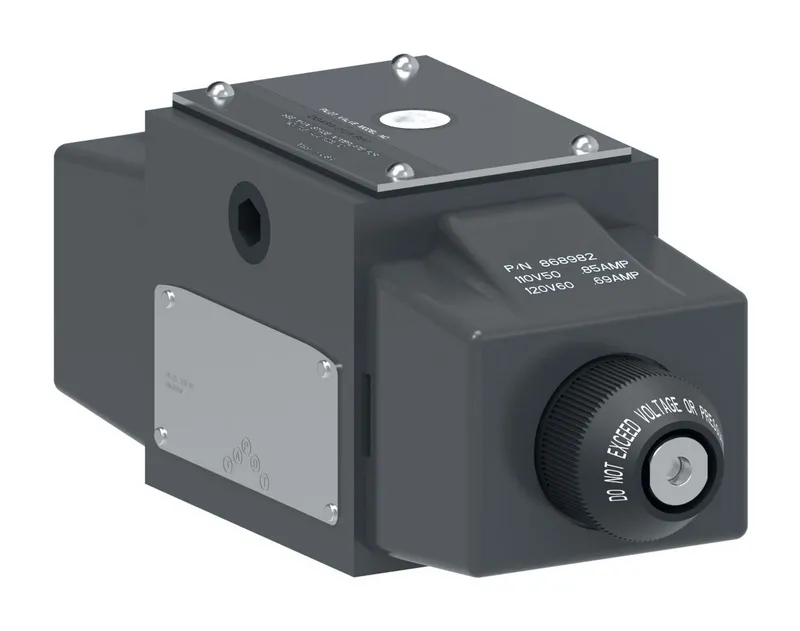

Danfoss DG4S4 016C H 60 S324, DG4S4016CH60S324, manufacturer part number 02-141305. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation type	Solenoid operated
Brand	Vickers by Danfoss
Coil Rating	24 VDC
Design Series	60 Series
Electrical connection	Flying lead coil
Energ Time	50-80 ms
Flow rate upto GPM	25.0
Flow rate upto LPM	95.0
Fluid cleanliness	20/18/15 micron
Fluid compatibility	Petroleum oils
Indicator light	No
Interface	ISO4401-05
Manual override	None
Model Code 1	DG4S4016CH60S324
Performance	Standard performance
Pressure rating Bar	250
Pressure rating PSI	3600
Product height in	3.850
Product length in	6.840
Product length mm	173.736
Product width in	2.580
Product width mm	65.532 mm
Seal type	Buna-N
Solenoid Energising ID	Standard as per ANSI B93 9
Special features	CSA approved
Spool Position Monitor	No
Spool Type	Spool 6
Spring arrangement	Spring centred, three position
Stage	Single stage
Surge Suppr Damper	No
Tank port rating BAR	70
Tank port rating PSI	1000
Valve mount type	Subplate/manifold mounted
Valve type	Directional control valve
Working temp max C	50
Working temp max F	122
Working temp min C	20
Working temp min F	70
