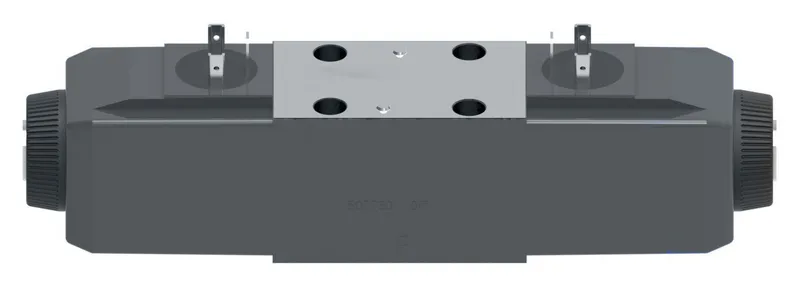

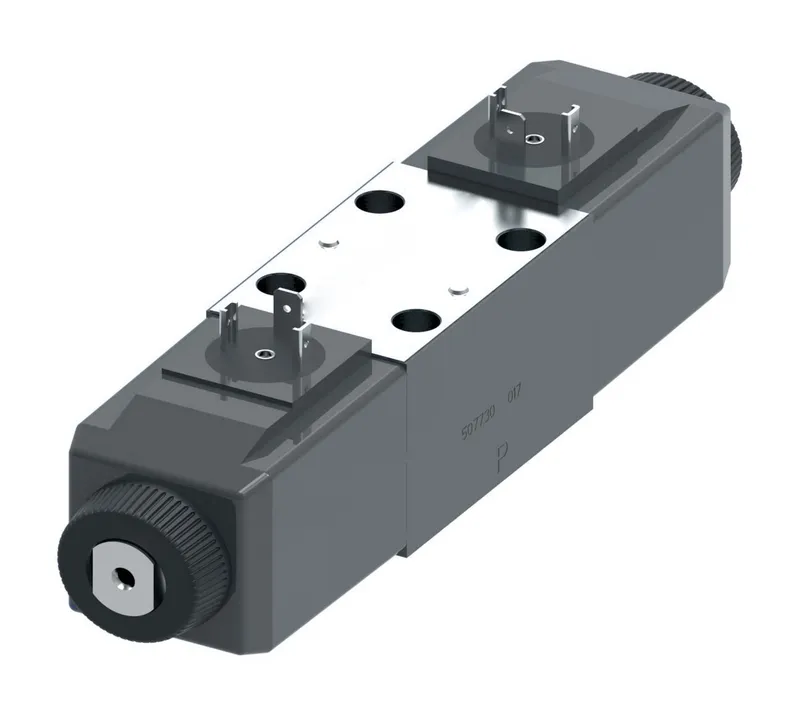

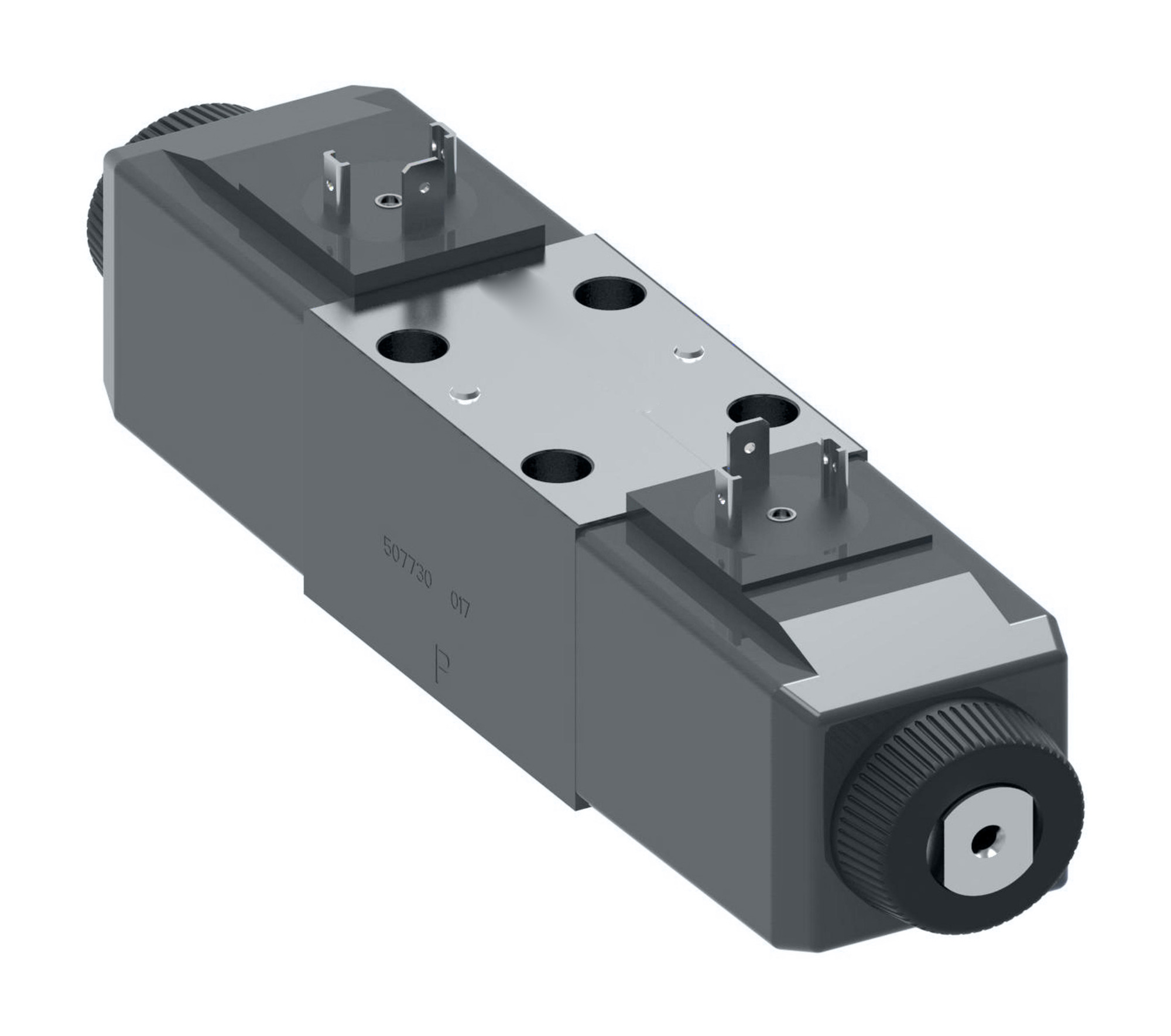

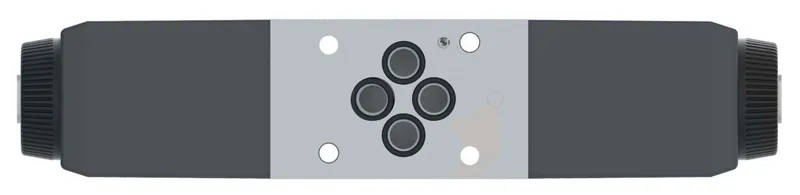

Danfoss 02-140570

DG4V 3S 6C208 M U HH5 60, DG4V3S6C208MUHH560

MPN: 02-140570
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-140570?

Danfoss DG4V 3S 6C208 M U HH5 60, DG4V3S6C208MUHH560, manufacturer part number 02-140570. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation type	Solenoid operated
Brand	Vickers by Danfoss
Design Series	60 Series
Electrical connection	ISO 4400 (Din 43650) connector
Flow rate upto GPM	10.5
Flow rate upto LPM	40.0
Fluid cleanliness	19/17/14 micron
Fluid compatibility	Petroleum oils
Indicator light	No
Interface	ISO4401-03
Manual override	Plain
Model Code 1	DG4V3S6C208MUHH560
Performance	Standard performance
Pressure rating Bar	350
Pressure rating PSI	5000
Product height in	3.420
Product length in	8.660
Product length mm	219.964
Product width in	1.800
Product width mm	45.720 mm
Solenoid Energising ID	Standard as per ANSI B93 9
Spool Type	Spool 6
Spring arrangement	Spring centred
Stage	Single stage
Surge Suppr Damper	No
Valve mount type	Subplate/manifold mounted
Valve type	Directional control valve

02-140570: frequently asked questions

When can 02-140570 be shipped?

02-140570 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-140570 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-140570 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-140570, subject to availability and destination.
