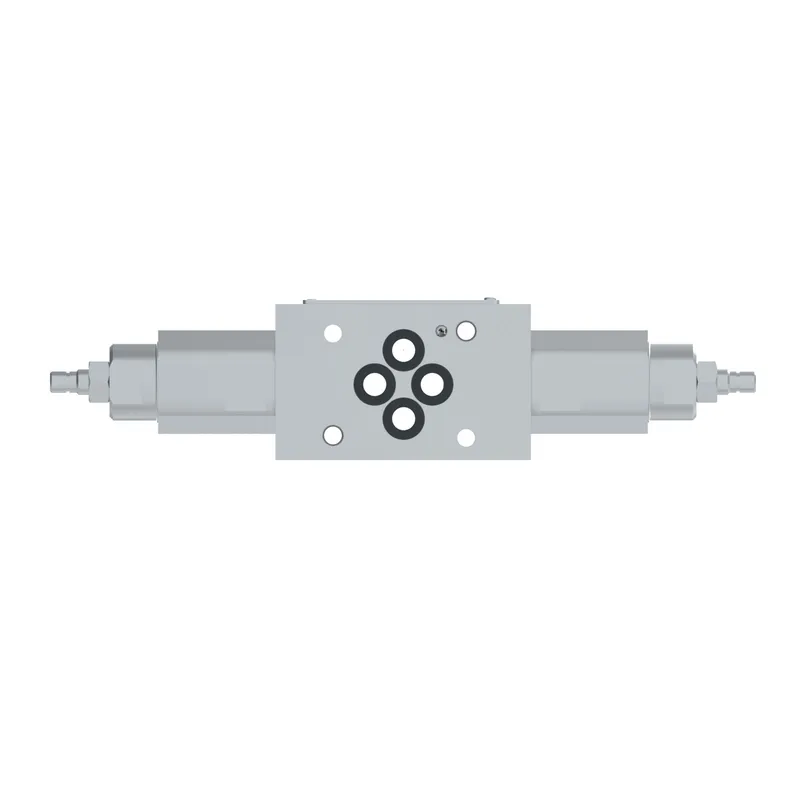

Danfoss 02-139463

DGMC2 3 AB GW BA BW 41, DGMC23ABGWBABW41

MPN: 02-139463
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-139463?

Danfoss DGMC2 3 AB GW BA BW 41, DGMC23ABGWBABW41, manufacturer part number 02-139463. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation type	Pressure operated
Adjustment type	Screw and locknut
Brand	Vickers by Danfoss
Design Series	41 Series
Discharge 1	Discharge into B
Discharge 2	Discharge into A
First function	Pressure limited in A
Flow rate upto LPM	60
Flow rate upto USGPM	16.0
Fluid cleanliness	17/15/12 micron
Fluid compatibility	Petroleum oils
Function 1 pressure adjustment	50-315 bar (725-4500 psi)
Function 2 pressure adjustment	3-100 bar (45-1450 psi)
Interface	ISO4401-03
Maximum pressure upto bar	315
Maximum pressure upto psi	4500
Model Code 1	DGMC23ABGWBABW41
Performance	Standard
Product height in	1.570
Product height mm	39.878
Product length in	9.200
Product length mm	233.680
Product width in	1.870
Product width mm	47.498 mm
Seal type	Viton
Second function	Pressure limited in B
Special features	None
Valve mount type	Subplate/manifold mounted
Valve type	Dual relief function valve
Working temp max C	80
Working temp max F	176
Working temp min C	-20
Working temp min F	-4
