Danfoss 02-138524
DGMDC 3 XTN 41, DGMDC3XTN41
- MPN
- 02-138524
- Category
- Industrial valves
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Danfoss 02-138524?

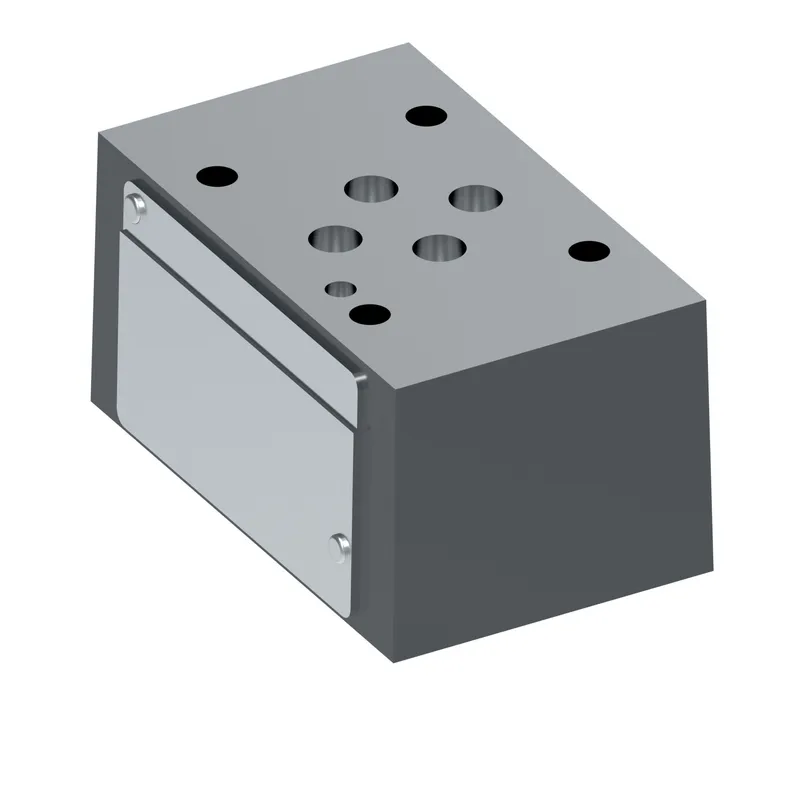

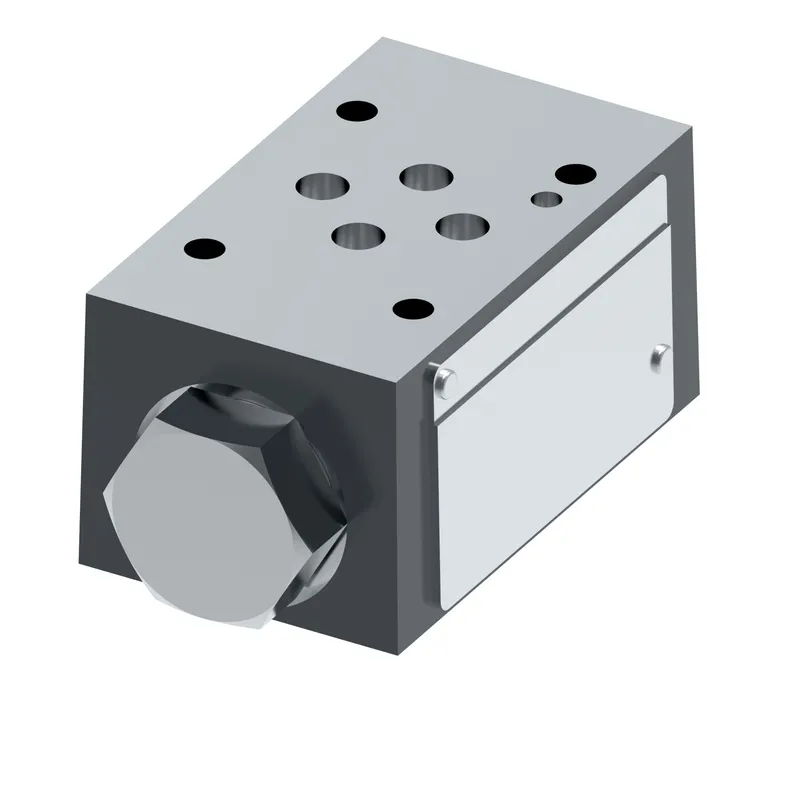

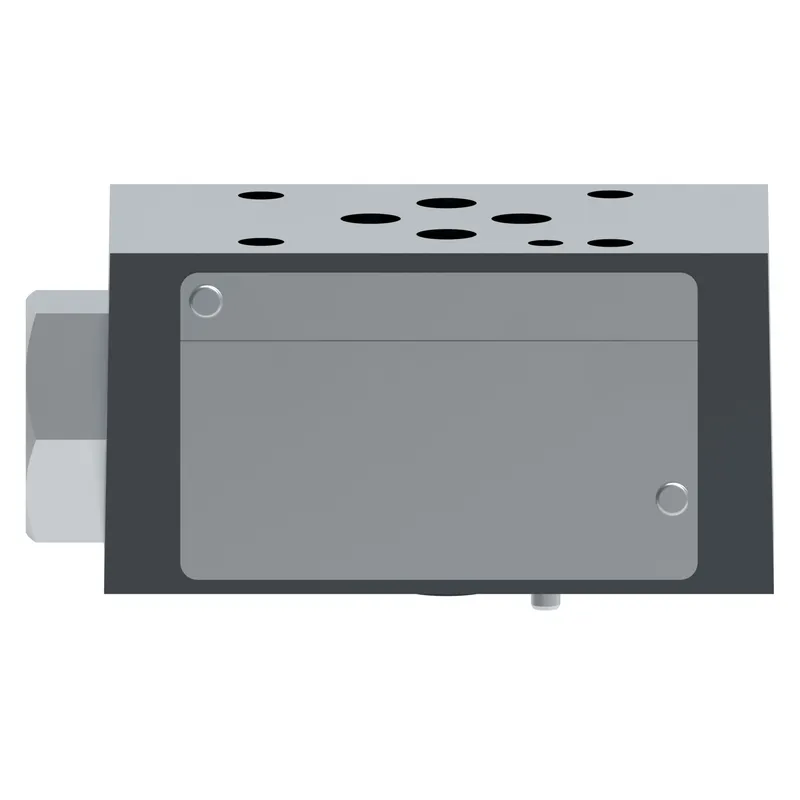

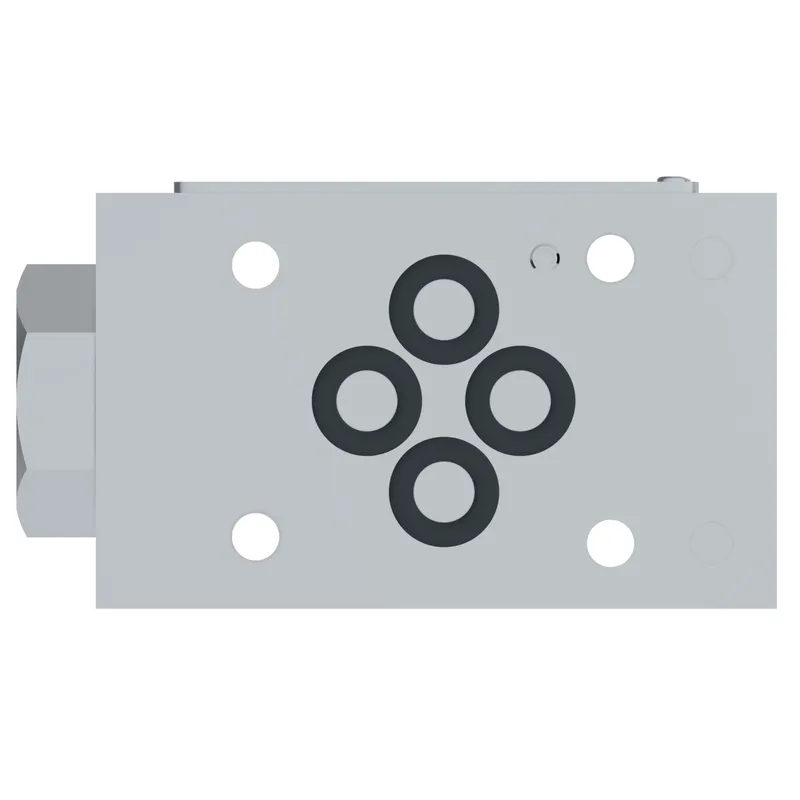

Danfoss DGMDC 3 XTN 41, DGMDC3XTN41, manufacturer part number 02-138524. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Actuation type | Pressure operated |
| Brand | Vickers by Danfoss |
| Check location | Line T |
| Cracking pressure bar | 5.00 |
| Cracking pressure psi | 72 |
| Design Series | 41 Series |
| Direction of flow | Away from actuator |
| Flow rate upto LPM | 60 |
| Flow rate upto USGPM | 16.0 |
| Fluid cleanliness | 19/17/14 micron |
| Fluid compatibility | Petroleum oils |
| Interface | ISO4401-03 |
| Maximum pressure upto bar | 315 |
| Maximum pressure upto psi | 4500 |
| Model Code 1 | DGMDC3XTN41 |
| Performance | Standard |
| Product height in | 1.570 |
| Product height mm | 39.878 |
| Product length in | 3.460 |
| Product length mm | 87.884 |
| Product width in | 1.870 |
| Product width mm | 47.498 mm |
| Seal type | Viton |
| Special features | None |
| Valve mount type | Subplate/manifold mounted |
| Valve type | Direct check valve |
| Working temp max C | 80 |
| Working temp max F | 176 |
| Working temp min C | -20 |
| Working temp min F | -4 |
