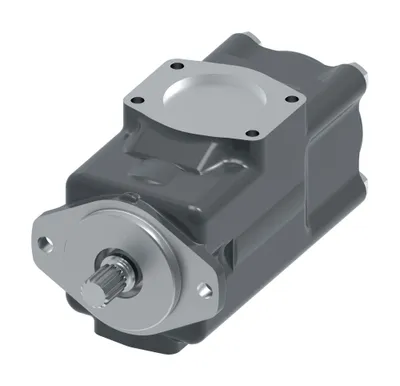

4525V60A17 86CC22R, 4525V60A17 86CC22R
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Industrial vane pumps |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 02-137444-CCR be shipped?
02-137444-CCR is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 02-137444-CCR in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 02-137444-CCR and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-137444-CCR, subject to availability and destination.
Danfoss 4525V60A17 86CC22R, 4525V60A17 86CC22R, manufacturer part number 02-137444-CCR. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| DESIGN NO | DESIGN NO |
| IPM FRAME SIZE | 4525V Double Pump |
| OUTLET POST FRM CVR END | OUTLET 1: INLINE WITH INLET, OUTLET 2: 45° CW FROM INLET |
| PORT CONNECTION | INLET: 4 BOLT FLANGE, OUTLET 1: 4 BOLT FLANGE, OUTLET 2: 4 BOLT FLANGE |
| PUMP TYPE | VANE PUMP |
| ROTATION FROM SHAFT END | CLOCKWISE |
| SEALS TYPE | STANDARD SEAL |
| Series | SERIES DESIGNATION |
| SHAFT | 86- 3/8 SQUARE KEY |
| PORT THREAD TYPE | INCH THREAD PORT CONNECTION |
| RING CAPACITY OUTLET 1 | 60 GPM |
| RING CAPACITY OUTLET 2 | 17 GPM |
| MOUNTING | FLANGE MOUNT |
| Brand | Vickers by Danfoss |
| Model Code 1 | 4525V60A17 86CC22R |
