Danfoss 02-137331-C

MPN: 02-137331-C
Category: Industrial vane pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-137331-C?

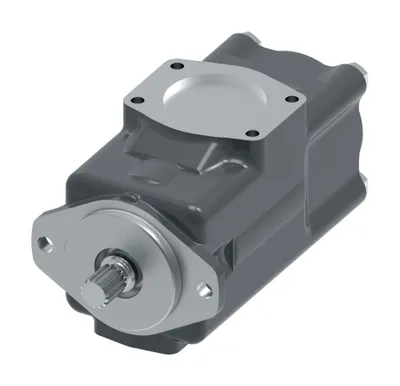

Danfoss 3525V38A17 1AD22R, 3525V38A17 1AD22R, manufacturer part number 02-137331-C. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

DESIGN NO	DESIGN NO
IPM FRAME SIZE	3525V Double Pump
OUTLET POST FRM CVR END	OUTLET 1: OPPOSITE INLET, OUTLET 2: 135° CW FROM INLET
PORT CONNECTION	INLET: 4 BOLT FLANGE, OUTLET 1: 4 BOLT FLANGE, OUTLET 2: 4 BOLT FLANGE
PUMP TYPE	VANE PUMP
ROTATION FROM SHAFT END	CLOCKWISE
SEALS TYPE	STANDARD SEAL
Series	SERIES DESIGNATION
SHAFT	1- 5/16 SQUARE KEY
PORT THREAD TYPE	INCH THREAD PORT CONNECTION
RING CAPACITY OUTLET 1	38 GPM
RING CAPACITY OUTLET 2	17 GPM
SPECIAL FEATURE SUFFIX	PUMP W/ 38GPM VQ CAM RING ( '-20 ) ASSY629336 OBSOLETE-T.I.LEWIS
MOUNTING	FLANGE MOUNT
Brand	Vickers by Danfoss
Model Code 1	3525V38A17 1AD22R
