Home / Danfoss (Drives) / 2520V17A14 1CC 22R, 2520V17A14 1CC 22R
Available on request

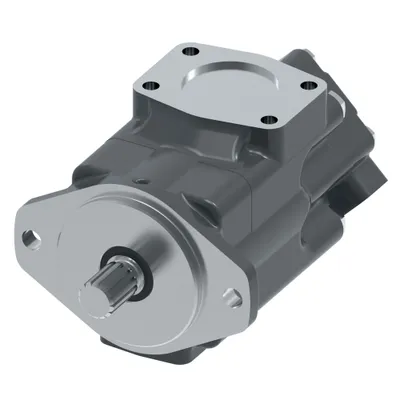

2520V17A14 1CC 22R, 2520V17A14 1CC 22R

MPN: 02-137198-CCR · Brand: Danfoss (Drives)
Price on request
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

Quick facts

AvailabilityConfirmed on request
CategoryIndustrial vane pumps
Lifecycleactive
Warranty12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 02-137198-CCR be shipped?

02-137198-CCR is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-137198-CCR in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-137198-CCR and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-137198-CCR, subject to availability and destination.

Danfoss 2520V17A14 1CC 22R, 2520V17A14 1CC 22R, manufacturer part number 02-137198-CCR. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

DESIGN NO22-DESIGN NO
IPM FRAME SIZE2520V Double Pump
OUTLET POST FRM CVR ENDOUTLET 1: INLINE WITH INLET, OUTLET 2: 45° CW FROM INLET
PORT CONNECTIONINLET: 4 BOLT FLANGE, OUTLET 1: 4 BOLT FLANGE, OUTLET 2: 4 BOLT FLANGE
PUMP TYPEVANE PUMP
ROTATION FROM SHAFT ENDCLOCKWISE
SEALS TYPESTANDARD SEAL
SeriesSERIES DESIGNATION
SHAFT1- 3/16 SQUARE KEY
MOUNTINGFLANGE MOUNT
PORT THREAD TYPEINCH THREAD PORT CONNECTION
RING CAPACITY OUTLET 117 GPM
RING CAPACITY OUTLET 214 GPM
BrandVickers by Danfoss
Model Code 12520V17A14 1CC 22R
12-month warrantyon all new stock
3-month warrantyon used & refurbished parts
30-day returnsno restocking fee on unused parts
Global shippingFast, tracked delivery worldwide
