Danfoss 02-136821

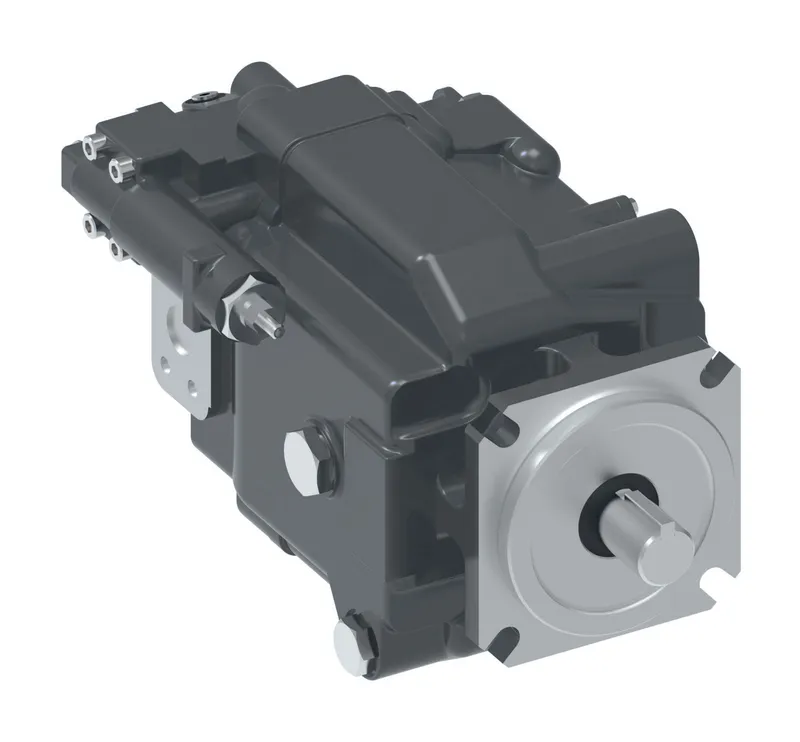

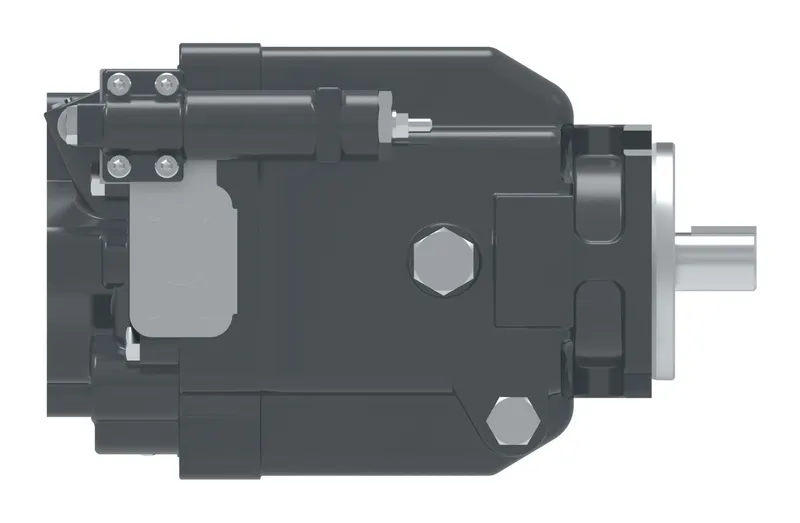

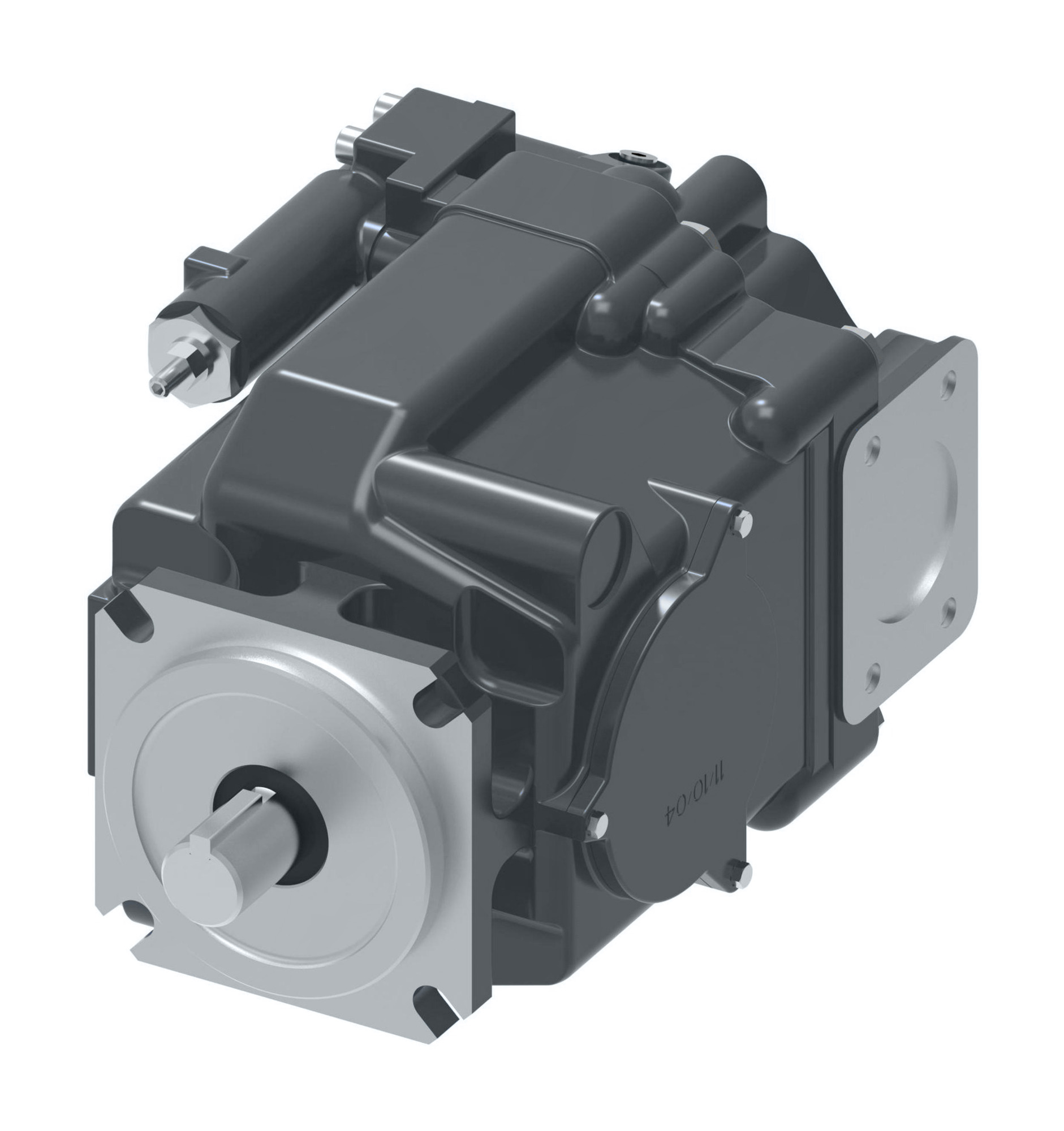

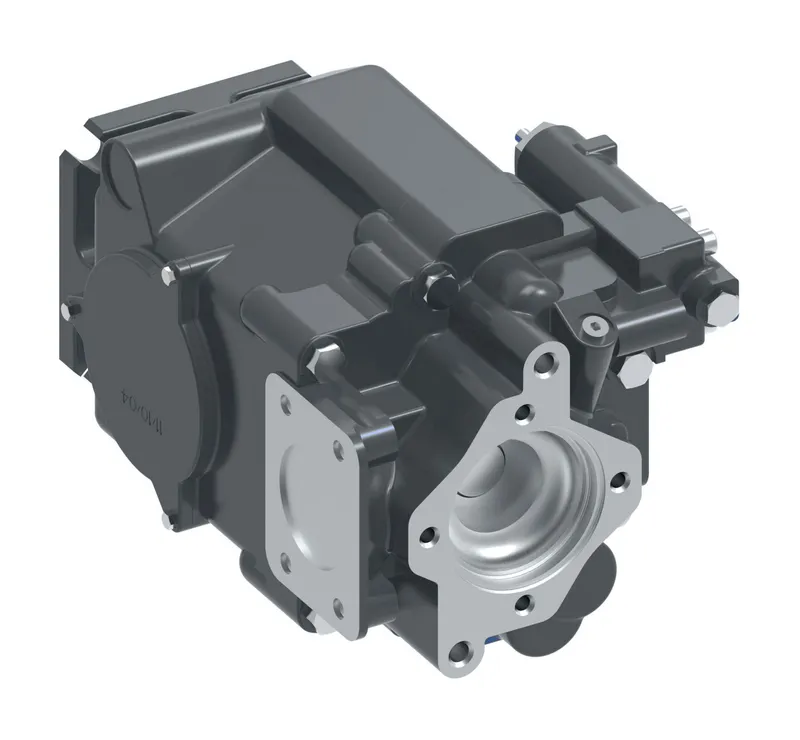

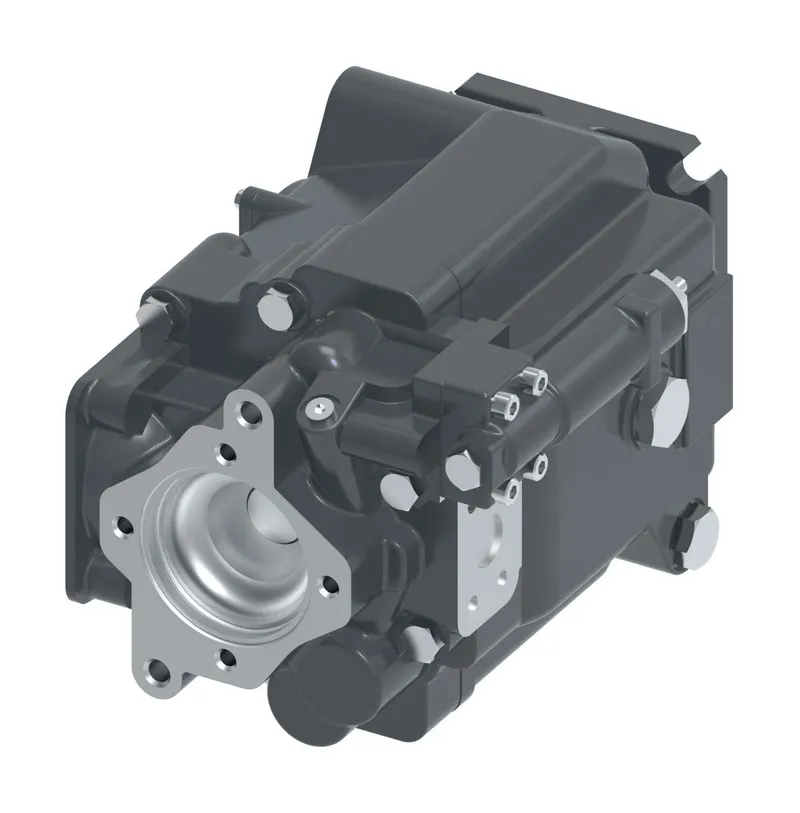

PVH098R02AJ30B252000001AD100010A

MPN: 02-136821
Category: PVH and PVE open-circuit piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-136821?

Danfoss PVH098R02AJ30B252000001AD100010A, manufacturer part number 02-136821. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Aux mount output shaft	2 BOLT A (SAE J744-82-2) W/ 14T 12/24DP SPLINED SHAFT (ASA B5.15 1960)
CODE TITLE	VICKERS PRESSURE COMPENSATED/PRESSURE FLOW COMPENSATED OPEN CIRCUIT PISTON PUMP
Control special features	NO CONTROL SPECIAL FEATURES
Controller type	PRESSURE AND FLOW COMPENSATOR
Customer identification	NONE - MARK ASSEMBLY NUMBER, COMPLETE MODEL CODE AND BUILD DATE CODE ON PLATE
Design code	FIRST DESIGN
Diagnostic pressure ports	NO DIAGNOSTIC PRESSURE PORT
Displacement	98,3 CM3/R [6.00 IN3/R]
Drain port size location	.875-14 UNF-2B SAE O-RING PORT - BOTTOM (TOP PLUGGED)
Flow comp unload valve	19-21 BAR [276-305 LBF/IN2]
Front mounting input shaft	4 BOLT C (SAE J744-127-4) WITH 14T 12/24 DP SPLINED SHAFT, 56.0 [2.20] SHAFT EXTENSION
Input shaft rotation	RIGHT-HAND ROTATION (CW) RIGHT SIDE SUCTION PORT, LEFT SIDE PRESSURE PORT
Main ports size location	SIDE PORTS; SUCTION - 2.500 SAE 4-BOLT SPLIT FLANGE PORT STANDARD PRESSURE SERIES (CODE 61) WITH 1/2-13 UNC-2B THREADS; PRESSURE- 1.000 SAE 4-BOLT SPLIT FLANGE PORT STANDARD PRESSURE SERIES (CODE 61) WITH 3/8-16 UNC-2B THREADS
Maximum displacement option	STANDARD DISPLACEMENT
Paint	BLUE PRIMER
Pressure compensator setting	246-254 BAR [3568-3684 LBF/IN2]
Shaft seal	SINGLE, ONE-WAY SHAFT SEAL, FLUOROCARBON
Special features	NO SPECIAL FEATURES
Torque sensing other comp	NO TORQUE SENSING SETTING OR OTHER COMPENSATION
