Danfoss 02-136036

Industrial valve

MPN: 02-136036
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-136036?

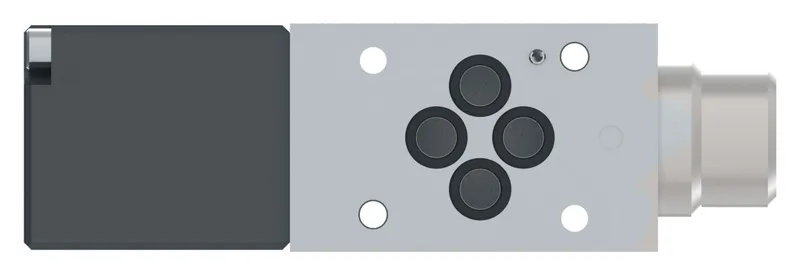

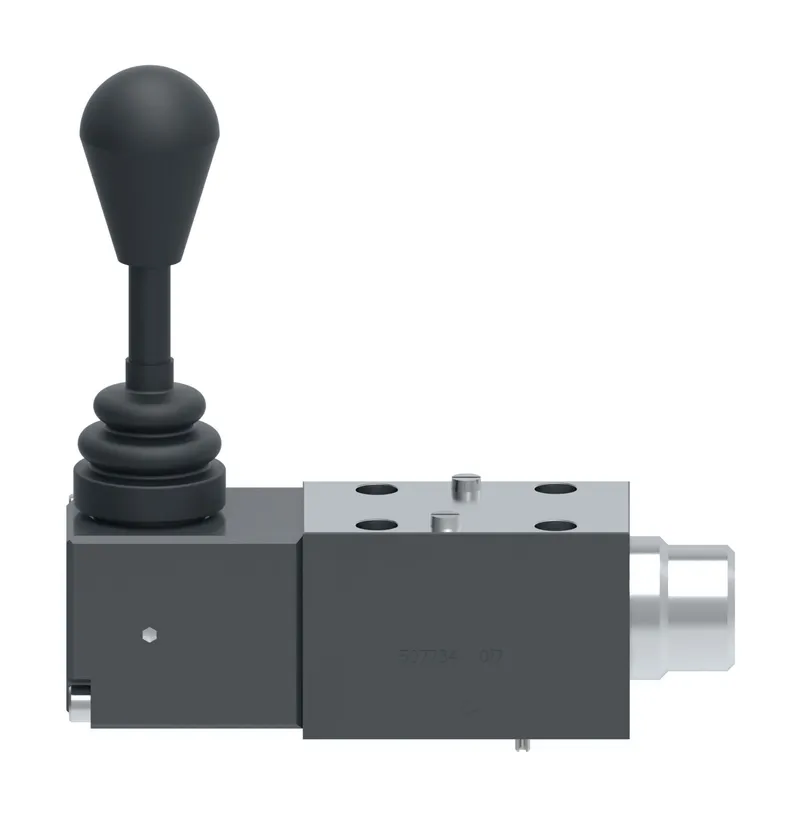

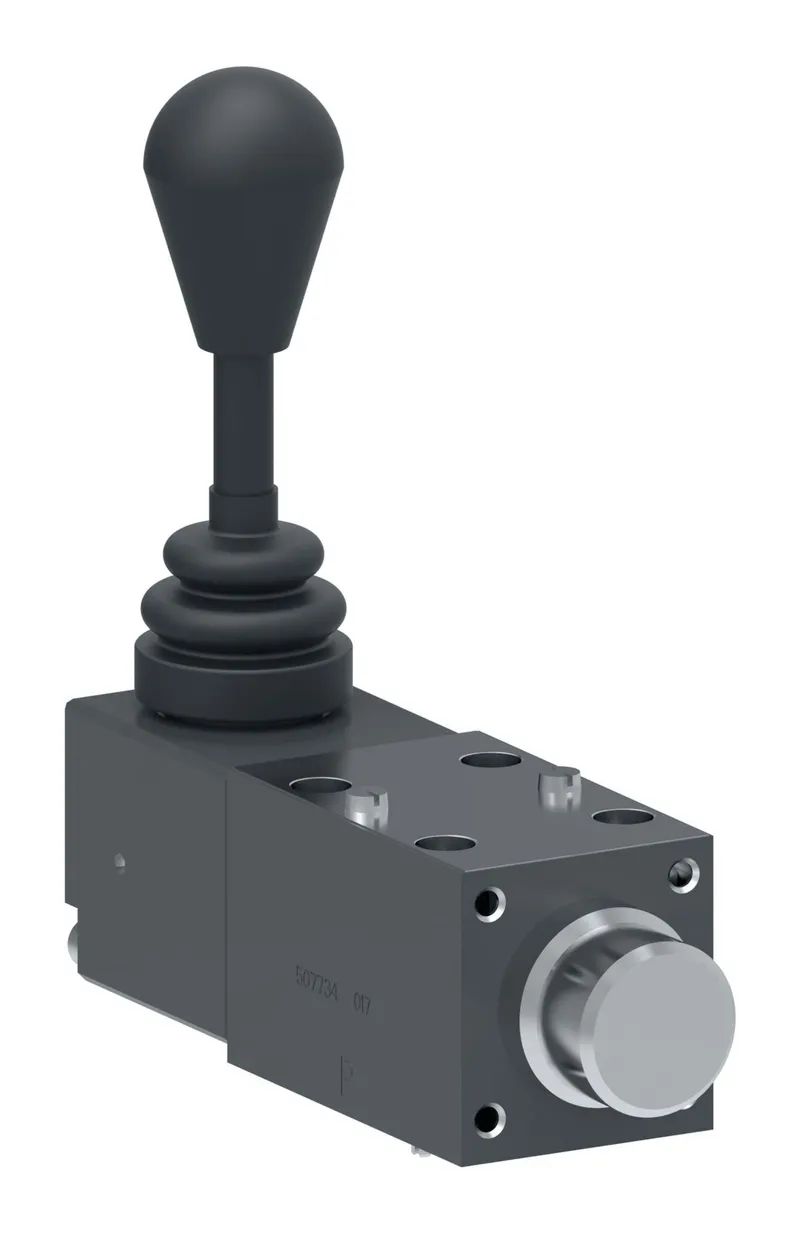

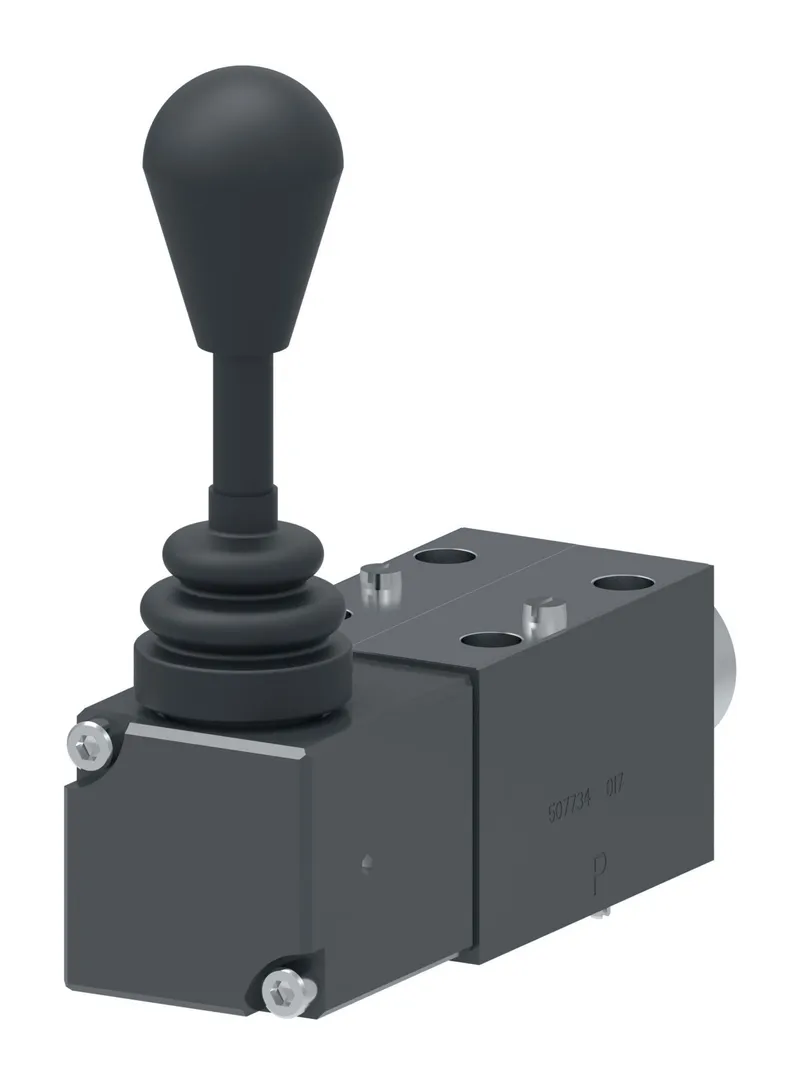

Danfoss DG17V 3 33C 60, DG17V333C60, manufacturer part number 02-136036. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation type	Lever/knob operated
Brand	Vickers by Danfoss
Coil Rating	None
Design Series	60 Series
Electrical connection	None
Flow rate upto GPM	20.0
Flow rate upto LPM	75.0
Fluid cleanliness	19/17/14 micron
Fluid compatibility	Petroleum oils
Indicator light	No
Interface	ISO4401-03
Manual override	None
Model Code 1	DG17V333C60
Performance	Standard performance
Pressure rating Bar	350
Pressure rating PSI	5000
Product height in	5.960
Product length in	5.960
Product length mm	151.384
Product width in	1.810
Product width mm	45.974 mm
Seal type	WATER GLYCOL
Solenoid Energising ID	None
Special features	None
Spool Position Monitor	No
Spool Type	Spool 33
Spring arrangement	Spring centred
Stage	Single stage
Surge Suppr Damper	No
Tank port rating BAR	7
Tank port rating PSI	100
Valve mount type	Subplate/manifold mounted
Valve type	Directional control valve
Working temp max C	65
Working temp max F	150
Working temp min C	-18
Working temp min F	0

02-136036: frequently asked questions

When can 02-136036 be shipped?

02-136036 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-136036 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-136036 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-136036, subject to availability and destination.
