Danfoss 02-135865

CG5 100A B M U B5 100, CG5100ABMUB5100

MPN: 02-135865
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-135865?

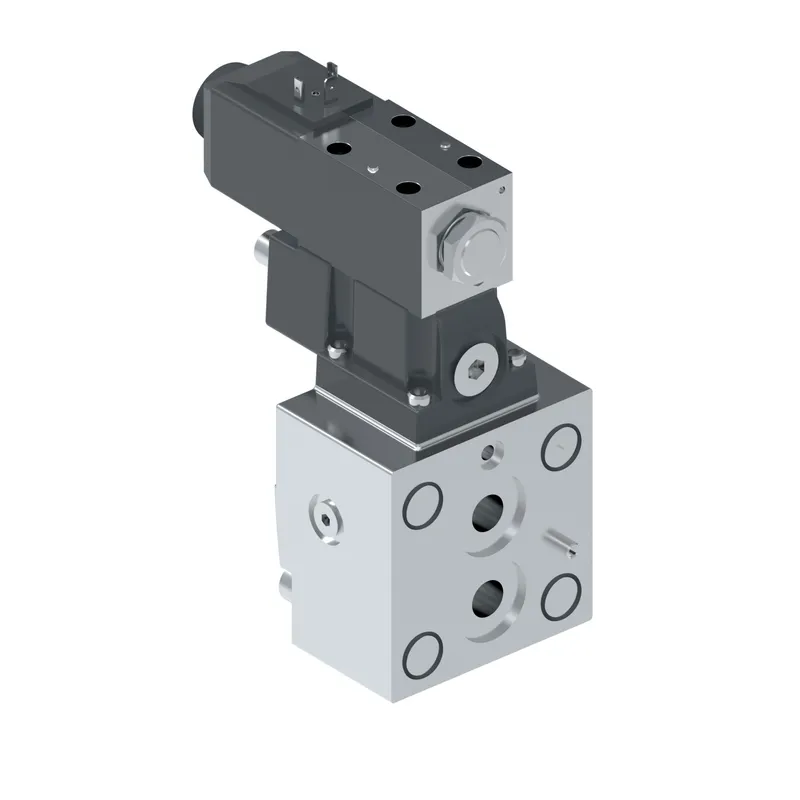

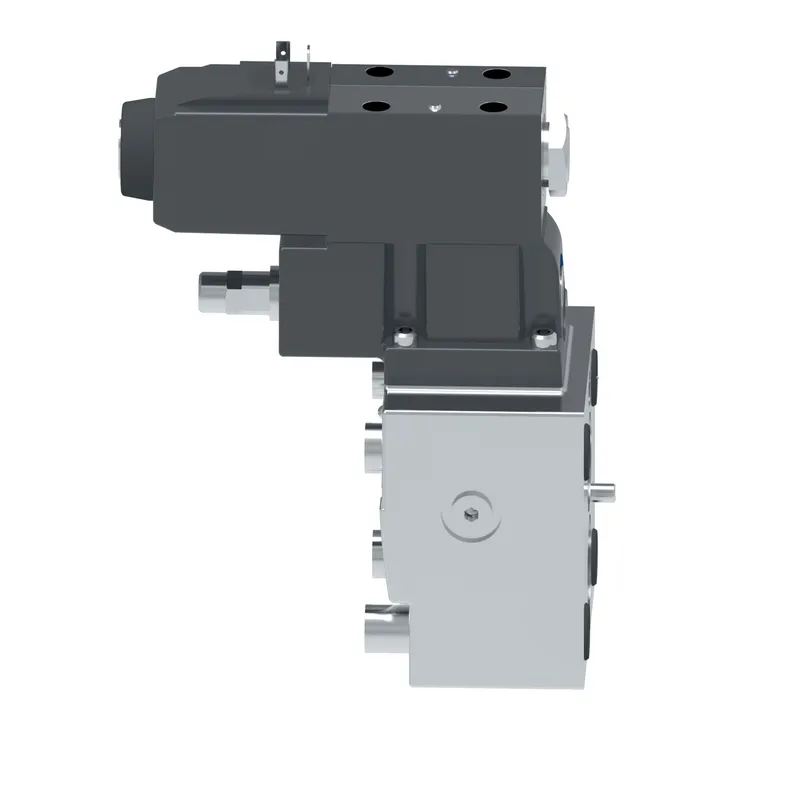

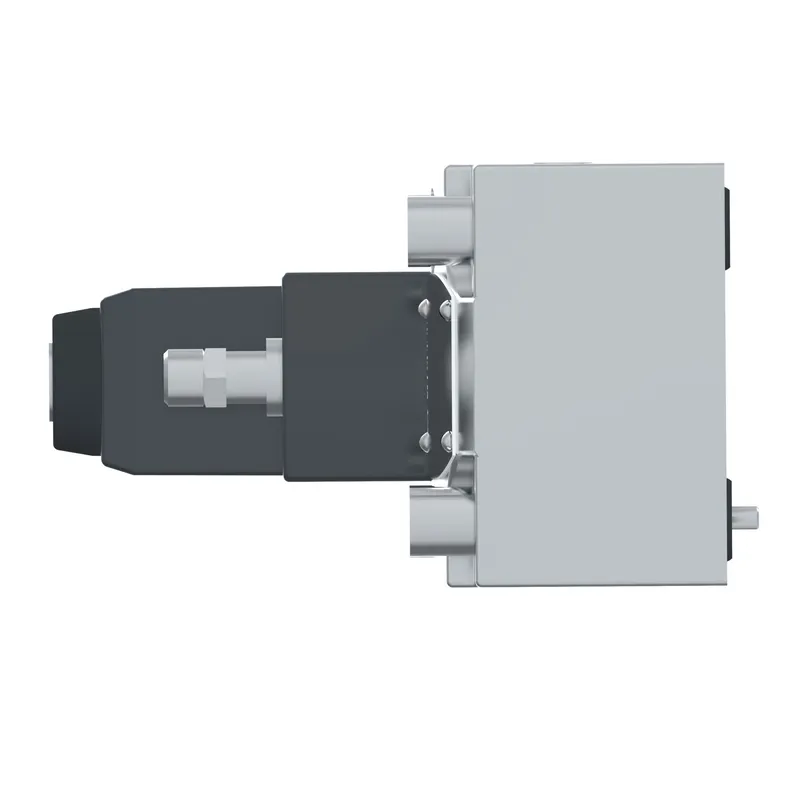

Danfoss CG5 100A B M U B5 100, CG5100ABMUB5100, manufacturer part number 02-135865. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation type	Solenoid operated
Adjustment range	8.5-70 bar (125-1000 psi)
Adjustment type	Screw with locknut
Brand	Vickers by Danfoss
Coil voltage	110 VAC 50Hz/120 VAC 60Hz
Design Series	100 Series
Electrical connection	ISO 4400 (DIN 43650) connector
Flow rate LPM	454.0
Flow rate USgpm	120.0
Fluid cleanliness	19/17/14 Micron
Fluid compatibility	Petroleum oils
Hi-vent spring	No
Indicator light	No
Manual override	Plain
Maximum pressure BAR	210
Maximum pressure PSI	3000
Model Code 1	CG5100ABMUB5100
Performance	Standard
Product height in	10.090
Product height mm	256.286
Product length in	5.750
Product length mm	146.050
Product width in	3.380
Product width mm	85.852 mm
Seal material	Nitrile
Size	Size 10
Special feature	None
Spring arrangement	Spring offset
Stage	Two stage
Tank pressure bar	155
Tank pressure PSI	2250
Valve mount type	Subplate/manifold mounted
Valve type	Pilot operated relief valve
Working temperature max C	70
Working temperature max F	158
Working temperature min C	-20
Working temperature min F	-4
