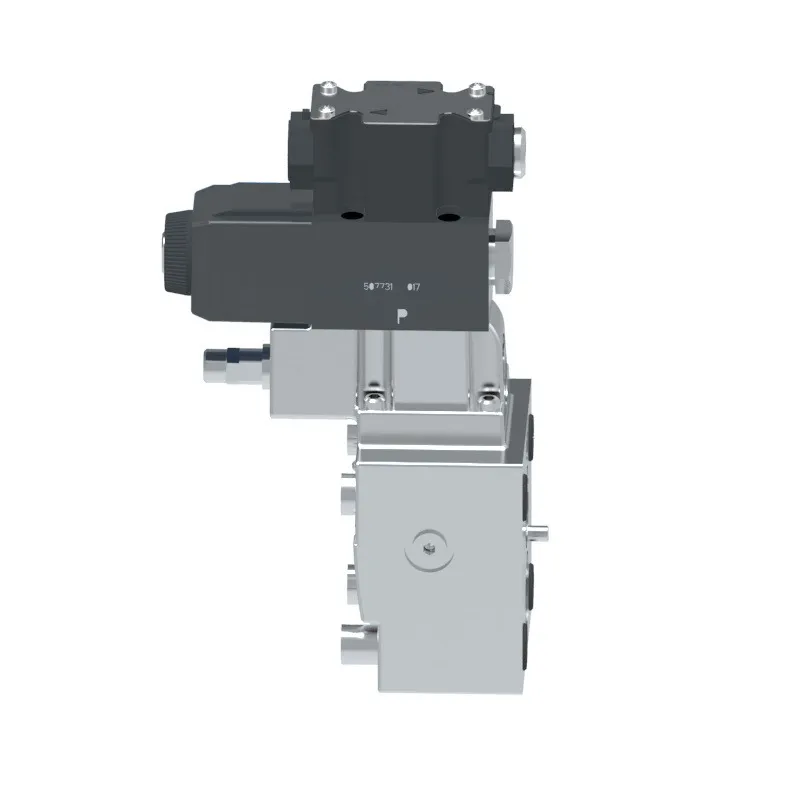

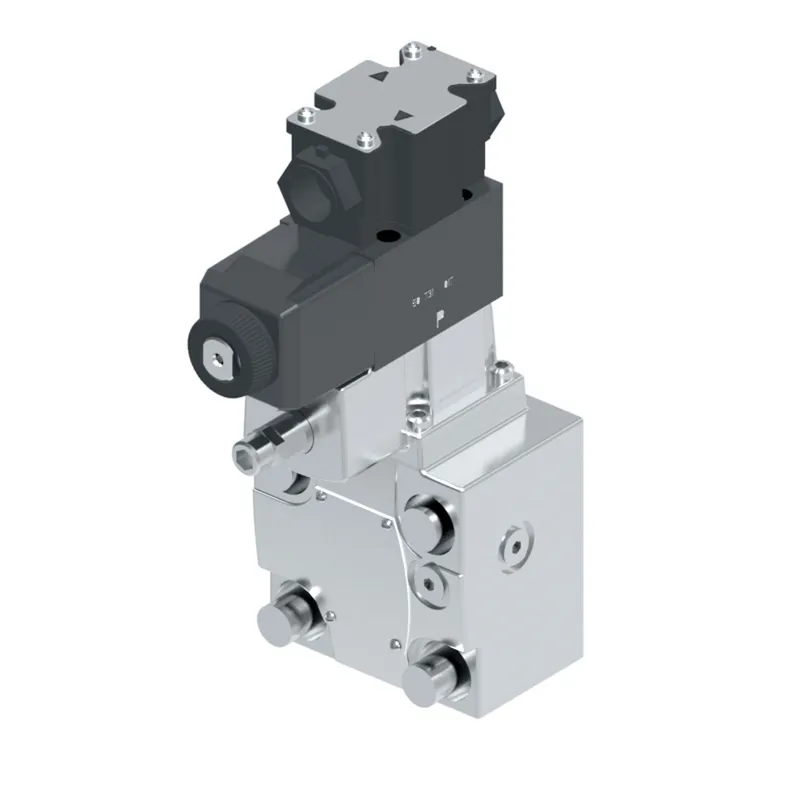

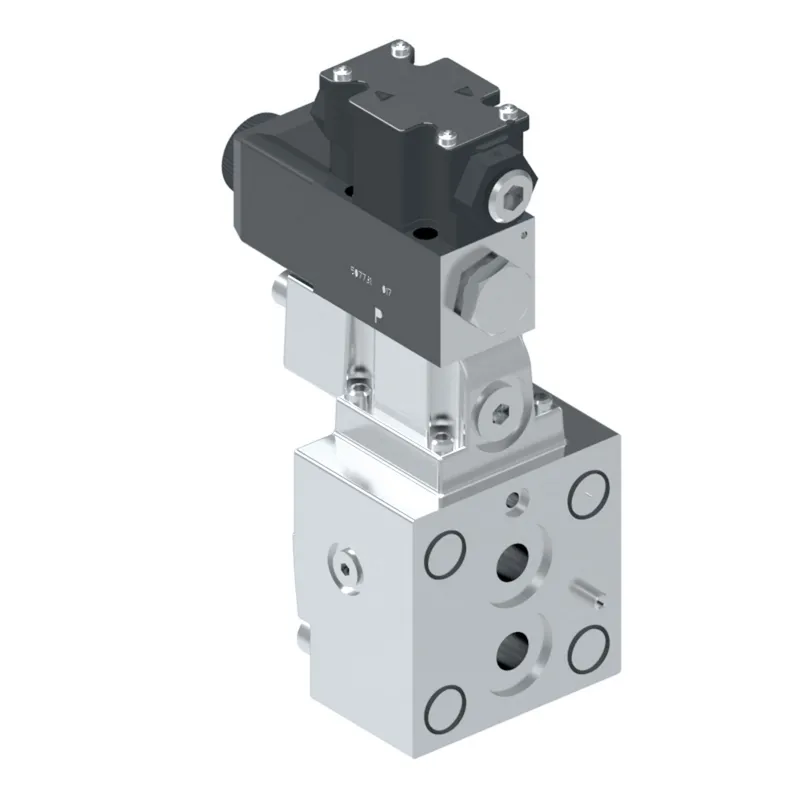

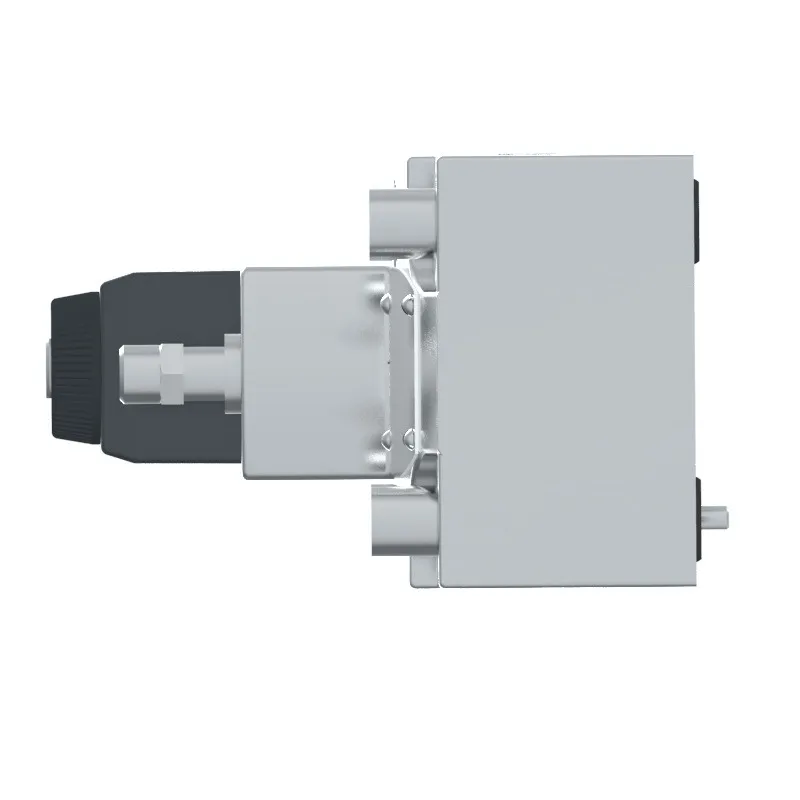

Danfoss 02-134861

CG5-060A-F-M-FPA5WL-B5-1 00, CG5060AFMFPA5WLB5100

MPN: 02-134861
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-134861?

Danfoss CG5-060A-F-M-FPA5WL-B5-1 00, CG5060AFMFPA5WLB5100, manufacturer part number 02-134861. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation type	Solenoid operated
Adjustment range	100-210 bar (1500-3000 psi)
Adjustment type	Screw with locknut
Brand	Vickers by Danfoss
Coil voltage	110 VAC 50Hz/120 VAC 60Hz
Design Series	100 Series
Electrical connection	5-Pin connector
Flow rate LPM	227.0
Flow rate USgpm	60.0
Fluid cleanliness	19/17/14 Micron
Fluid compatibility	Petroleum oils
Hi-vent spring	No
Indicator light	Yes
Manual override	Plain
Maximum pressure BAR	210
Maximum pressure PSI	3000
Model Code 1	CG5060AFMFPA5WLB5100
Performance	Standard
Product height in	9.650
Product height mm	245.110
Product length in	5.750
Product length mm	146.050
Product width in	2.810
Product width mm	71.374 mm
Seal material	Nitrile
Size	Size 06
Special feature	None
Spring arrangement	Spring offset
Stage	Two stage
Tank pressure bar	155
Tank pressure PSI	2250
Valve mount type	Subplate/manifold mounted
Valve type	Pilot operated relief valve
Working temperature max C	70
Working temperature max F	158
Working temperature min C	-20
Working temperature min F	-4
