Danfoss 02-127888

CS5 060A F M FTWL B5 100, CS5060AFMFTWLB5100

MPN: 02-127888
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-127888?

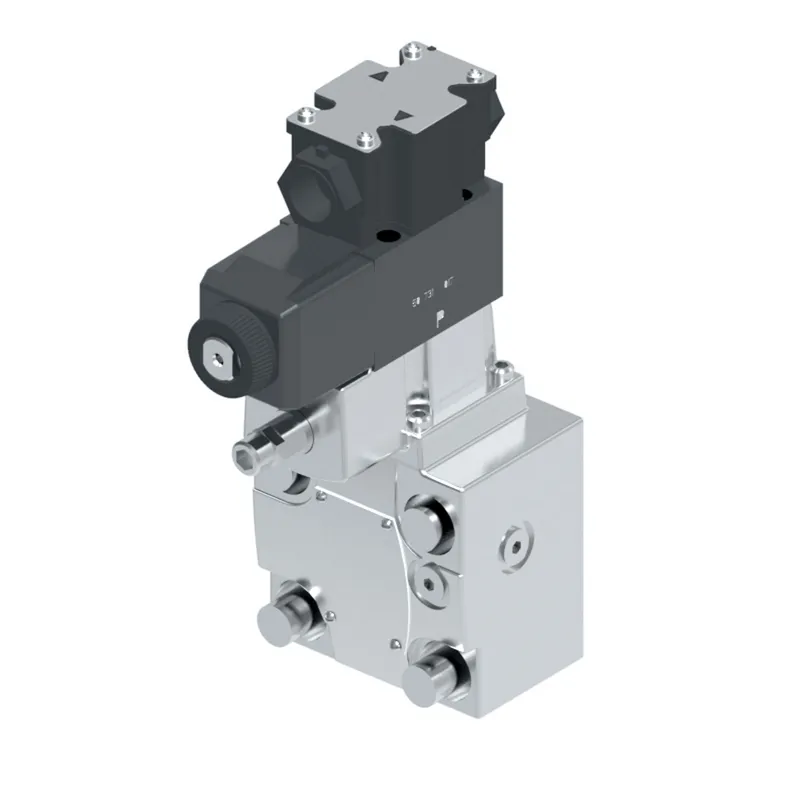

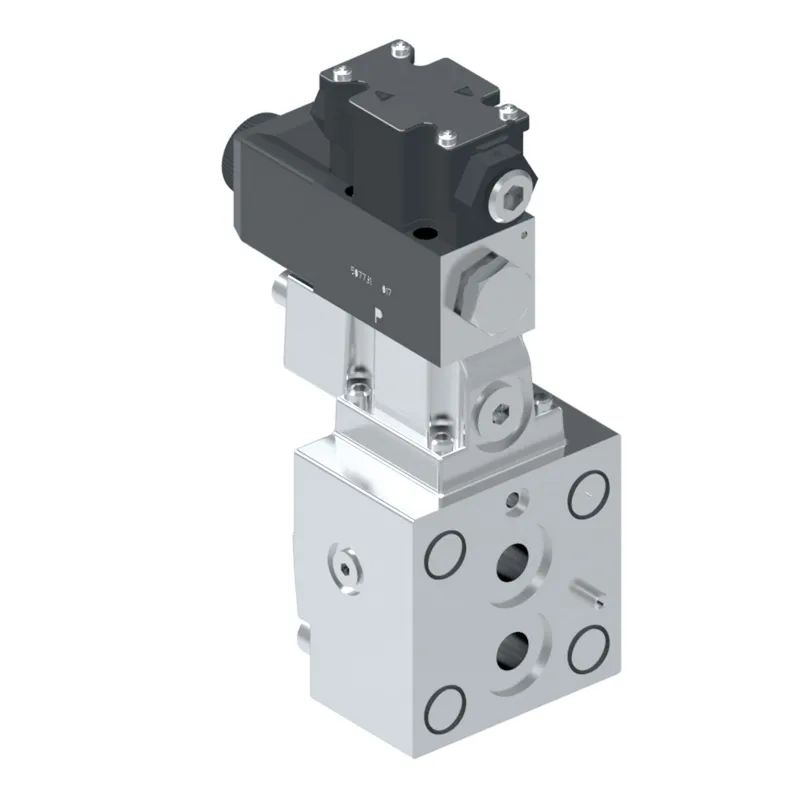

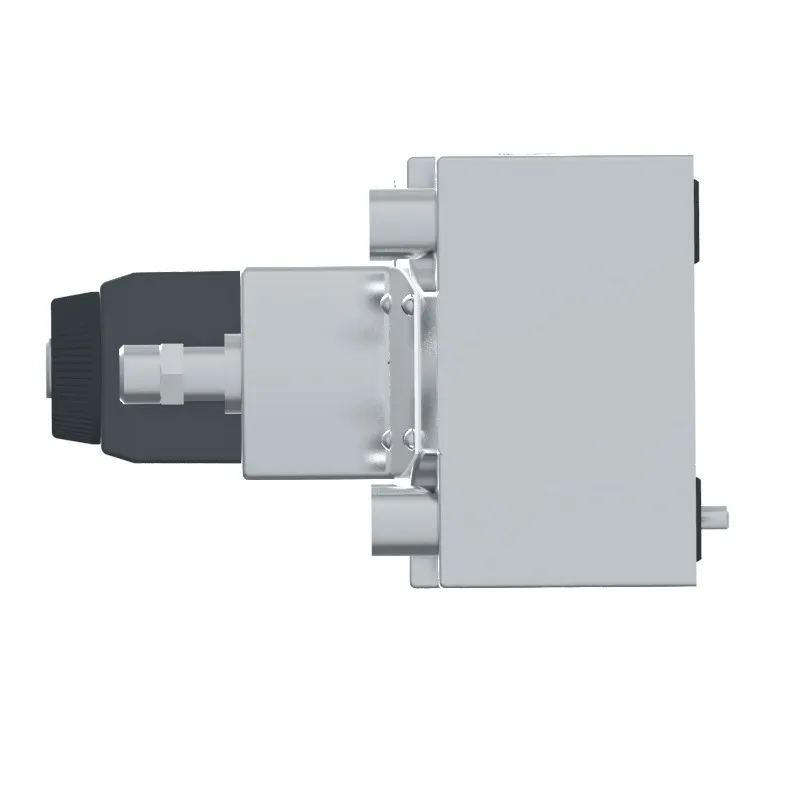

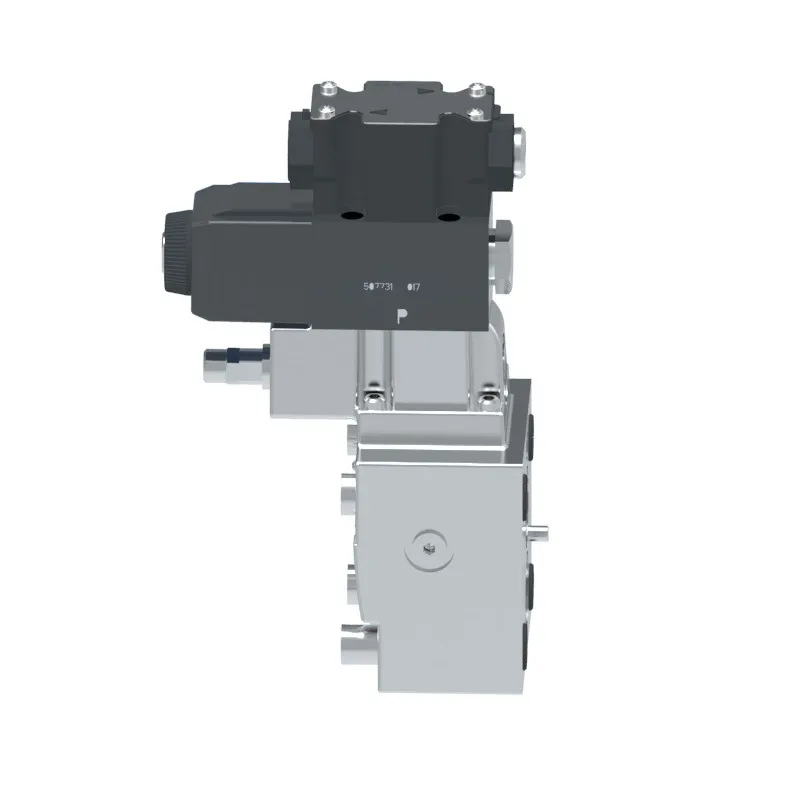

Danfoss CS5 060A F M FTWL B5 100, CS5060AFMFTWLB5100, manufacturer part number 02-127888. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation type	Solenoid operated
Adjustment range	100-210 bar (1500-3000 psi)
Adjustment type	Screw with locknut
Brand	Vickers by Danfoss
Coil voltage	110 VAC 50Hz/120 VAC 60Hz
Design Series	100 Series
Electrical connection	Fly.lead term. block 1/2" NPT
Flow rate LPM	227.0
Flow rate USgpm	60.0
Fluid cleanliness	19/17/14 Micron
Fluid compatibility	Petroleum oils
Gauge port thread	16 UNF-2B thread
Hi-vent spring	No
Indicator light	Yes
Maximum pressure BAR	210
Maximum pressure PSI	3000
Model Code 1	CS5060AFMFTWLB5100
Performance	Standard
Product height in	9.540
Product height mm	242.316
Product length in	5.770
Product length mm	146.558
Product width in	3.280
Product width mm	83.312 mm
Seal material	Nitrile
Size	Size 06
Special feature	None
Spring arrangement	Spring offset
Stage	Two stage
Valve mount type	1.6250-12-UNF-2B straight thd
Valve type	Pilot operated relief valve
Working temperature max C	70
Working temperature max F	158
Working temperature min C	-20
Working temperature min F	-4

02-127888: frequently asked questions

When can 02-127888 be shipped?

02-127888 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-127888 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-127888 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-127888, subject to availability and destination.
