Danfoss 02-127442

CG5-060A-F-M-FW-B5-P10-1 00, CG5060AFMFWB5P10100

MPN: 02-127442
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-127442?

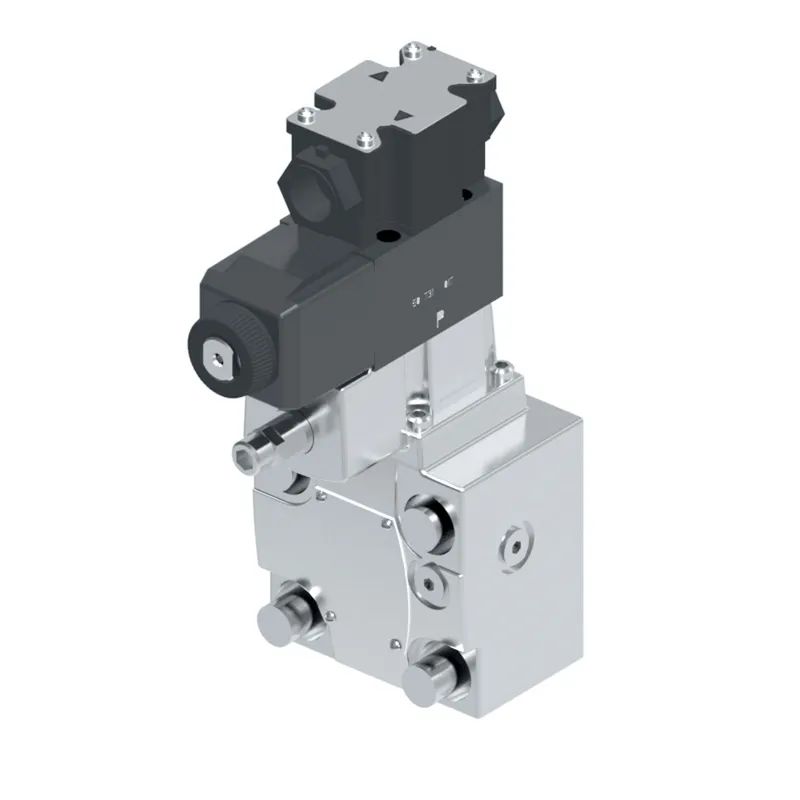

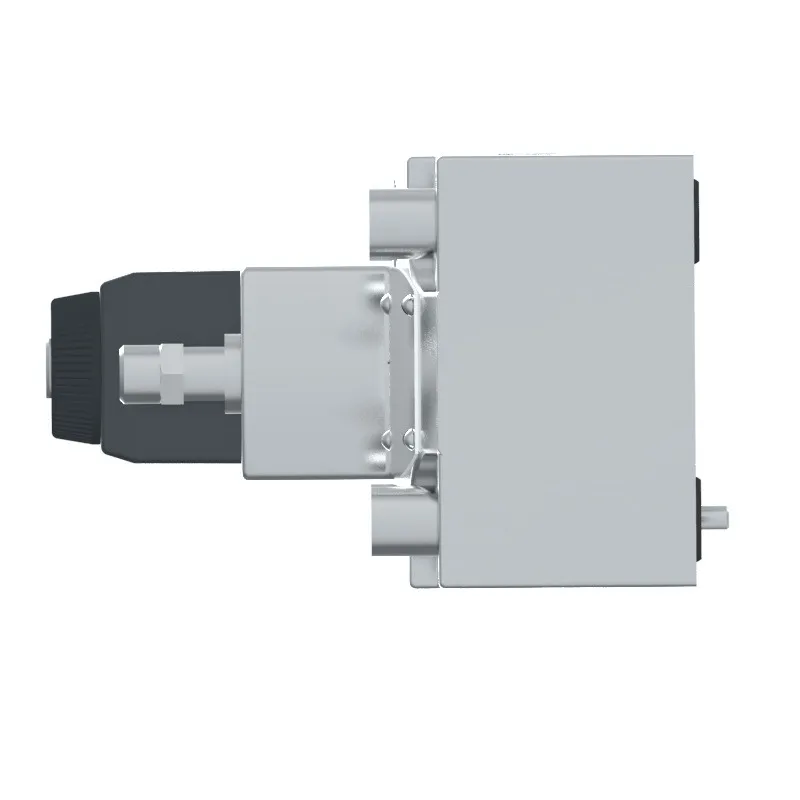

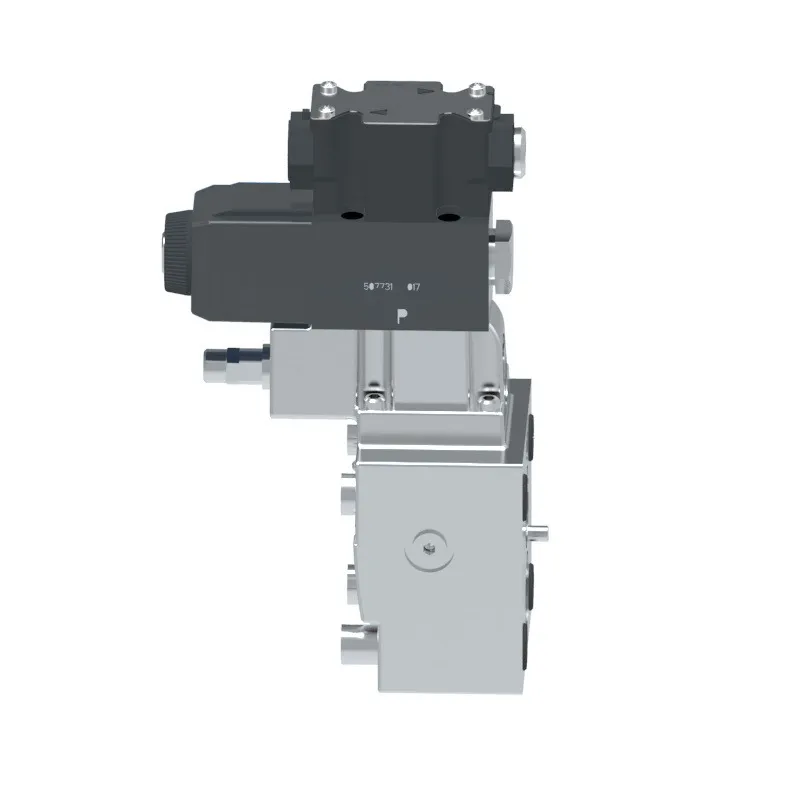

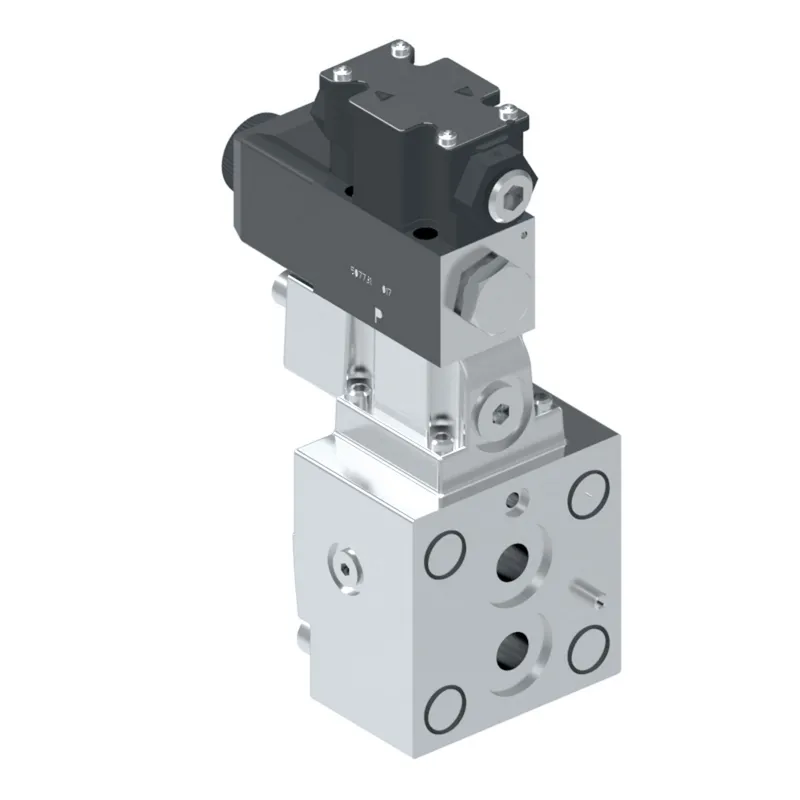

Danfoss CG5-060A-F-M-FW-B5-P10-1 00, CG5060AFMFWB5P10100, manufacturer part number 02-127442. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation type	Solenoid operated
Adjustment range	100-210 bar (1500-3000 psi)
Adjustment type	Screw with locknut
Brand	Vickers by Danfoss
Coil voltage	110 VAC 50Hz/120 VAC 60Hz
Design Series	100 Series
Electrical connection	Flying lead 1/2" NPT housing
Flow rate LPM	227.0
Flow rate USgpm	60.0
Fluid cleanliness	19/17/14 Micron
Fluid compatibility	Petroleum oils
Hi-vent spring	No
Indicator light	No
Manual override	Plain
Maximum pressure BAR	210
Maximum pressure PSI	3000
Model Code 1	CG5060AFMFWB5P10100
Performance	Standard
Product height in	9.650
Product height mm	245.110
Product length in	5.750
Product length mm	146.050
Product width in	2.810
Product width mm	71.374 mm
Seal material	Nitrile
Size	Size 06
Special feature	None
Spring arrangement	Spring offset
Stage	Two stage
Tank pressure bar	155
Tank pressure PSI	2250
Valve mount type	Subplate/manifold mounted
Valve type	Pilot operated relief valve
Working temperature max C	70
Working temperature max F	158
Working temperature min C	-20
Working temperature min F	-4

02-127442: frequently asked questions

When can 02-127442 be shipped?

02-127442 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-127442 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-127442 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-127442, subject to availability and destination.
