Danfoss 02-127424

CG-06-BC-DG-0A-M-FW-B5-4 0, CG06BCDG0AMFWB540

MPN: 02-127424
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

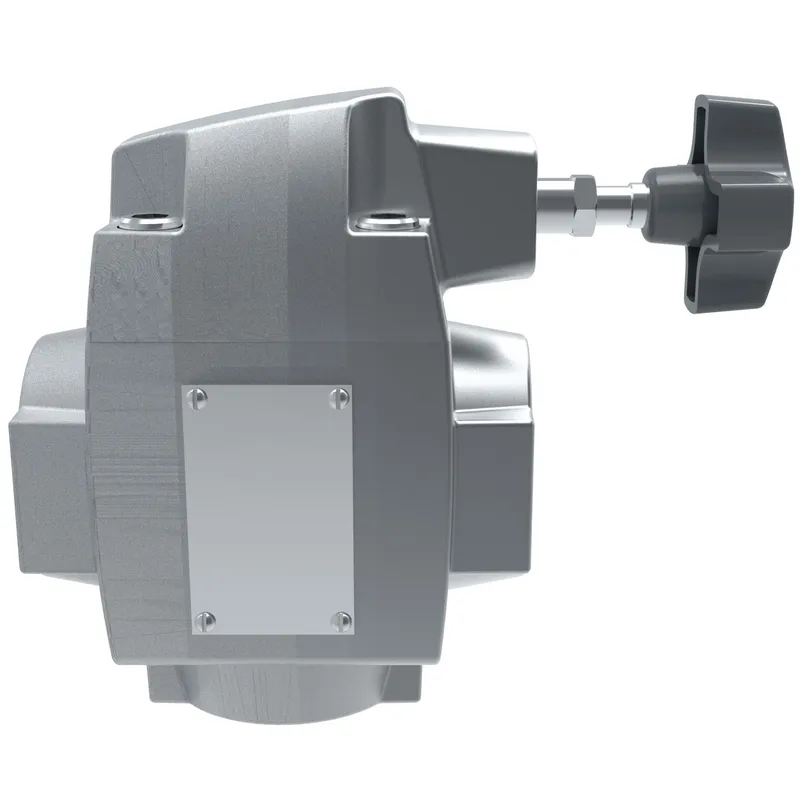

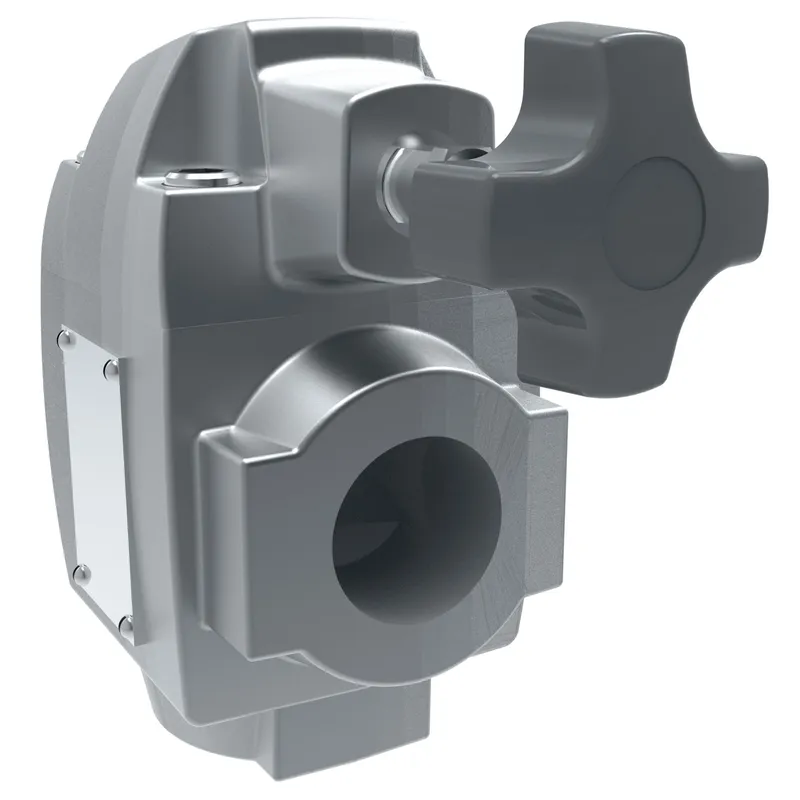

What is the Danfoss 02-127424?

Danfoss CG-06-BC-DG-0A-M-FW-B5-4 0, CG06BCDG0AMFWB540, manufacturer part number 02-127424. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation type	Solenoid operated
Adjustment range	8.5-70 Bar & 100-210 Bar
Adjustment range head 1	8.5-70 bar (125-1000 psi)
Adjustment range head 3	35-140 bar (500-2000 psi)
Adjustment type	Screw with locknut
Brand	Vickers by Danfoss
Coil voltage	110 VAC 50Hz/120 VAC 60Hz
Design Series	40 Series
Electrical connection	Flying lead 1/2" NPT housing
Flow rate LPM	227.0
Flow rate USgpm	60.0
Fluid cleanliness	19/17/14 Micron
Fluid compatibility	Petroleum oils
Hi-vent spring	No
Indicator light	No
Manual override	None
Maximum pressure BAR	210
Maximum pressure PSI	3000
Model Code 1	CG06BCDG0AMFWB540
Performance	Standard
Product height in	10.750
Product height mm	273.050
Product length in	5.540
Product length mm	140.716
Product width in	5.030
Product width mm	127.762 mm
Seal material	Nitrile
Size	Size 06
Special feature	None
Stage	Two stage
Valve mount type	Subplate/manifold mounted
Valve type	Relief valve
Working temperature max C	70
Working temperature max F	158
Working temperature min C	-20
Working temperature min F	-4
