Danfoss 02-126616

Industrial valve

MPN: 02-126616
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-126616?

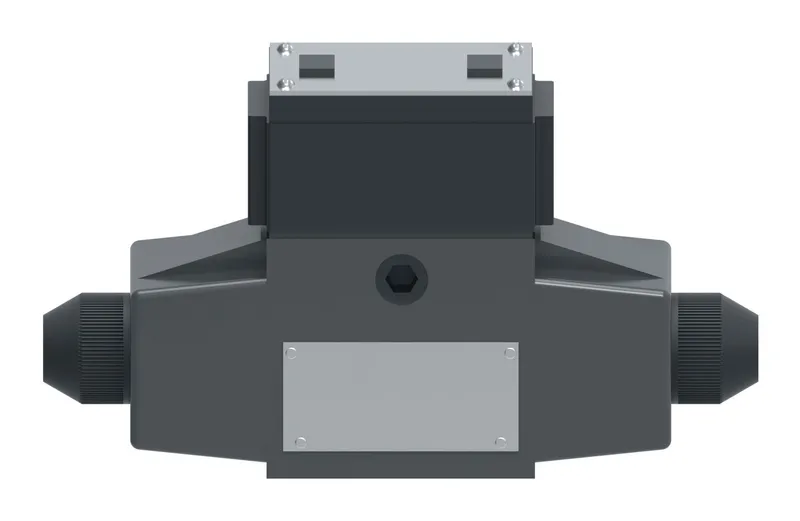

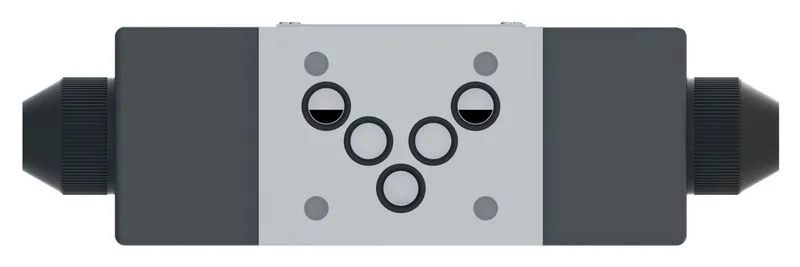

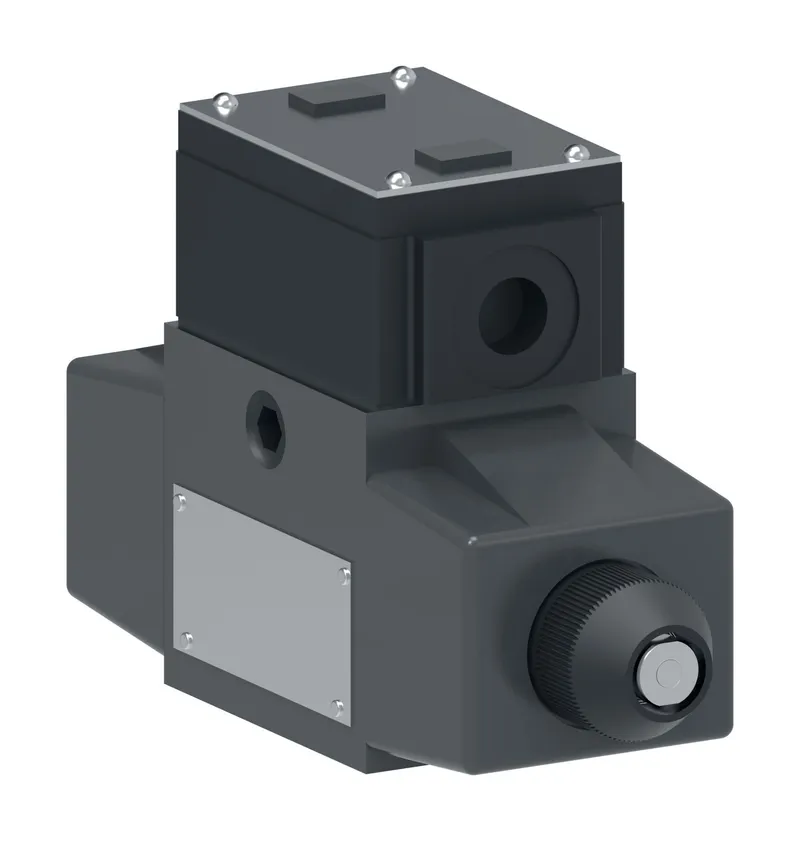

Danfoss DG4S4W 012C D 60, DG4S4W012CD60, manufacturer part number 02-126616. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation type	Solenoid operated
Brand	Vickers by Danfoss
Coil Rating	220 VAC 50 Hz/240 VAC 60 Hz
Design Series	60 Series
Electrical connection	Flying lead 1/2" NPT housing
Energ Time	20-40 ms
Flow rate upto GPM	25.0
Flow rate upto LPM	95.0
Fluid cleanliness	19/17/14 micron
Fluid compatibility	Petroleum oils
Indicator light	No
Interface	ISO4401-05
Manual override	None
Model Code 1	DG4S4W012CD60
Performance	Standard performance
Power Consumption	61VA 50HZ - 58VA 60HZ
Pressure rating Bar	250
Pressure rating PSI	3600
Product height in	5.410
Product length in	6.840
Product length mm	173.736
Product width in	2.580
Product width mm	65.532 mm
Seal type	Buna-N
Solenoid Energising ID	Standard as per ANSI B93 9
Special features	None
Spool Position Monitor	No
Spool Type	Spool 2
Spring arrangement	Spring centred
Stage	Single stage
Surge Suppr Damper	No
Tank port rating BAR	70
Tank port rating PSI	1000
Valve mount type	Subplate/manifold mounted
Valve type	Directional control valve
Working temp max C	82
Working temp max F	180
Working temp min C	20
Working temp min F	70

02-126616: frequently asked questions

When can 02-126616 be shipped?

02-126616 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-126616 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-126616 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-126616, subject to availability and destination.
