Danfoss 02-125560-AA

35VQTBPS25A 2203 AA 20, 35VQTBPS25A 2203 AA 20

MPN
02-125560-AA
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

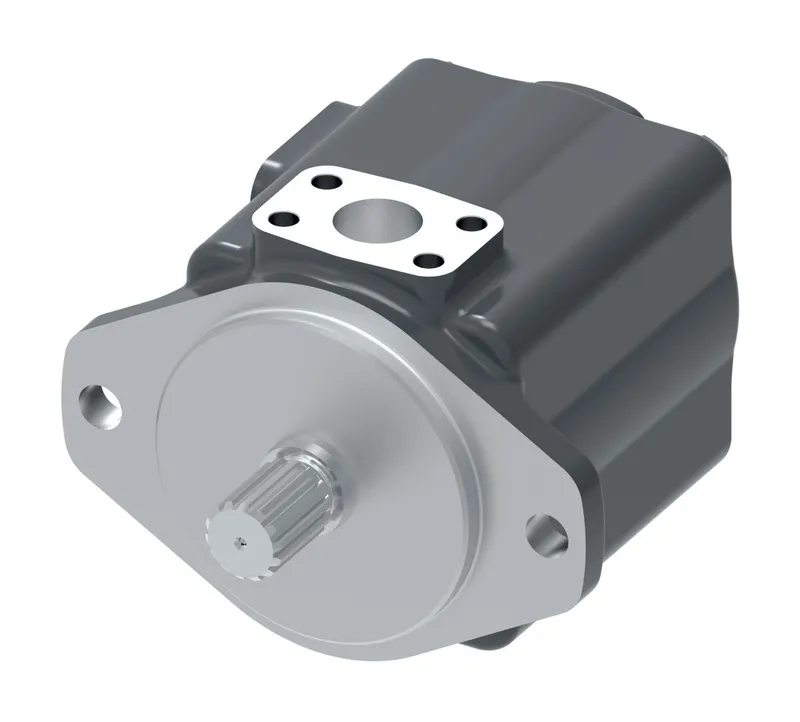

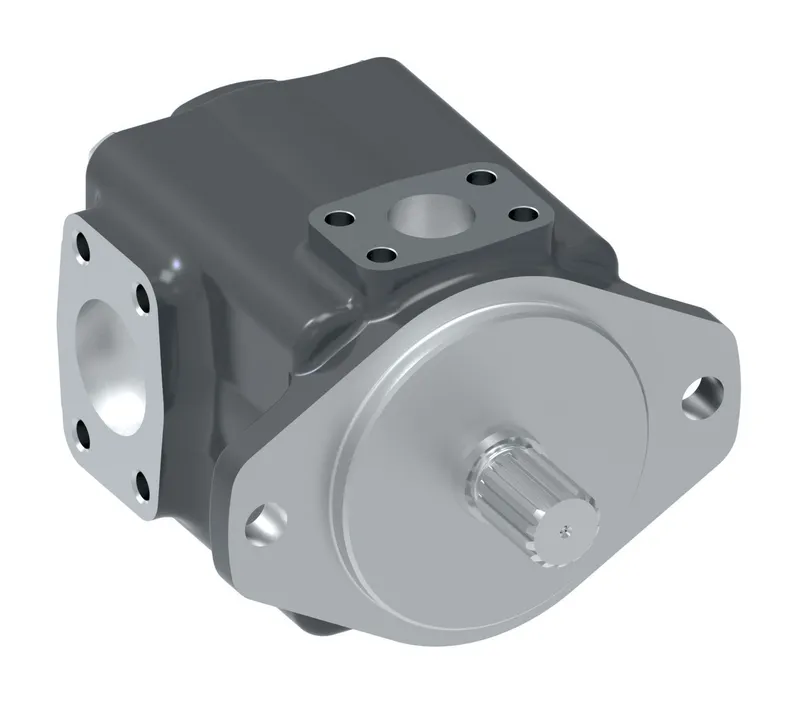

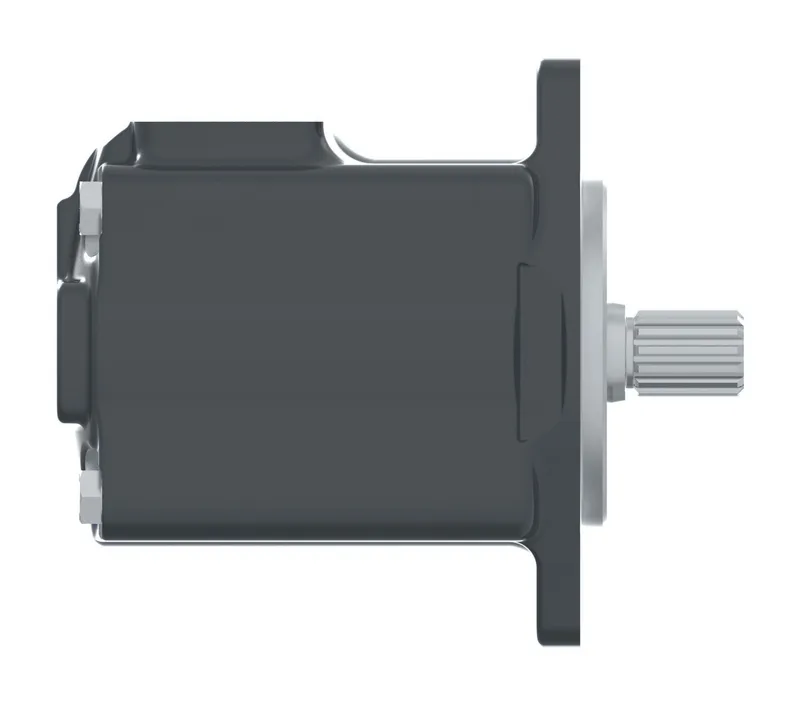

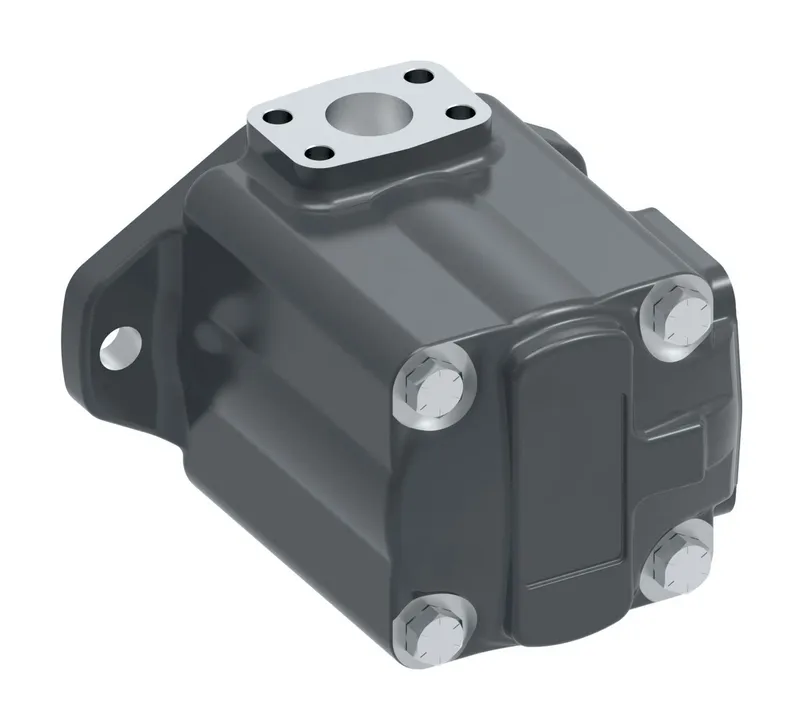

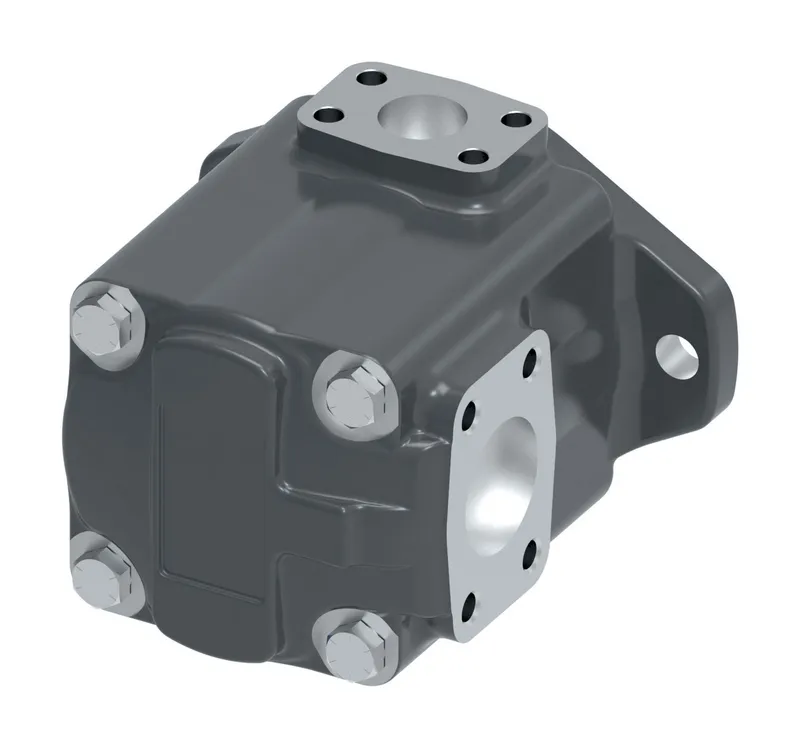

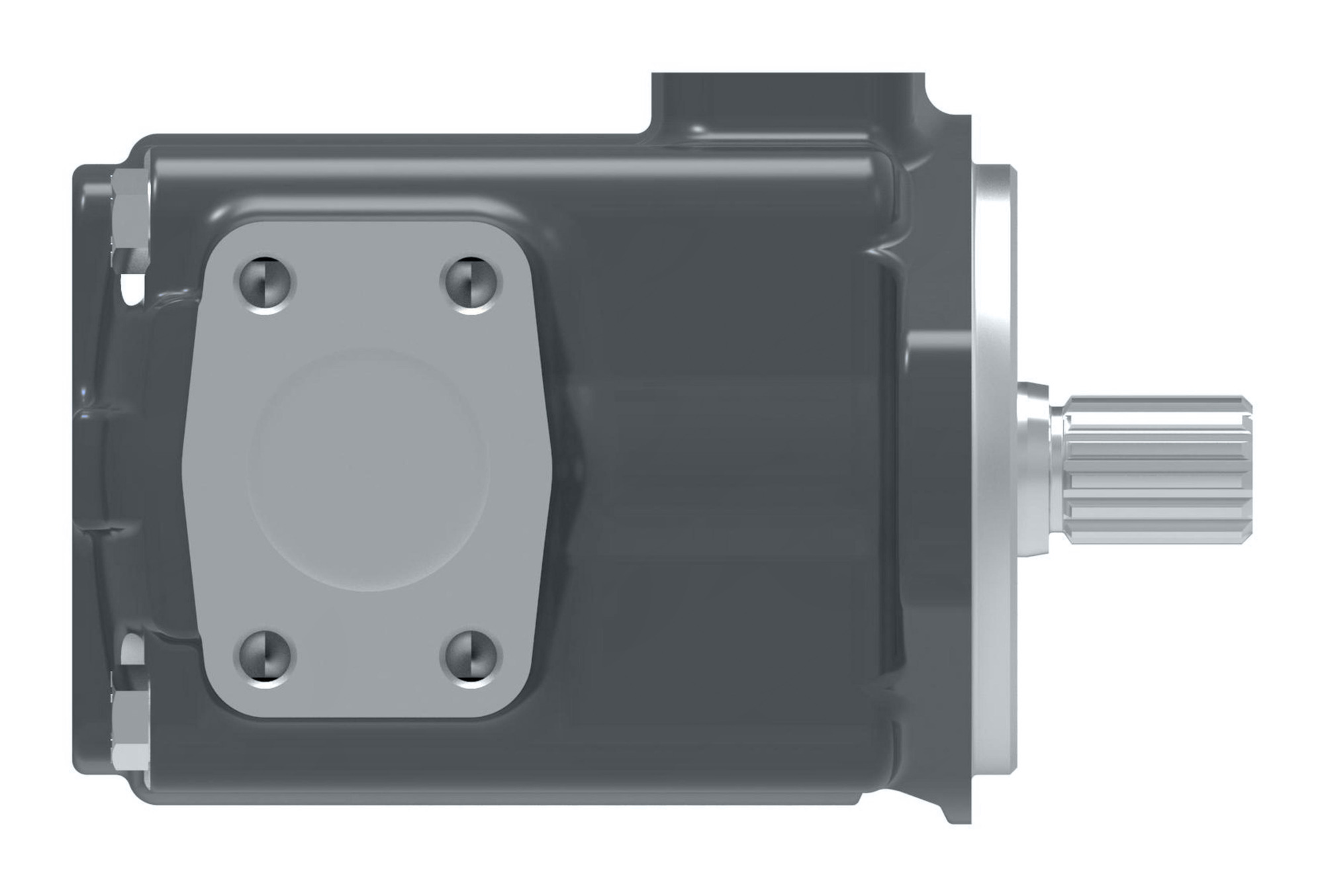

What is the Danfoss 02-125560-AA?

Danfoss 35VQTBPS25A 2203 AA 20, 35VQTBPS25A 2203 AA 20, manufacturer part number 02-125560-AA. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

PUMP TYPEVANE TYPE PUMP VQ-MOBIL
SeriesINTRAVANE PUMP SERIES WITH STANDARD BEARING
Shaft type203 - SAE, STRAIGHT SQ. KEY
ROT FROM SHAFT ENDRIGHT HAND OR CLOCKWISE
THRU DRIVETHRU DRIVE
ADPMTG ORT ADP ENDA ADAPTER- ROTATED 45⁰ CW WITH RESPECT TO PUMP MTG. FLG. B OR C ADAPTER- IN LINE WITH PUMP MTG. FLANGE
BODY MOUNTING FLGSAE J744 MOUNTING FLANGE
BrandVickers by Danfoss
CPLG FOR TAND PUMPSAE SPLINED COUPLING INCLUDED WITH PUMP
DESIGN NO MODDESIGN CODE-SINGLE SS
IPM FRAME SIZE35VQ Single Pump
Model Code 135VQTBPS25A 2203 AA 20
O POS FROM ADP ENDOPPOSITE INLET PORT
ROTATING GROUP CAP25 GPM
SAE PORT CXNINLET-4 BOLT FLG. OUTLET-4 BOLT FLG.
THRU CXN MTG ADPTWO BOLT SAE 'B' FLANGE WITH SPACER FOR PVE 19/21

02-125560-AA: frequently asked questions

When can 02-125560-AA be shipped?

02-125560-AA is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-125560-AA in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-125560-AA and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-125560-AA, subject to availability and destination.
