35VTBS38A 2203AA 22R, 35VTBS38A 2203AA 22R
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Industrial vane pumps |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 02-125509-AAR be shipped?
02-125509-AAR is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 02-125509-AAR in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 02-125509-AAR and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-125509-AAR, subject to availability and destination.

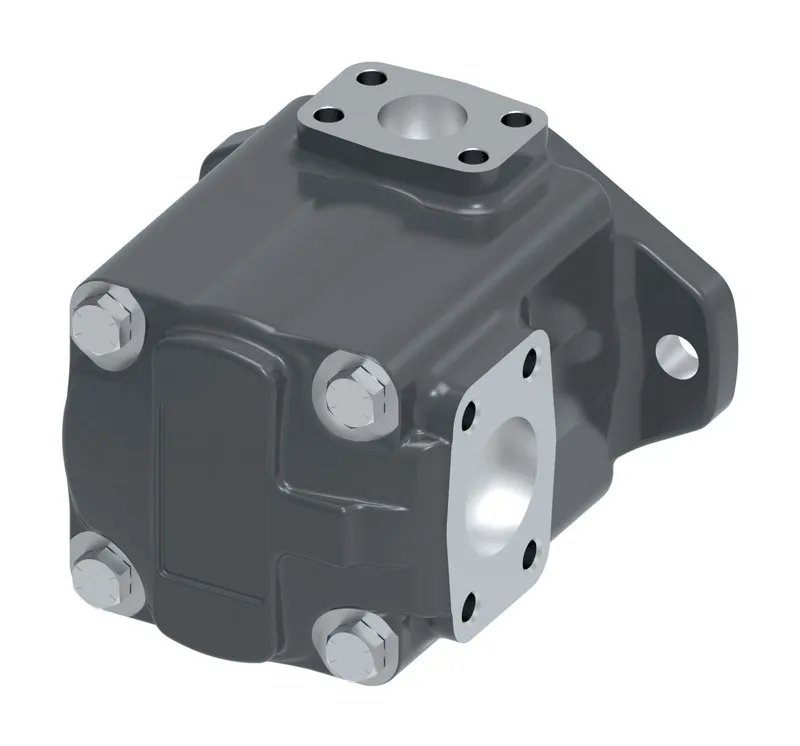

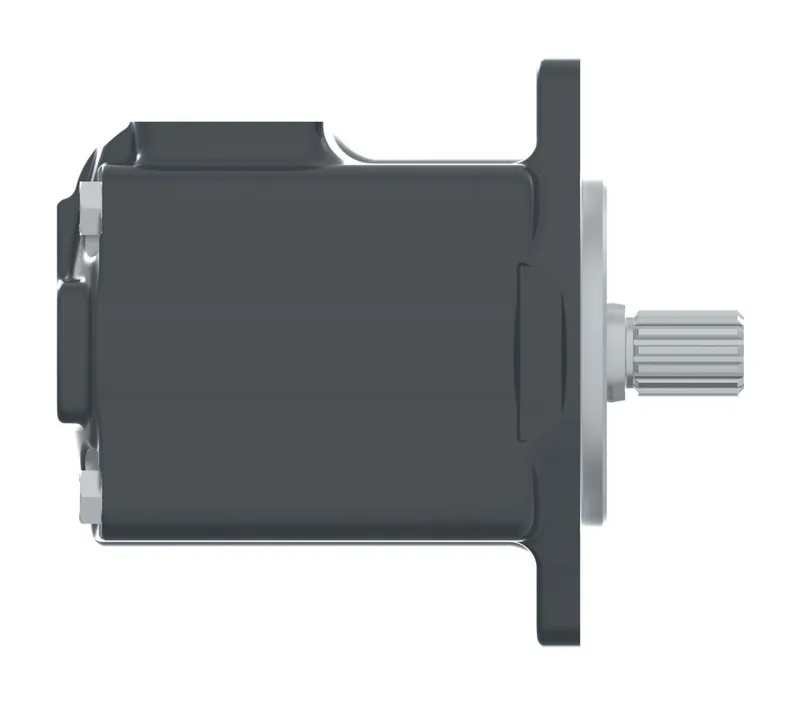

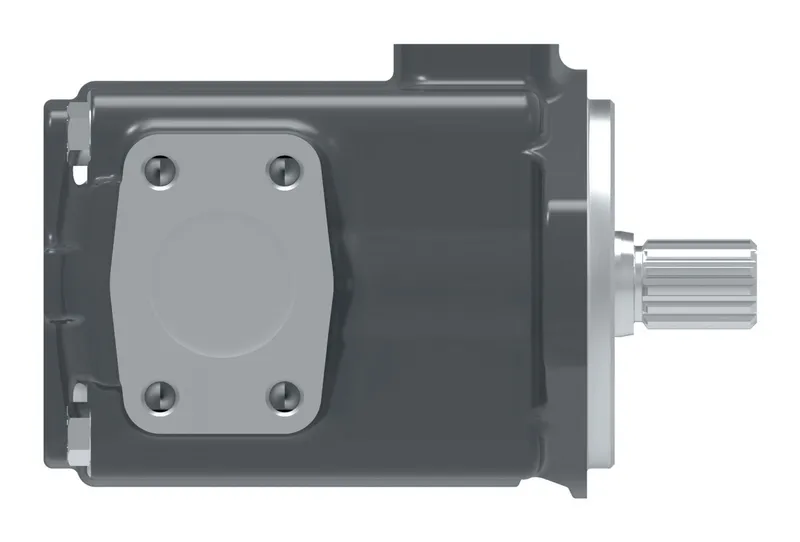

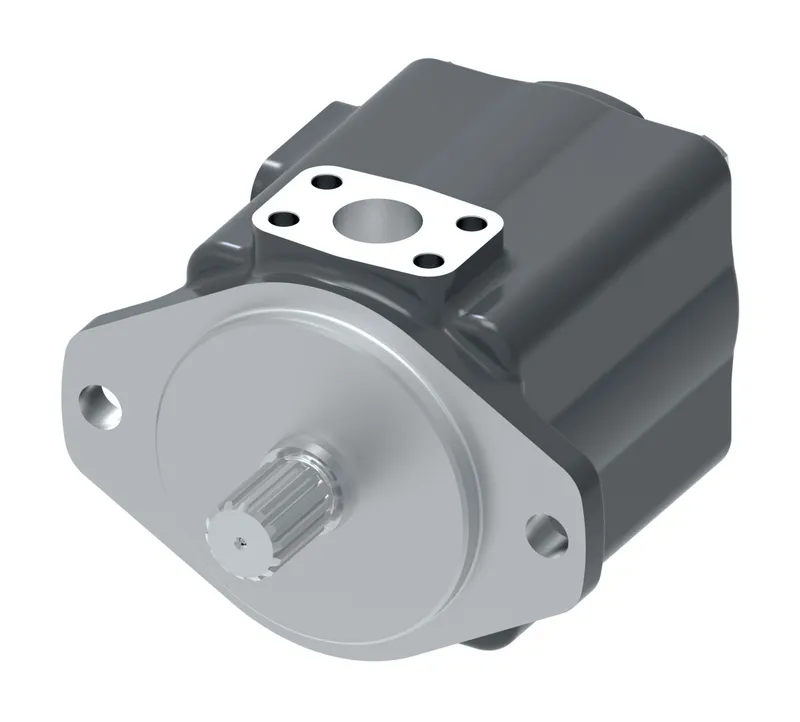

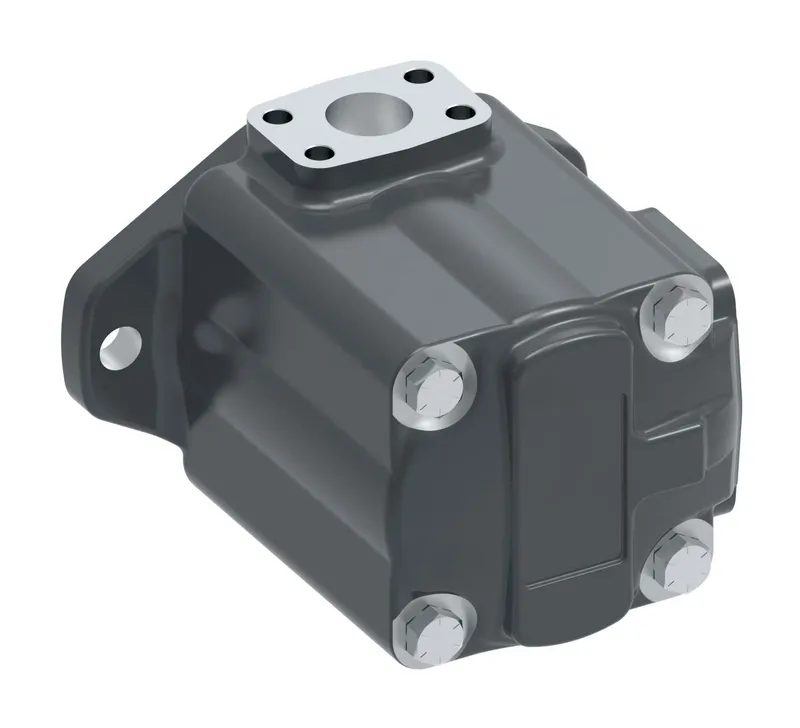

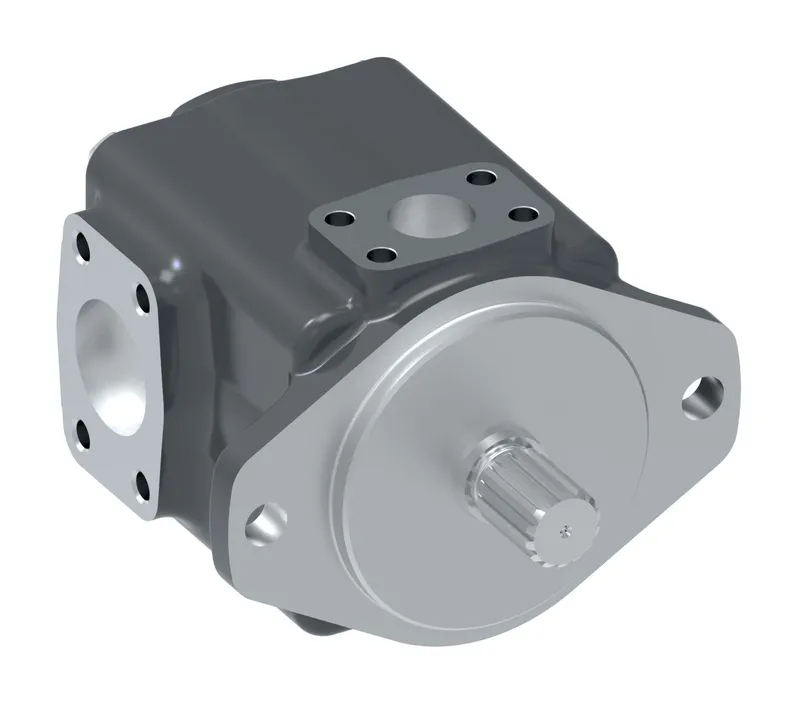

Danfoss 35VTBS38A 2203AA 22R, 35VTBS38A 2203AA 22R, manufacturer part number 02-125509-AAR. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| DESIGN NO | DESIGN NO |
| IPM FRAME SIZE | 35VT Thru-Drive Pump |
| PORT CONNECTION | INLET: 4 BOLT FLANGE OUTLET: 4 BOLT FLANGE |
| PUMP TYPE | VANE PUMP, THRU DRIVE |
| RING CAPACITY | 38 GPM |
| ROTATION FROM SHAFT END | CLOCKWISE |
| Series | SERIES DESIGNATION |
| SHAFT | 203- STRAIGHT KEY, HEAVY DUTY |
| BODY MOUNTING FLANGE | SAE J-744 101-2 MOUNTING FLANGE |
| ADAPTER MTG ORIENTATION | FOR ADAPTER 'A' : ROTATE 45° CW WITH RESPECT TO MOUNTING FLANGE VIEWED FROM ADAPTER END. FOR ADAPTER 'B', 'C': INLINE WITHMOUNTING FLANGE. |
| COUPLING | WITH SPLINE FOR TANDEM PUMP |
| OUTLET POSITION | OUTLET OPPOSITE INLET |
| THRU CONNECTION MTG | TWO BOLT SAE 'B' FLANGE |
| Brand | Vickers by Danfoss |
| Model Code 1 | 35VTBS38A 2203AA 22R |
More Danfoss (Drives) parts

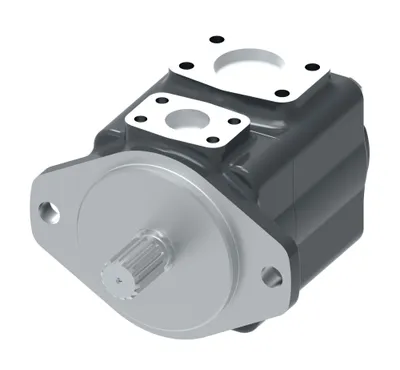

Available on request35VTAS25A 2297AA 22R, 35VTAS25A 2297AA 22R
