Home / Danfoss (Drives) / Industrial vane pumps / Danfoss 02-125446-3

Danfoss (Drives)

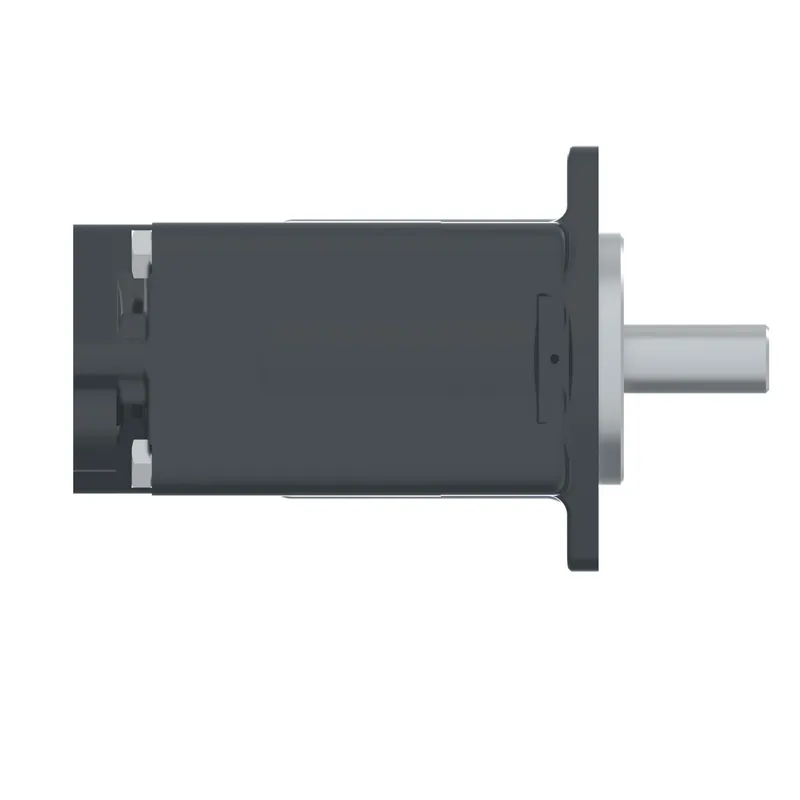

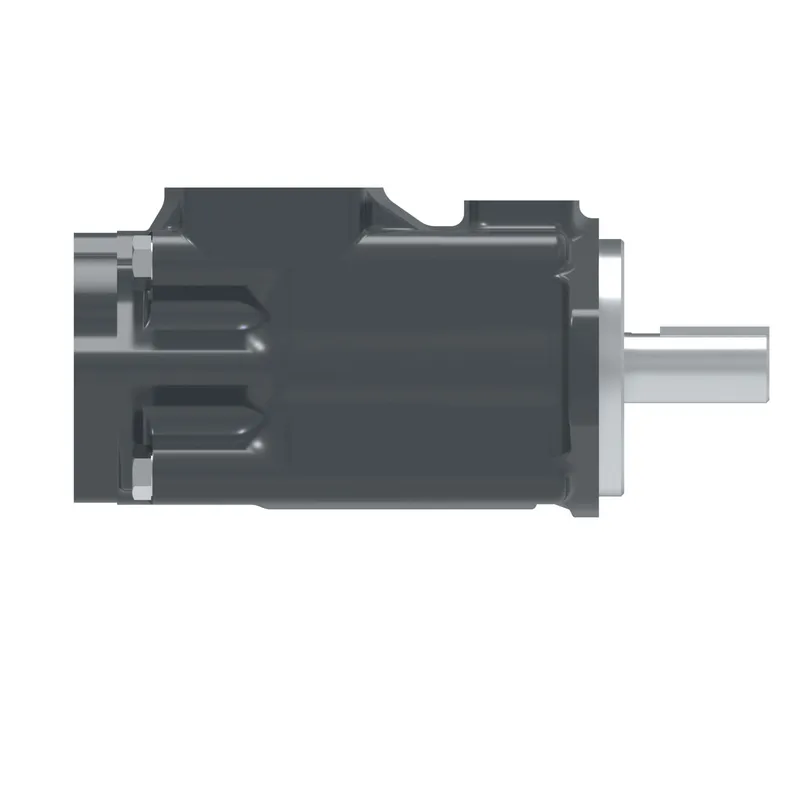

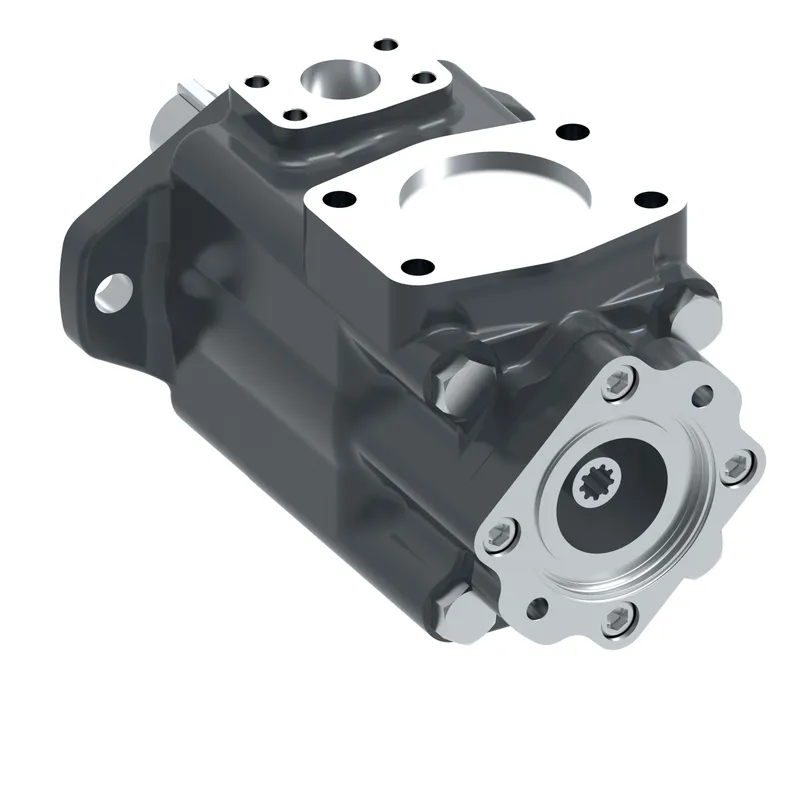

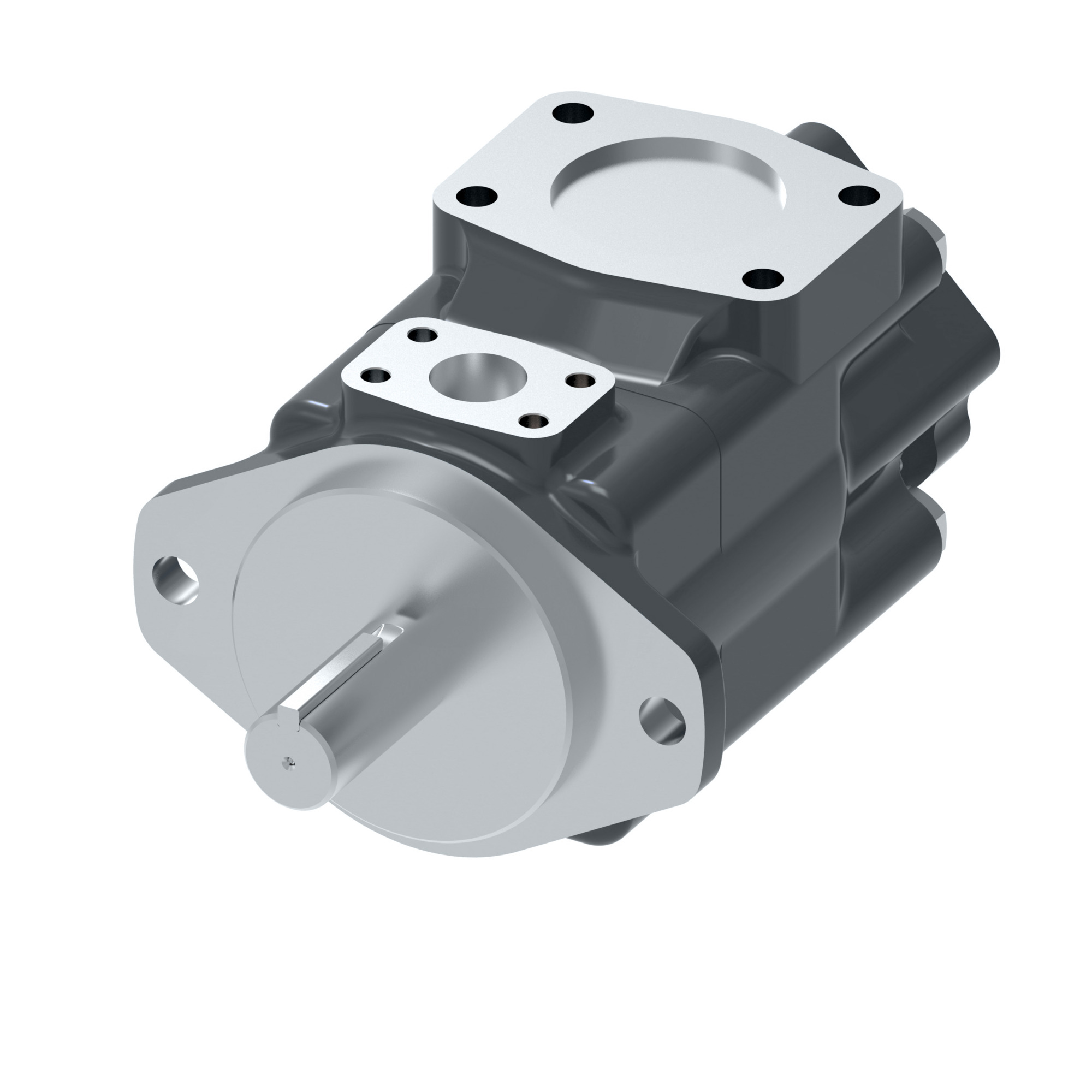

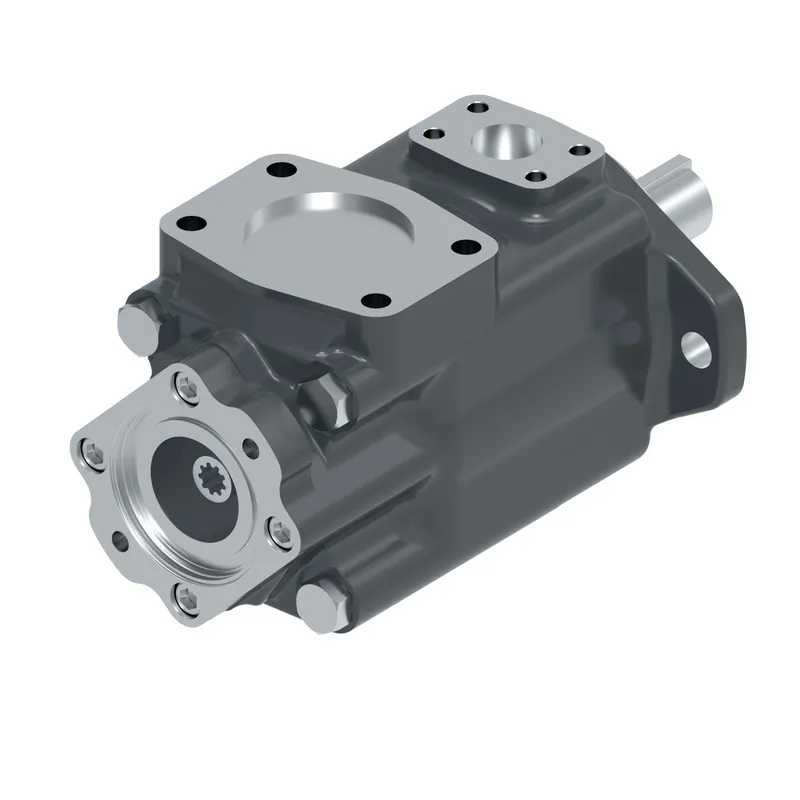

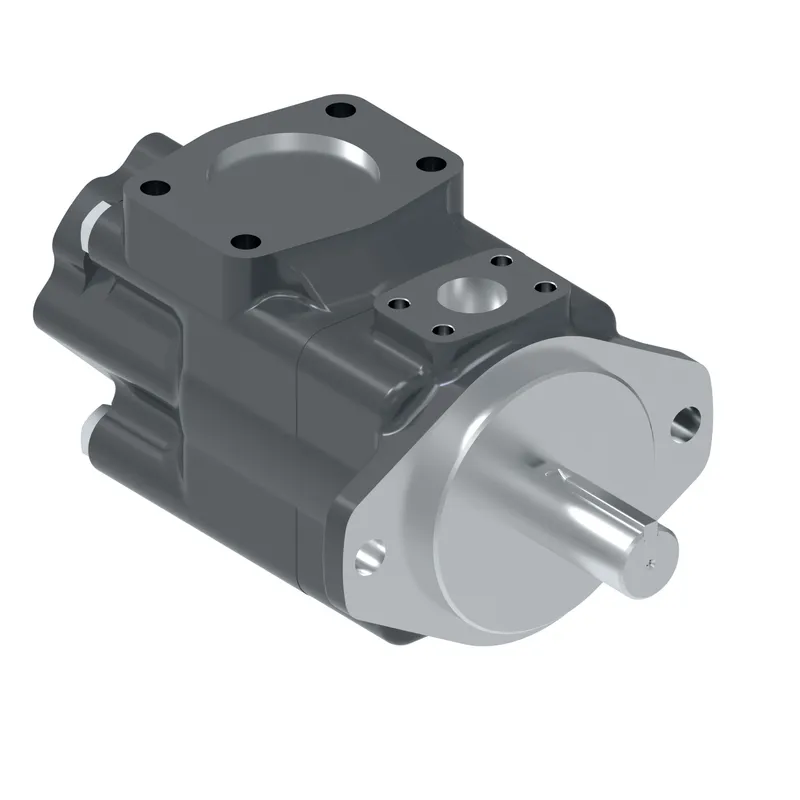

Danfoss 02-125446-3

25VQTBS12A 2297CC 20R, 25VQTBS12A 2297CC 20R

MPN: 02-125446-3
Category: Industrial vane pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-125446-3?

Danfoss 25VQTBS12A 2297CC 20R, 25VQTBS12A 2297CC 20R, manufacturer part number 02-125446-3. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

PUMP TYPE	INTRAVANE PUMP
Series	INTRAVANE PUMP SERIES WITH STANDARD BEARING
Shaft type	297 - SAE B SPLINED, 13 TEETH (DOUBLE SHAFT SEAL)
ROT FROM SHAFT END	RIGHT HAND OR CLOCKWISE
THRU DRIVE	THRU DRIVE
ADPMTG ORT ADP END	A ADAPTER- ROTATED 45⁰ CW WITH RESPECT TO PUMP MTG. FLG. B OR C ADAPTER- IN LINE WITH PUMP MTG. FLANGE
BODY MOUNTING FLG	SAE J744 MOUNTING FLANGE
Brand	Vickers by Danfoss
CPLG FOR TAND PUMP	SAE SPLINED COUPLING INCLUDED WITH PUMP
DESIGN NO MOD	DESIGN CODE-SINGLE SS
IPM FRAME SIZE	25VQ Single Pump
Model Code 1	25VQTBS12A 2297CC 20R
OUTLET POS FROM ADP END	IN LINE WITH INLET PORT
ROTATING GROUP CAP	12 GPM
SAE PORT CXN	INLET-4 BOLT FLG. OUTLET-4 BOLT FLG.
THRU CXN MTG ADP	TWO BOLT SAE 'B' FLANGE
