25VTBS12A-2203AA-22R, 25VTBS12A-2203AA-22R
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Industrial vane pumps |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 02-125387-1 be shipped?
02-125387-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 02-125387-1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 02-125387-1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-125387-1, subject to availability and destination.

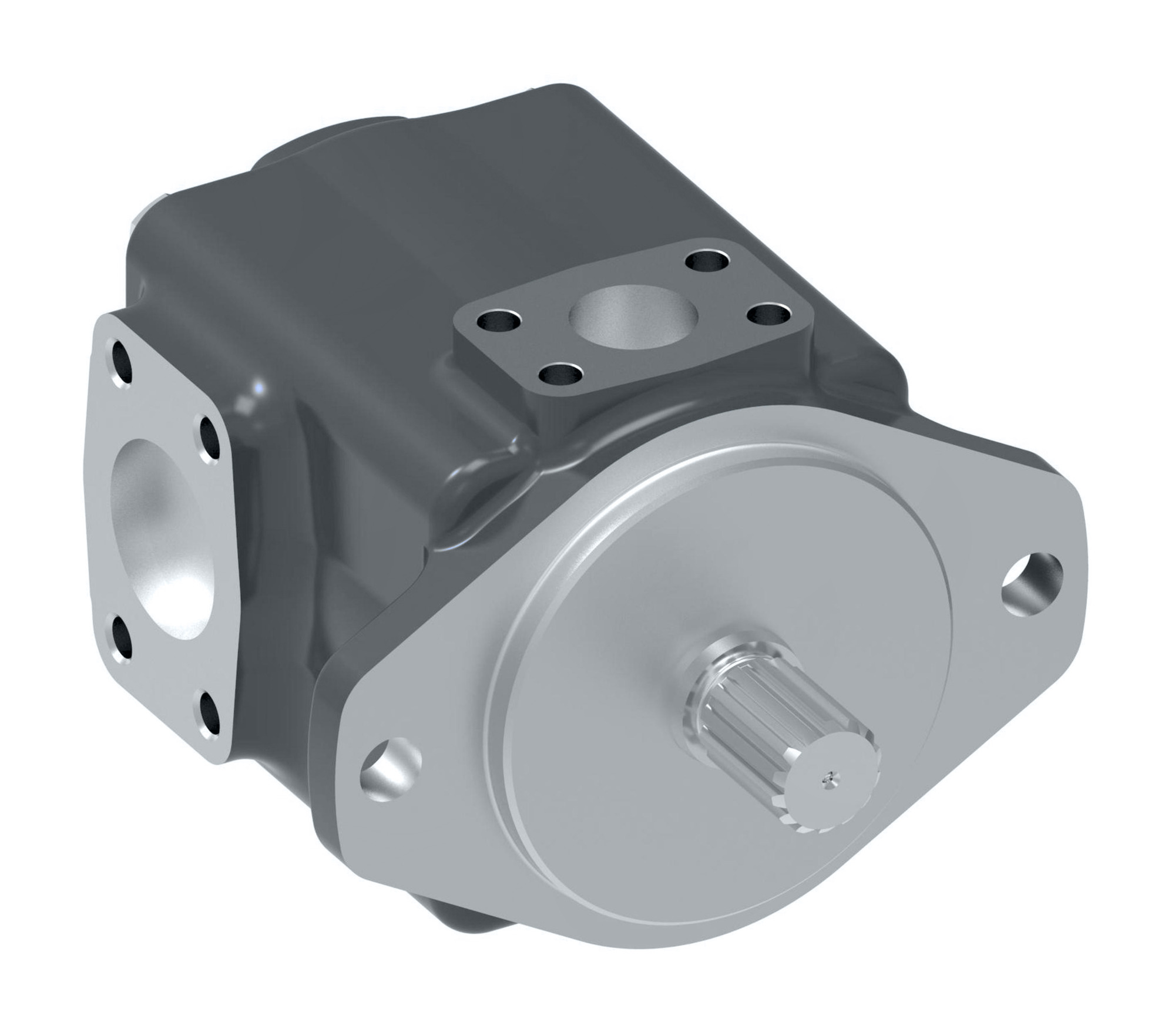

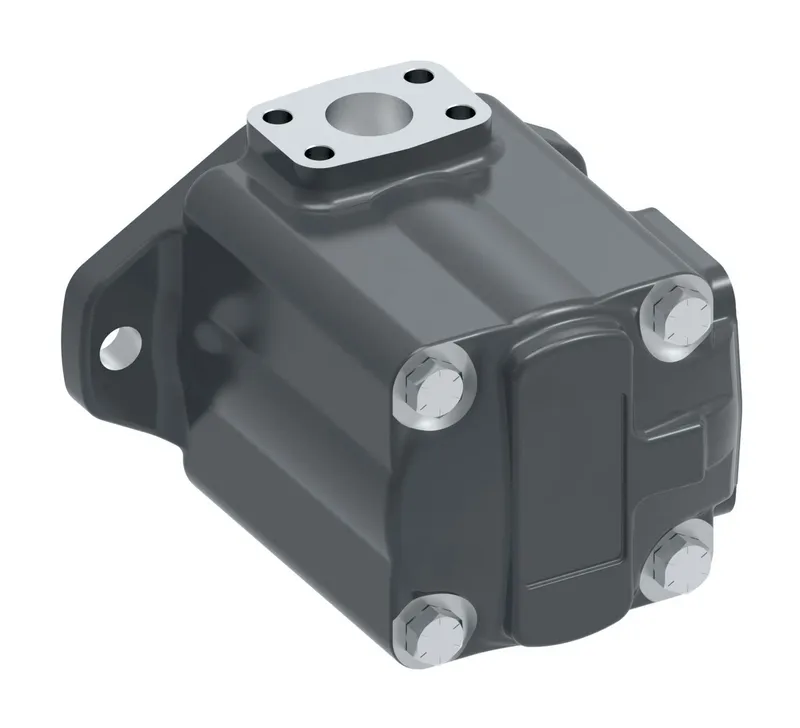

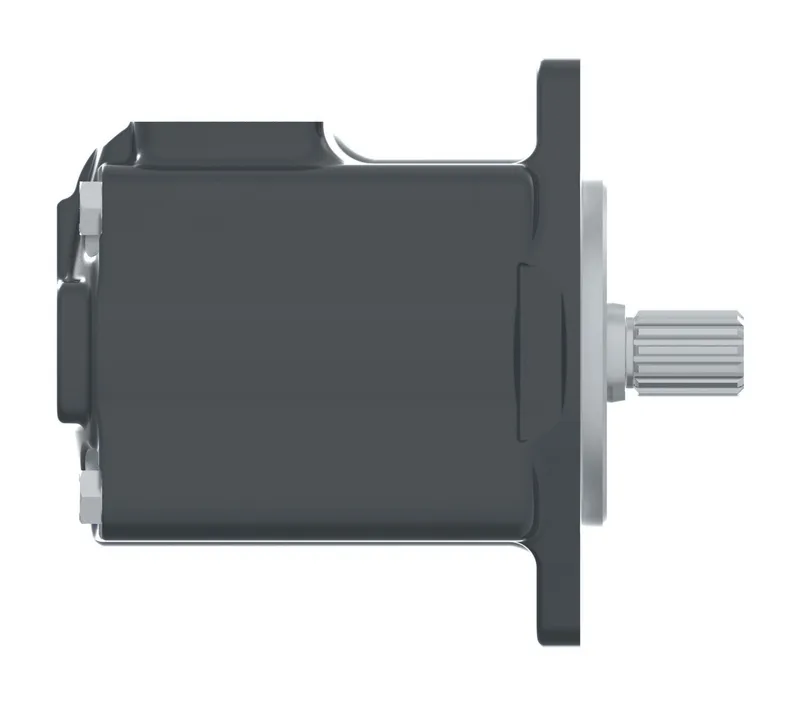

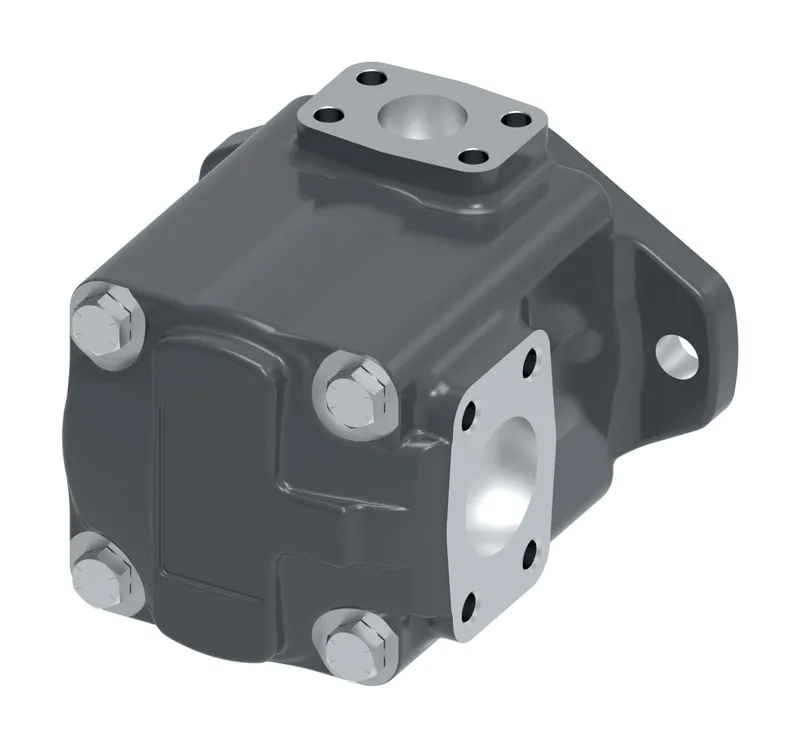

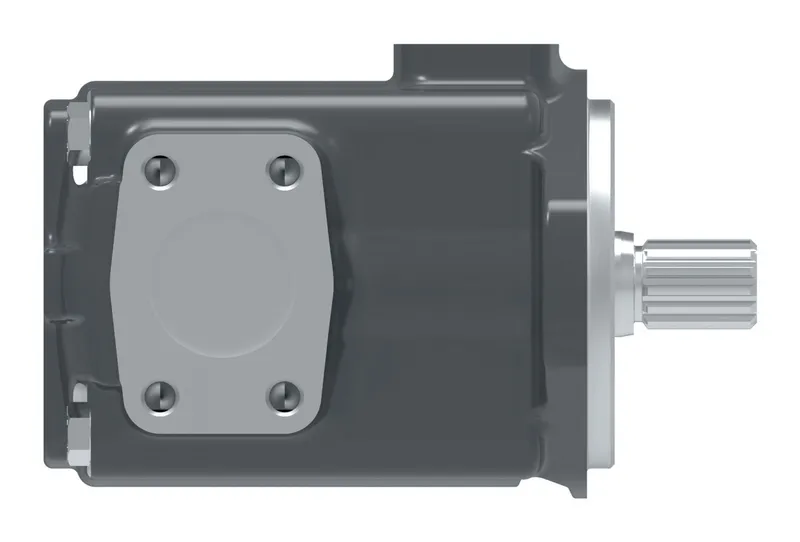

Danfoss 25VTBS12A-2203AA-22R, 25VTBS12A-2203AA-22R, manufacturer part number 02-125387-1. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| DESIGN NO | DESIGN NO - 22 |
| IPM FRAME SIZE | 25VT Thru-Drive Pump |
| PORT CONNECTION | INLET: 4 BOLT FLANGE OUTLET: 4 BOLT FLANGE |
| PUMP TYPE | VANE PUMP, THRU DRIVE |
| RING CAPACITY | 12 GPM |
| ROTATION FROM SHAFT END | CLOCKWISE |
| Series | SERIES DESIGNATION |
| SHAFT | 203- SAE'BBB SQUARE KEY |
| BODY MOUNTING FLANGE | SAE J-744 101-2 MOUNTING FLANGE |
| ADAPTER MTG ORIENTATION | FOR ADAPTER 'A' : ROTATE 45° CW WITH RESPECT TO MOUNTING FLANGE VIEWED FROM ADAPTER END. FOR ADAPTER 'B': INLINE WITH MOUNTINGFLANGE |
| COUPLING | WITH SPLINE FOR TANDEM PUMP |
| OUTLET POSITION | OUTLET OPPOSITE INLET |
| THRU CONNECTION MOUNTING | TWO BOLT SAE 'B' FLANGE |
| Brand | Vickers by Danfoss |
| Model Code 1 | 25VTBS12A-2203AA-22R |
