Danfoss 02-120075

DGMFN 5 X A2K B2K 30, DGMFN5XA2KB2K30

MPN: 02-120075
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

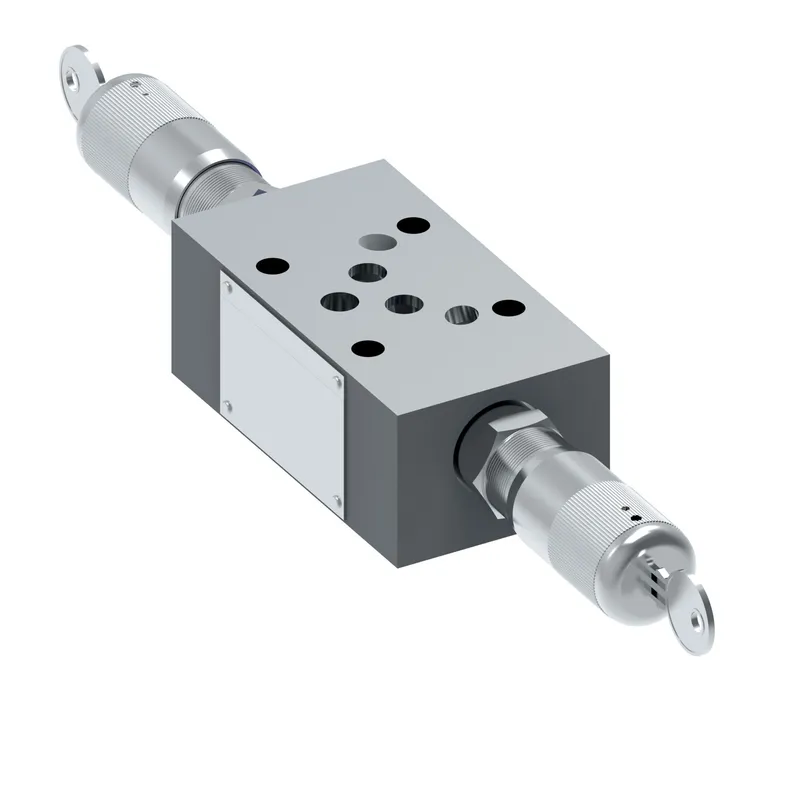

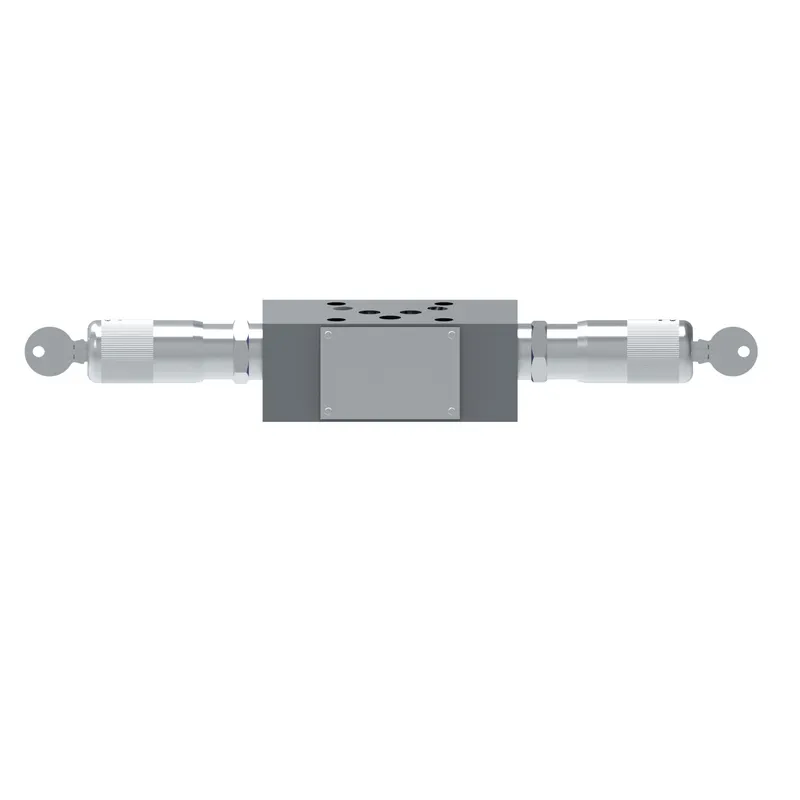

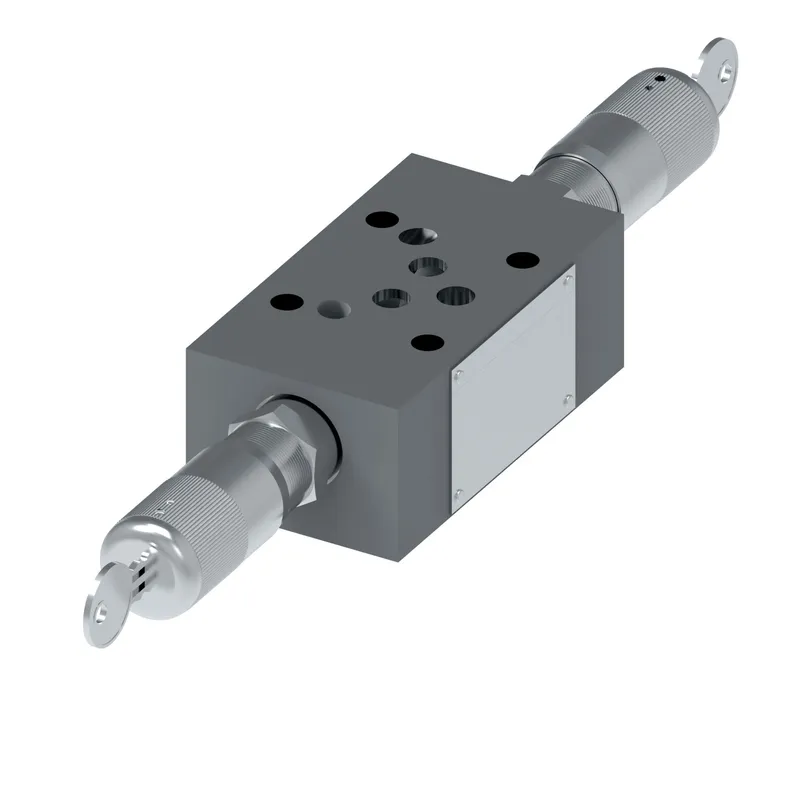

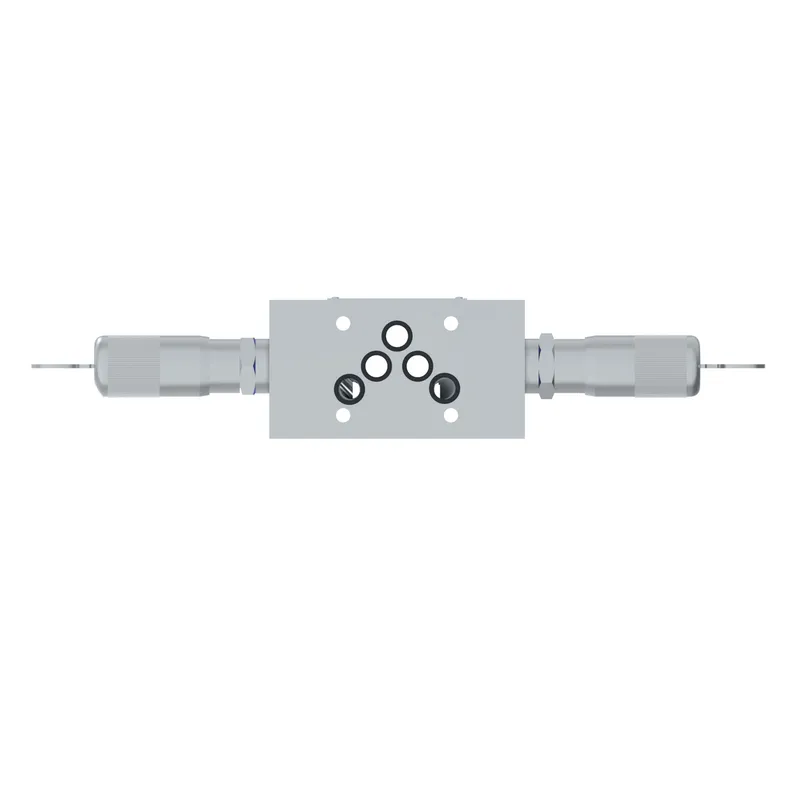

What is the Danfoss 02-120075?

Danfoss DGMFN 5 X A2K B2K 30, DGMFN5XA2KB2K30, manufacturer part number 02-120075. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation type	Pressure operated
Adjustment type	Micrometer with keylock
Brand	Vickers by Danfoss
Control type 1	Standard control
Control type 2	Standard control
Design Series	30 Series
Direction of flow	Meter-in control
Flow rate upto LPM	120
Flow rate upto USGPM	32.0
Fluid cleanliness	19/17/14 micron
Fluid compatibility	Petroleum oils
Interface	ISO4401-05
Location control function 1	Line A
Location control function 2	Line B
Maximum pressure upto bar	315
Maximum pressure upto psi	4500
Model Code 1	DGMFN5XA2KB2K30
Performance	Standard
Port operated upon	A cylinder port
Product height in	1.970
Product height mm	50.038
Product length in	16.060
Product length mm	407.924
Product width in	2.820
Product width mm	71.628 mm
Seal type	Viton
Special features	None
Valve mount type	Subplate/manifold mounted
Valve type	Flow control valve
Working temp max C	50
Working temp max F	120
Working temp min C	20
Working temp min F	70
