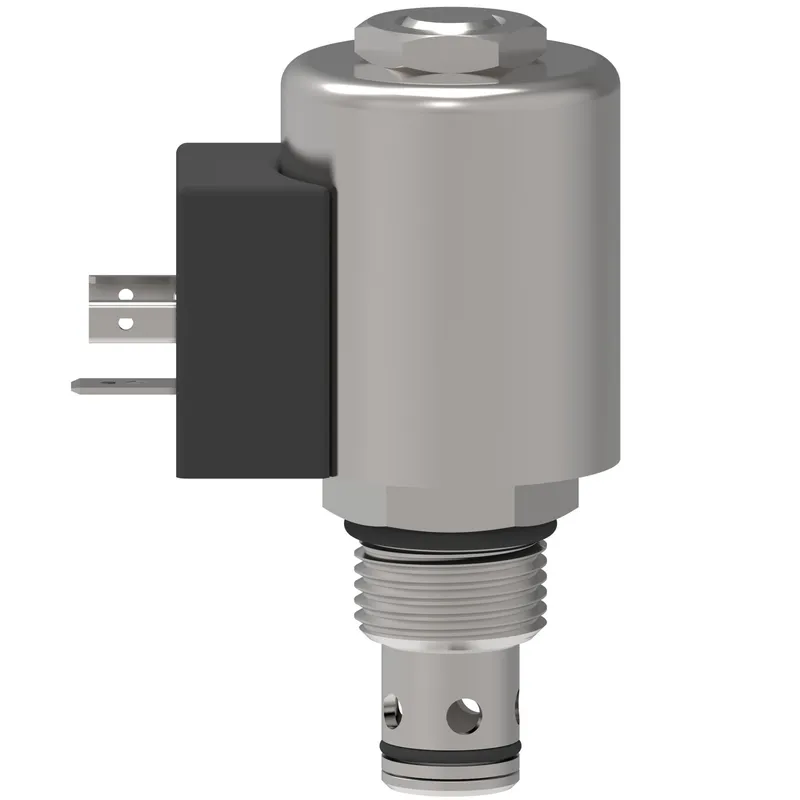

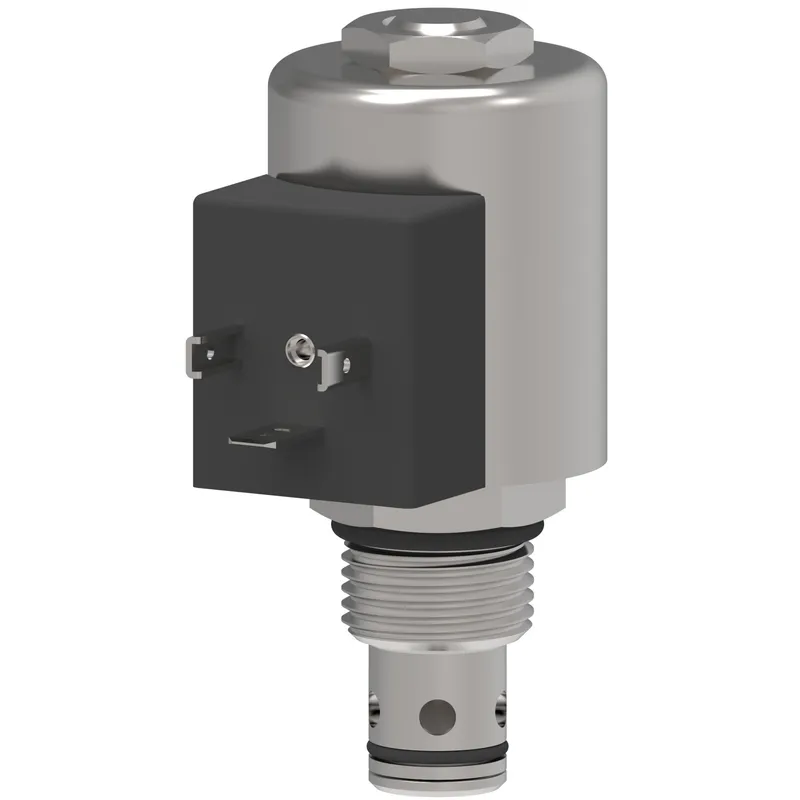

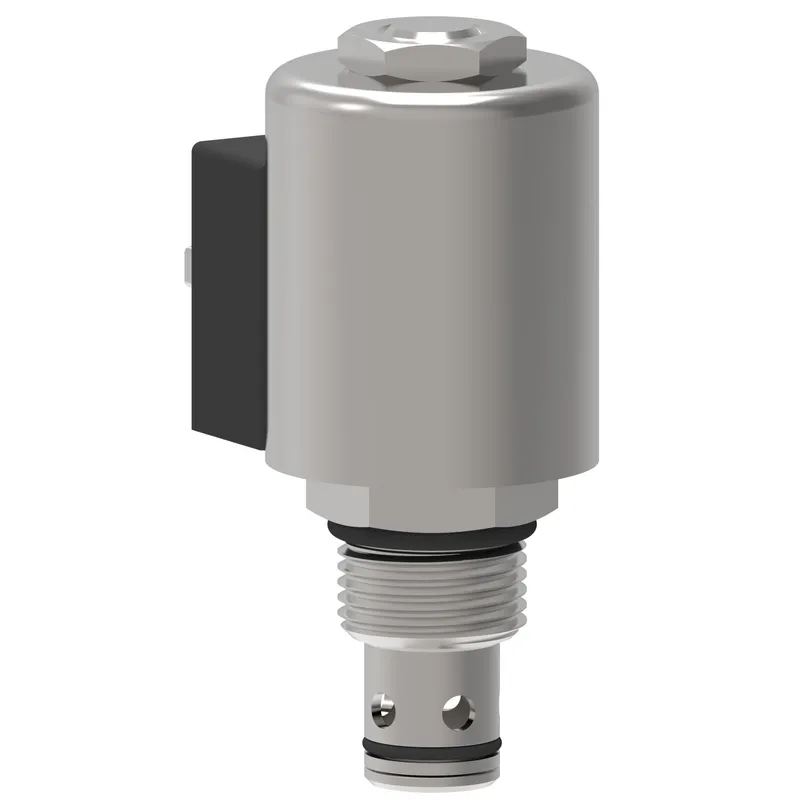

Danfoss 02-113063

Cartridge valve

MPN: 02-113063
Category: Cartridge valves

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-113063?

Danfoss SV3-10V-0-0-115AG, SV3-10V-O-0-115AG, manufacturer part number 02-113063. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Brand	Vickers by Danfoss
Cavity	C-10-2
Coil series	J Series
Coil termination	DIN 43650
Diode	No
Flow rate GPM	12.00
Flow rate LPM	45.000
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Solenoid Valve
Housing	No
Installation type	Screw-in Cartridge
Leakage	5 drops/min, max @ 350 bar
Model Code 1	SV3-10V-O-0-115AG
Operating temperature	-40 C to 120 C (-40 to 248 F)
Operation	Electrically operated
Override type	None
Port size	None
Port type	Cartridge Only
Pressure rating BAR	210.00
Pressure rating PSI	3000.00
Product height in	1.930
Product height mm	49.022
Product length in	4.000
Product length mm	101.600
Product width in	1.530
Product width mm	38.862 mm
Recommended filtration level	18/16/13
Seal type	Viton
Special features	None
Style	2-Way, 2-Position, Poppet, NO
Voltage	115 V
Voltage type	AC
