Danfoss 02-113038

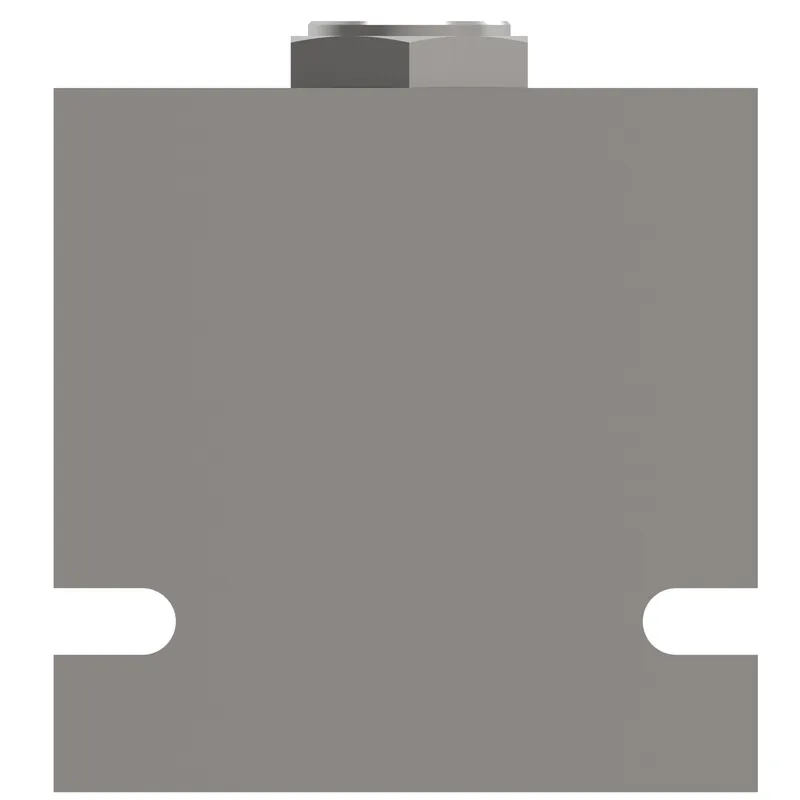

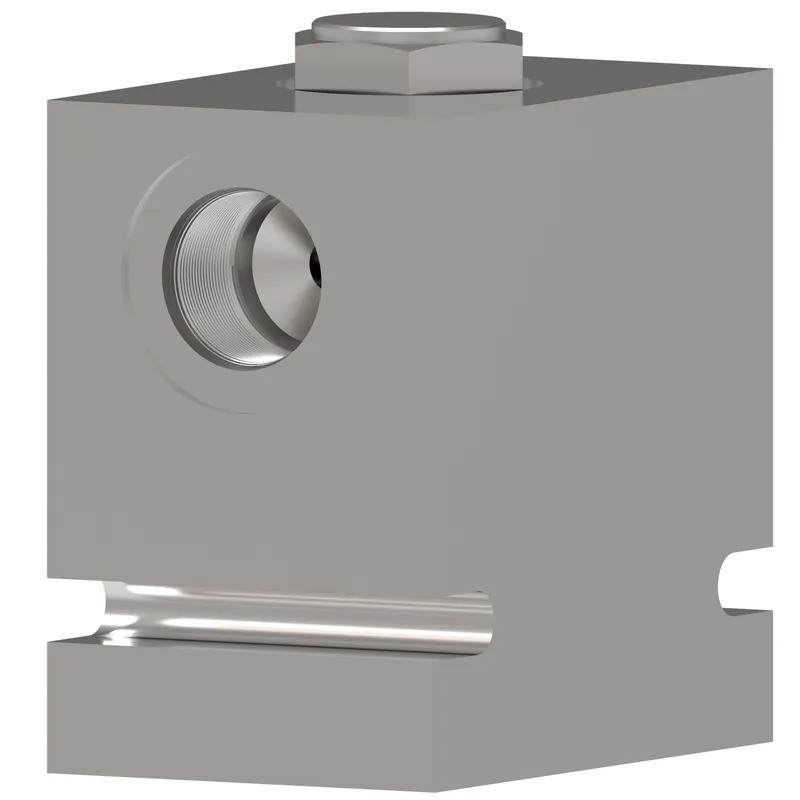

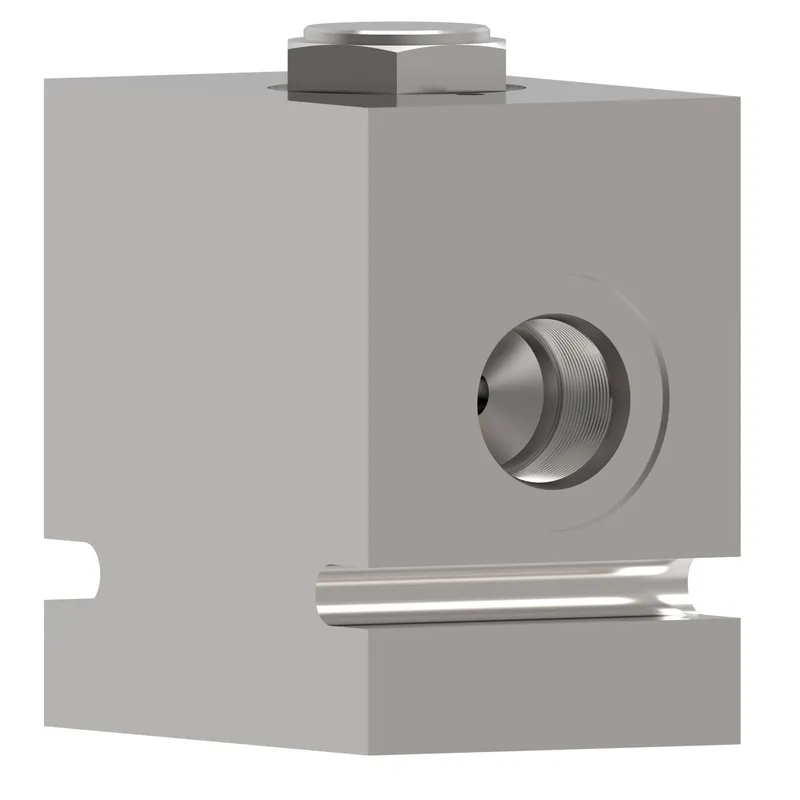

FDC1-16-12T-88, FDC1-16-12T-88

MPN: 02-113038
Category: Cartridge valves

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-113038?

Danfoss FDC1-16-12T-88, FDC1-16-12T-88, manufacturer part number 02-113038. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Adjustment type	No Operator
Brand	Vickers by Danfoss
Cavity	C-16-4
Flow rate GPM	47.000
Flow rate LPM	178.00
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Flow Divider Combiner
Housing	Yes
Housing material	Aluminum
Installation type	Line Mounted
Maximum flow rate LPM	178.00
Minimum flow rate GPM	47.000
Minimum flow rate LPM	178.00
Model Code 1	FDC1-16-12T-88
Number of housing ports	4
Number of valve ports	4
Operating temperature	-40 C to 120 C (-40 to 248 F)
Port size	3/4"
Port type	SAE
Pressure rating BAR	210.00
Pressure rating PSI	3000.00
Product height in	5.560
Product height mm	141.224
Product length in	4.000
Product length mm	101.600
Product width in	1.500
Product width mm	38.100 mm
Rec filtration level	18/16/13
Seal type	Buna-N
Special features	None
Spool seal	No
Style	Spool
Torque alu cavity	108-122 Nm
Torque steel cavity	139-149 Nm
