Danfoss 02-112788

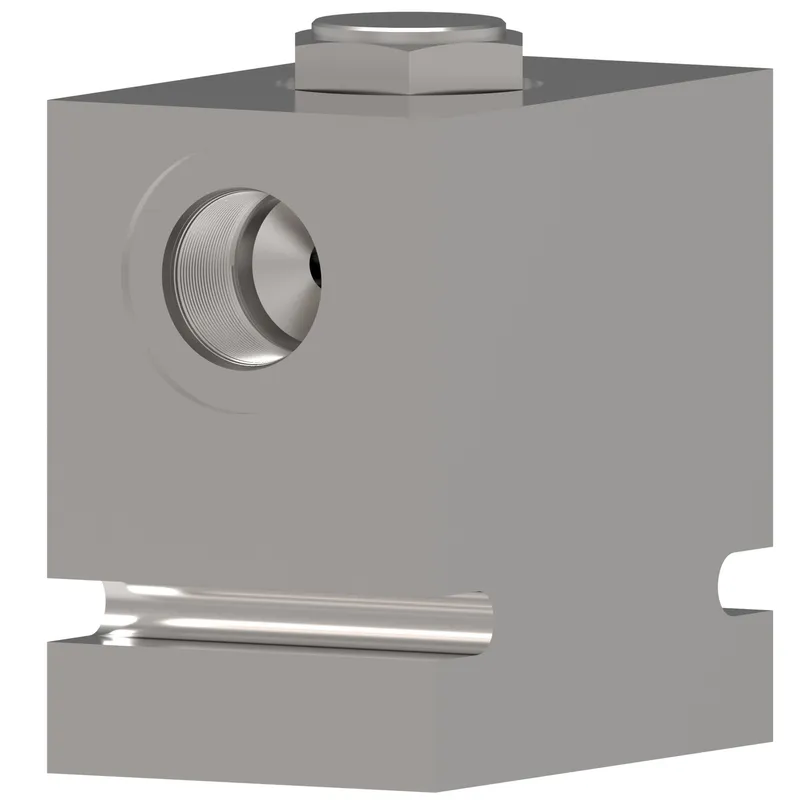

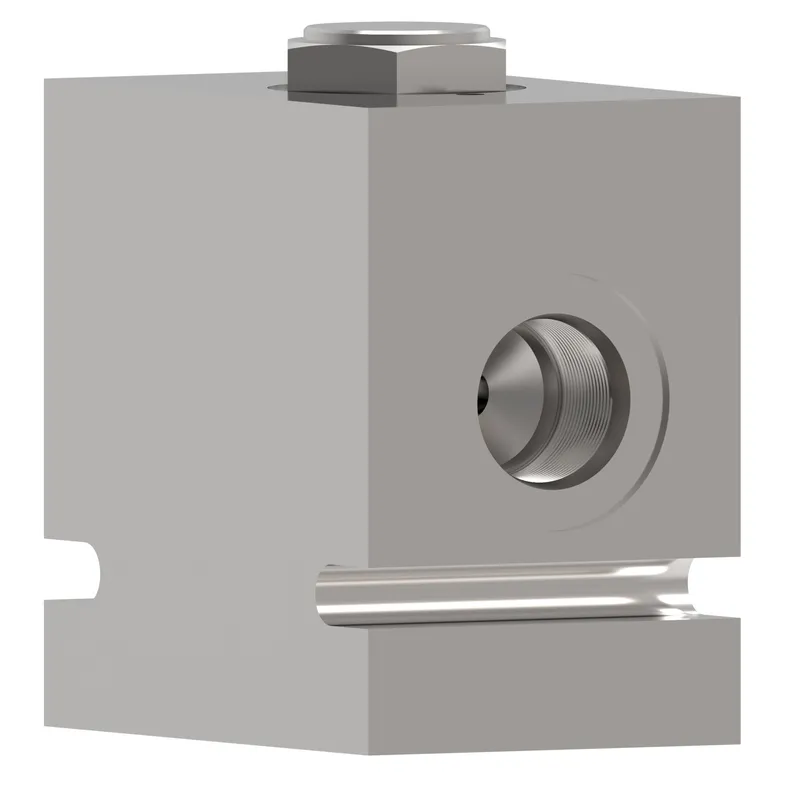

CV2-20-P-16T-5 CHECK VALVE POPPET TYPE, CV2-20-P-A-16T-5

MPN: 02-112788
Category: Cartridge valves

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-112788?

Danfoss CV2-20-P-16T-5 CHECK VALVE POPPET TYPE, CV2-20-P-A-16T-5, manufacturer part number 02-112788. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Brand	Vickers by Danfoss
Cavity	C-20-2
Cracking pressure BAR	0.30000000
Cracking pressure PSI	5.00000000
Flow rate GPM	11.80
Flow rate LPM	45.000
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Check Valve
Housing	Yes
Housing material	Aluminum
Installation type	Screw-in Cartridge
Leakage	0.3 cc/min
Model Code 1	CV2-20-P-A-16T-5
Number of housing ports	2
Number of valve ports	2
Operating temperature	-40 C to 120 C (-40 to 248 F)
Operation	Direct acting
Pilot piston seal	No
Port size	3/8"
Port type	SAE
Pressure rating BAR	210.00
Pressure rating PSI	3000.00
Product height in	4.550
Product height mm	115.570
Product length in	4.000
Product length mm	101.600
Product width in	1.870
Product width mm	47.498 mm
Recommended filtration level	18/13
Seal type	Buna-N
Special features	None
Style	Poppet

02-112788: frequently asked questions

When can 02-112788 be shipped?

02-112788 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-112788 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-112788 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-112788, subject to availability and destination.
