Danfoss 02-108784
F3 CVU 25 EFP1 B29 45 31, F3CVU25EFP1B294531
- MPN
- 02-108784
- Category
- Industrial valves
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Danfoss 02-108784?

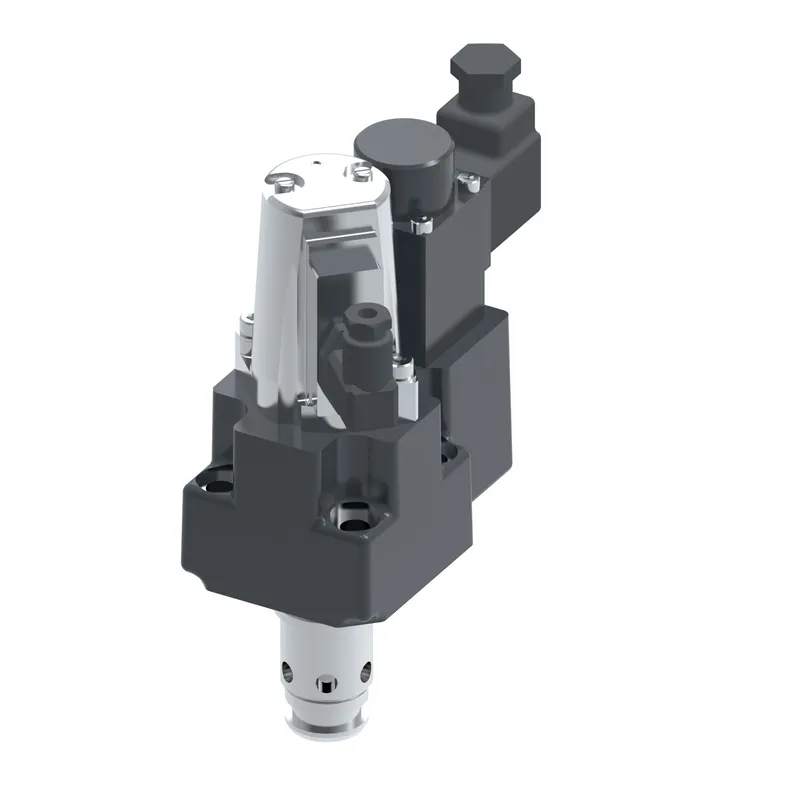

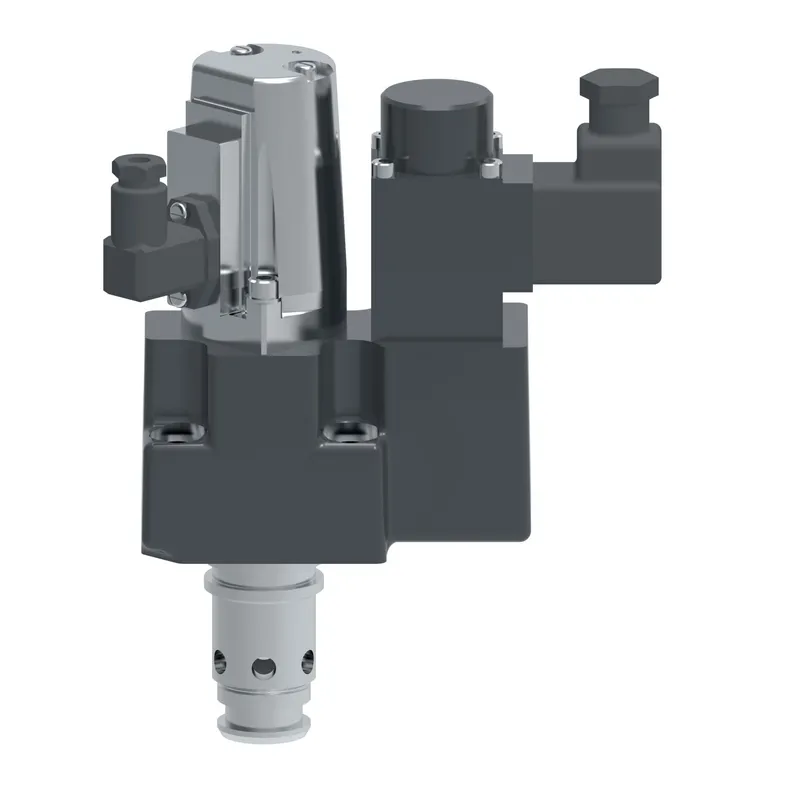

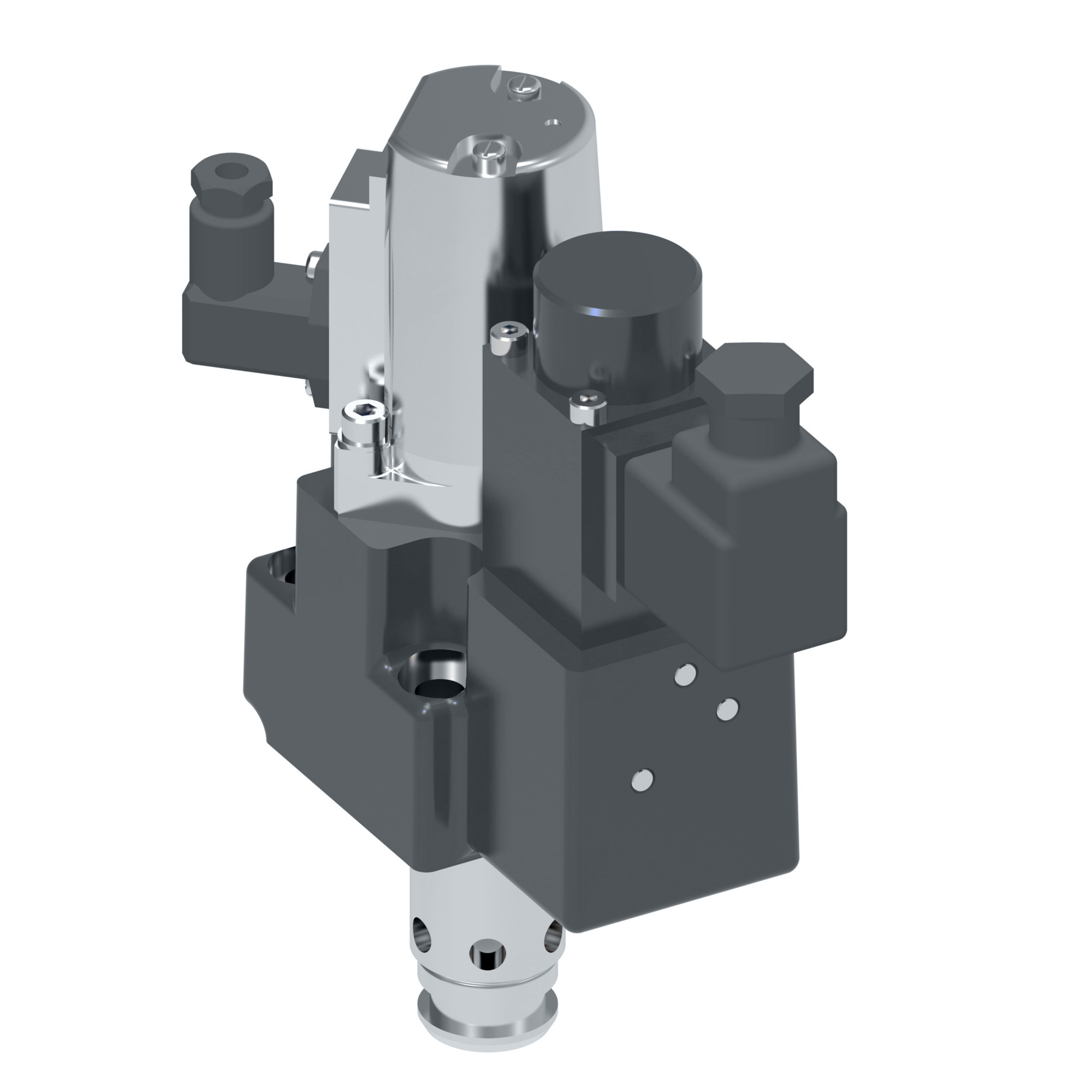

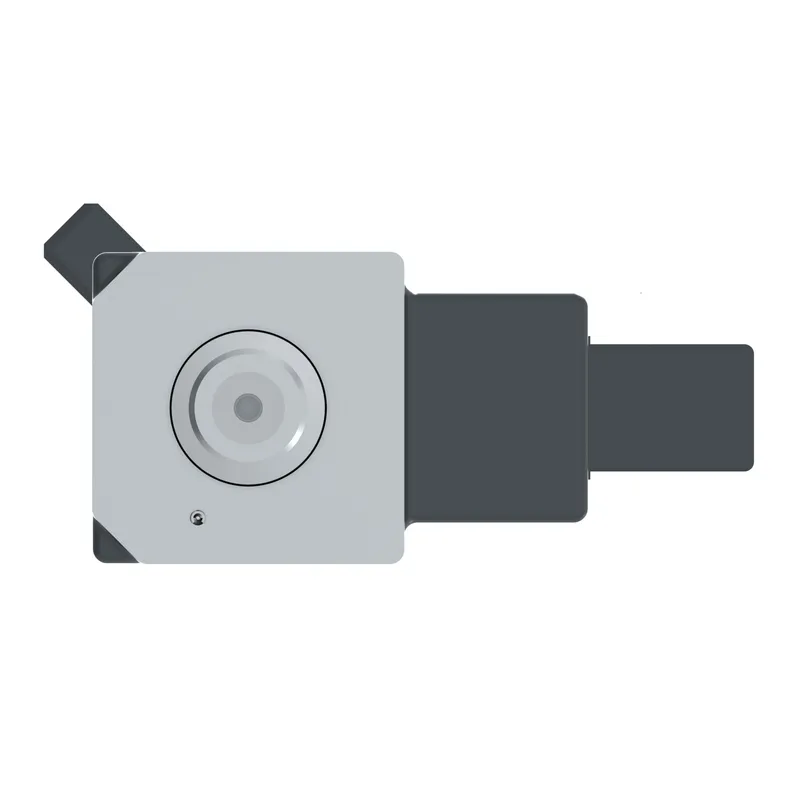

Danfoss F3 CVU 25 EFP1 B29 45 31, F3CVU25EFP1B294531, manufacturer part number 02-108784. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Adjustment | No |
| Brand | Vickers by Danfoss |
| Cover type | Electrohyd proportional throttle valve |
| Cracking pressure BAR | 2.50 |
| Cracking pressure PSI | 36.0 |
| Design Series | 31 Design |
| Flow rate LPM | 450 |
| Flow rate USgpm | 119.0 |
| Fluid cleanliness | 18/16/13 micron |
| Fluid compatibility | Phosphate Ester and other Synthetic Fire Resistant Fluids |
| Gauge port thread | BSPF |
| Insert ratio | 1:1.4 |
| Interface | No |
| Leakage | Standard |
| Model Code 1 | F3CVU25EFP1B294531 |
| Pilot port orientation | ISO |
| Pressure rating Bar | 315 |
| Pressure rating PSI | 4500 |
| Product height in | 7.850 |
| Product height mm | 199.390 |
| Product length in | 5.850 |
| Product length mm | 148.590 |
| Product width in | 3.350 |
| Product width mm | 85.090 mm |
| Seal material | Viton |
| Size | NG 25 |
| Special feature | None |
| Spool position sensor | No |
| Valve type | Cartridge valve unit |
| Valvistor | No |
| Working temp max C | 70 |
| Working temp max F | 158 |
| Working temp min C | -20 |
| Working temp min F | -4 |
