Danfoss (Drives)

Danfoss 02-102457-3

Industrial vane pump

MPN: 02-102457-3
Category: Industrial vane pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-102457-3?

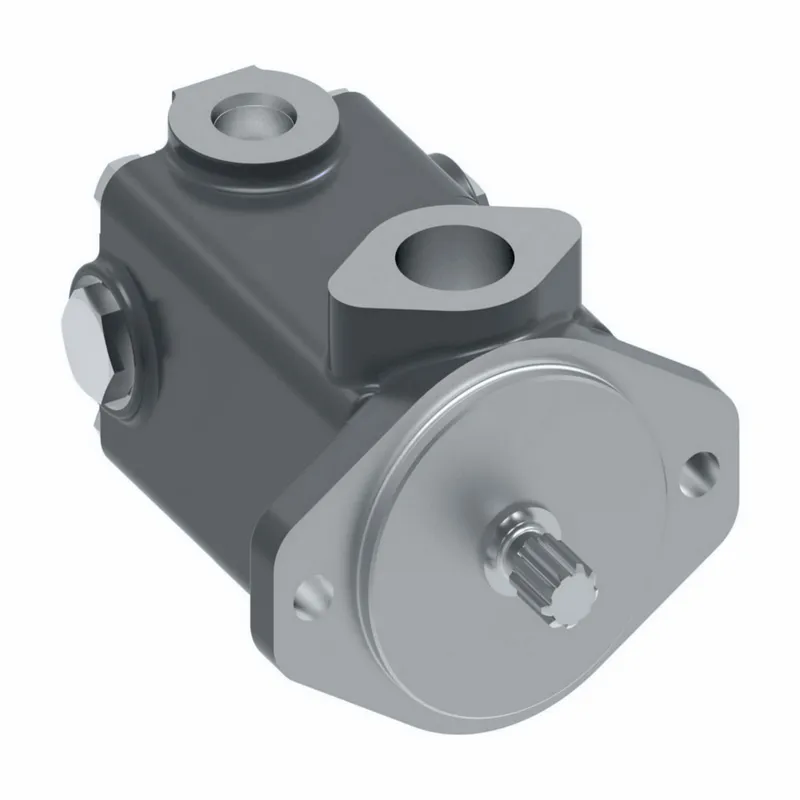

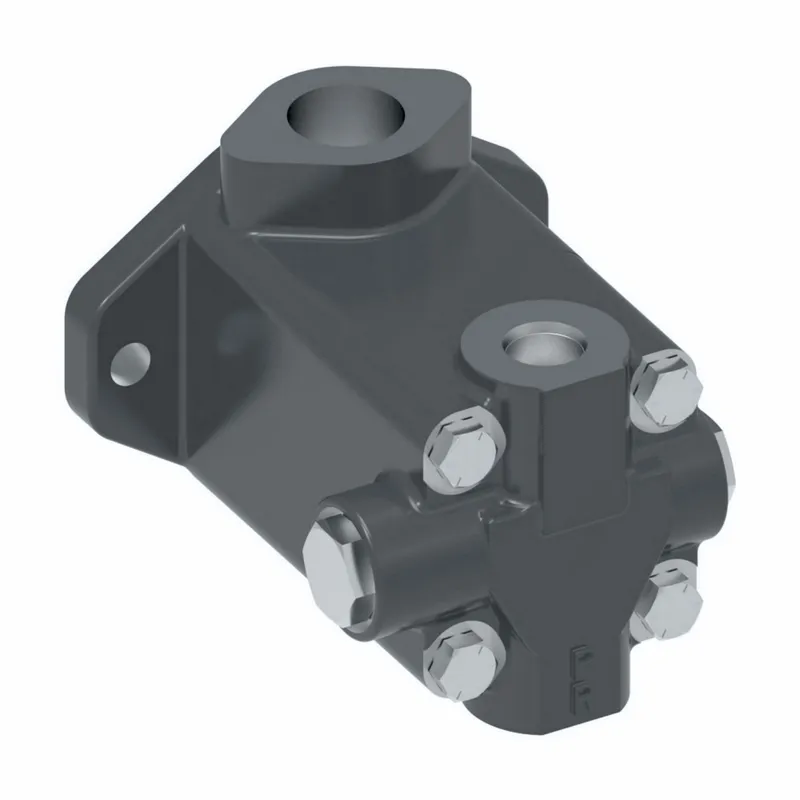

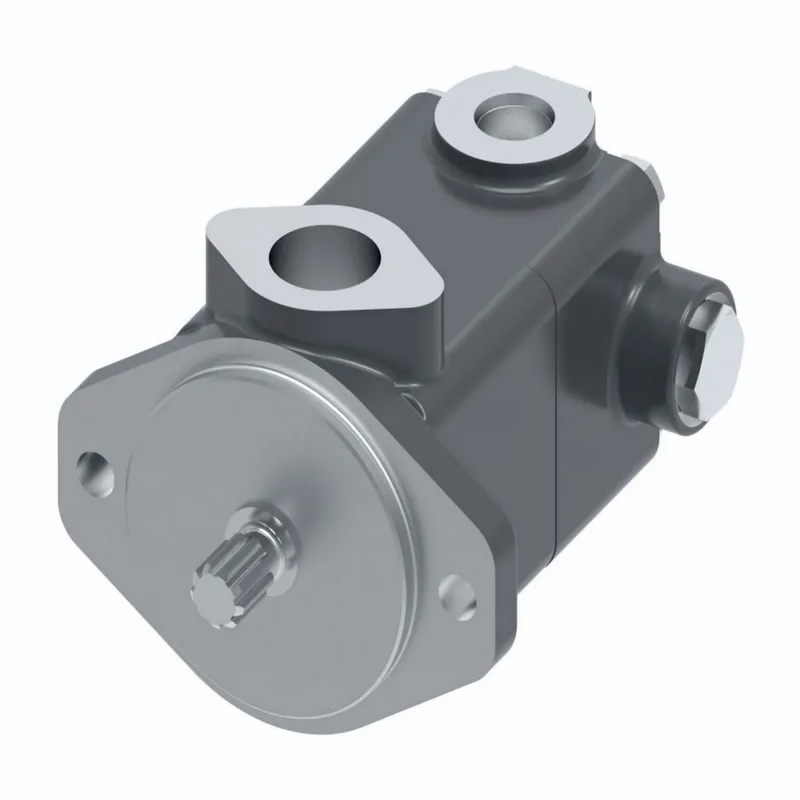

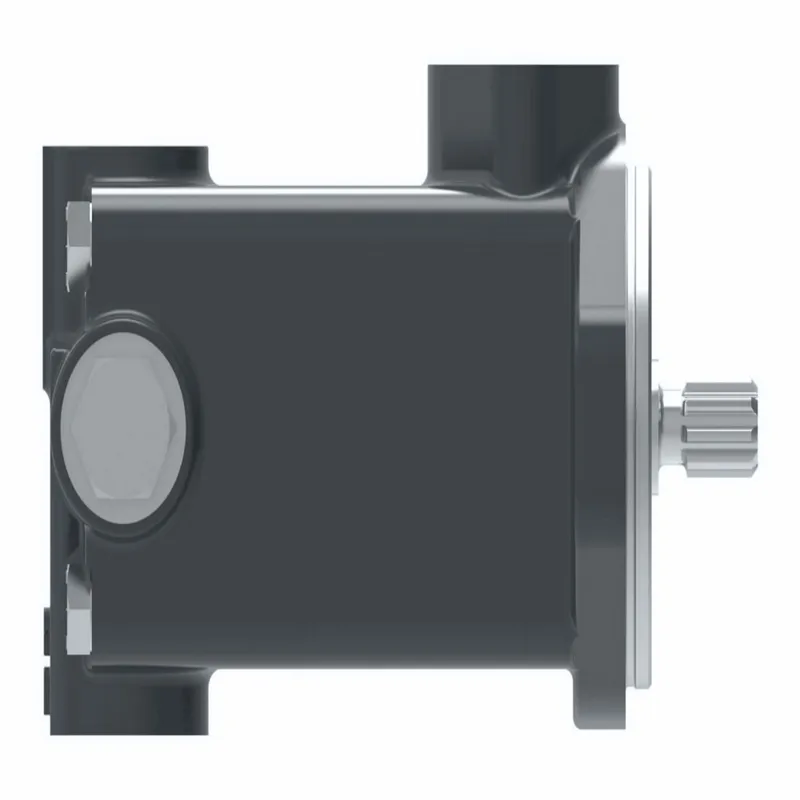

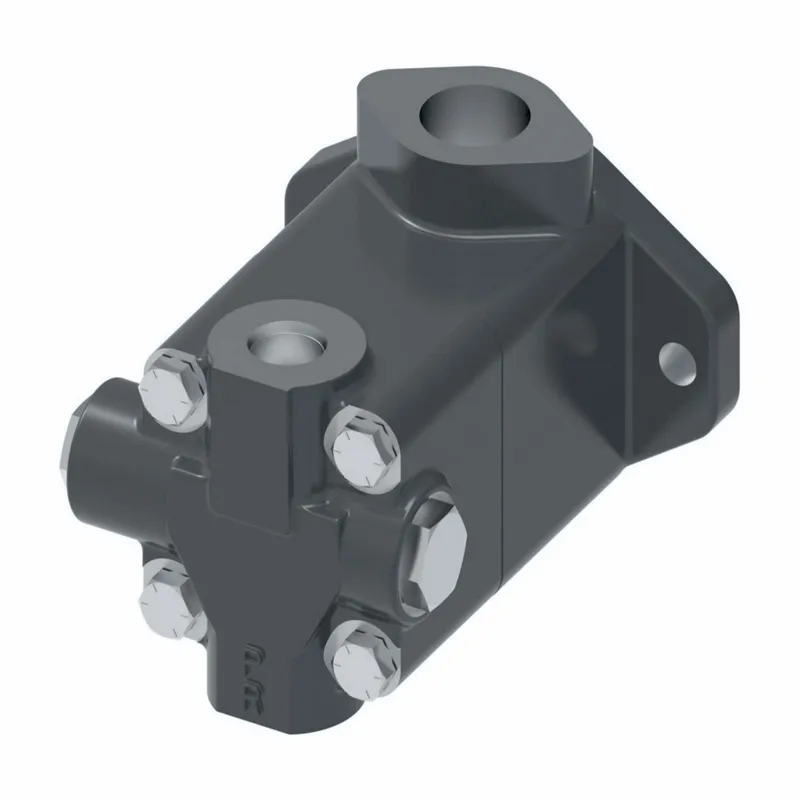

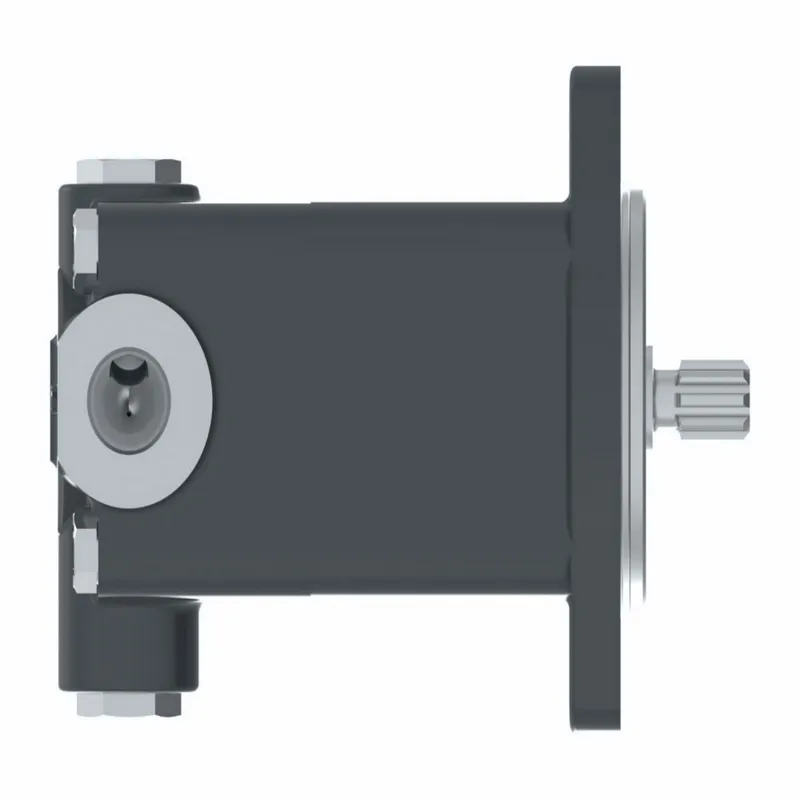

Danfoss V20P 1S8T 38C2K 12, V20P 1S8T 38C2K 12, manufacturer part number 02-102457-3. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

SEALS TYPE	STANDARD SEAL
PUMP TYPE	VANE PUMP
Series	SERIES DESIGNATION
Cover type	PRIORITY VALVE COVER
Mounting type	2 BOLT FLANGE SAE-A SIZE
INLET PORT TYPE	1.625-12UN-2B THREAD
RING CAPACITY	8 GPM
OUTLET PORT TYPE	PRIMARY PORT .750-16 THREADED,SECONDARY PORT-.875-14 THREADED, TANK- .750-16 THREADED
SHAFT SEAL AND BEARING	SINGLE LIP SEAL&SEALED BEARING
Shaft type	11TEETH 16/32 FLAT ROOT SIDE FIT
Brand	Vickers by Danfoss
IPM FRAME SIZE	V20 Single Pump
Model Code 1	V20P 1S8T 38C2K 12

02-102457-3: frequently asked questions

When can 02-102457-3 be shipped?

02-102457-3 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-102457-3 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-102457-3 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-102457-3, subject to availability and destination.
