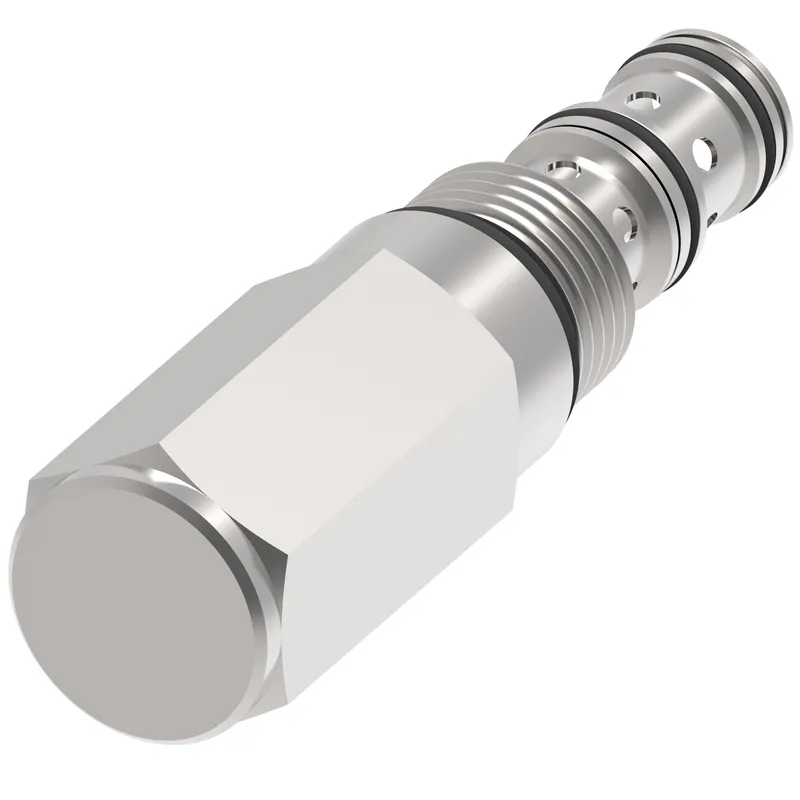

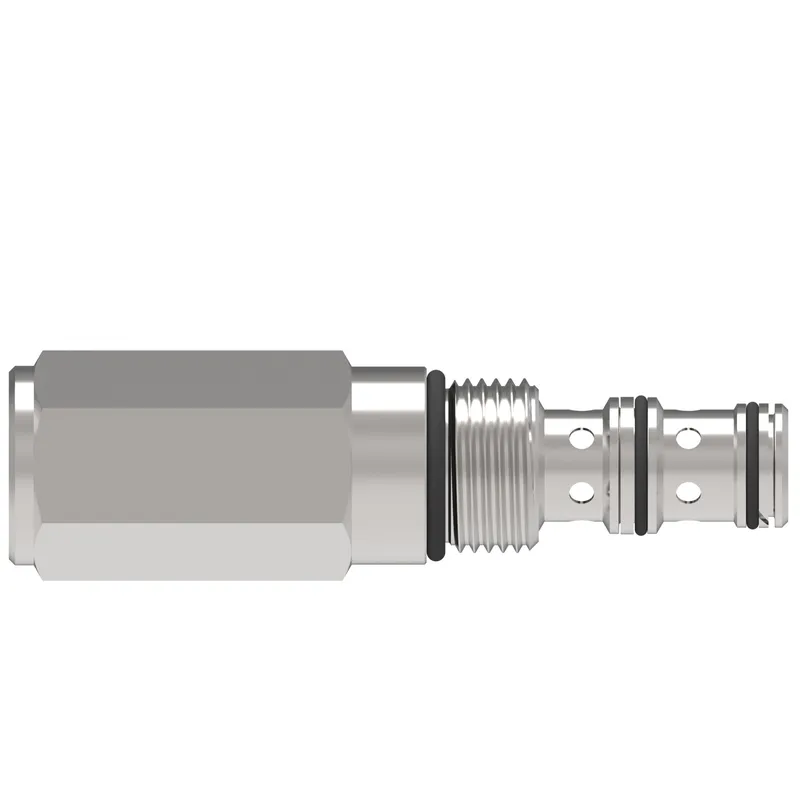

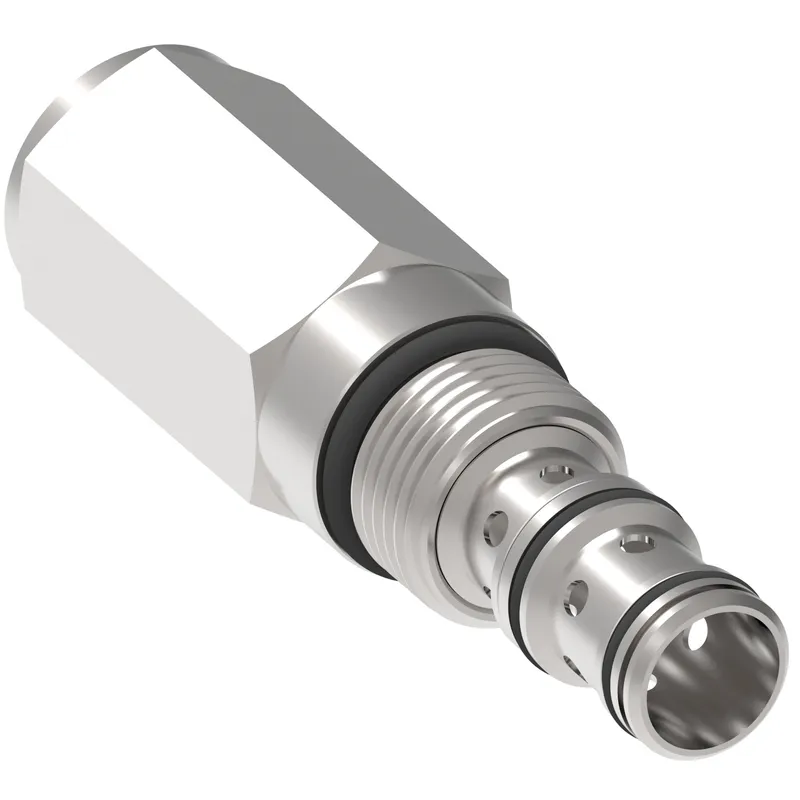

Danfoss 02-101724

PRV2-10-F-0-20/4, PRV2-10-F-0-20-4

MPN: 02-101724
Category: Cartridge valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-101724?

Danfoss PRV2-10-F-0-20/4, PRV2-10-F-0-20-4, manufacturer part number 02-101724. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Adjustment type	Factory Set
Brand	Vickers by Danfoss
Cavity	C-10-3
Factory set pressrue BAR	28.000
Factory set pressrue PSI	401.000
Flow rate GPM	10.00
Flow rate LPM	38.000
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Pressure Reducing/Relieving Valves
Housing	No
Housing material	None
Installation type	Screw-in Cartridge
Leakage	820 cc/min
Max working pressure BAR	140.000
Max working pressure PSI	2036.000
Min working pressure BAR	7.000
Min working pressure PSI	102.000
Model Code 1	PRV2-10-F-0-20-4
Number of housing ports	3
Number of valve ports	3
Operating temperature	-40 C to 120 C (-40 to 248 F)
Operation	Pilot operated
Port size	None
Port type	Cartridge Only
Product height in	1.000
Product height mm	25.400
Product length in	3.890
Product length mm	98.806
Product width in	1.000
Product width mm	25.400 mm
Recommended filtration level	18/16/13
Seal type	Buna-N
Special features	None
Style	Spool
