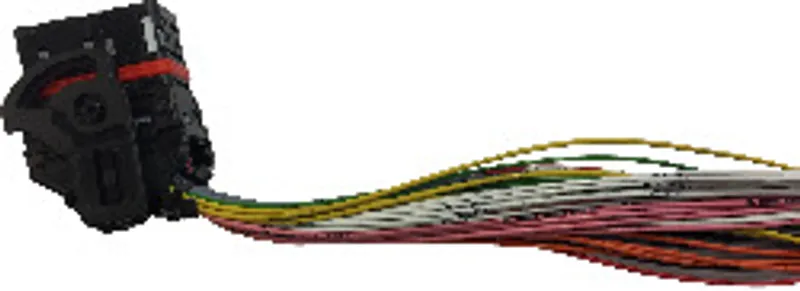

B&R X90CA124.02-00

Accessories, wiring harness with mating connector X1

MPN: X90CA124.02-00
Category: Wire harness

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare B&R parts? We buy surplus →

What is the B&R X90CA124.02-00?

X90 mobile 120, wiring harness starter set for X90BC124, 2 m, for CMC header

Specifications

Short description

Accessories

Wiring harness with mating connector X1

General information

Cable cross section – mm²	See section "Pinout".
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	Not applicable
Short description	Connection cable for mating connector X1 to wire end sleeves
Type	X90 connection cable

Cable construction

Outer jacket – Material	PVC
Outer jacket – Color	See section "Pinout".
Outer jacket – Labeling	At least every 25 cm

Electrical properties

Nominal voltage	12 / 24 VDC
Max. voltage	32 VDC
Nominal current	4 A for 0.6 mm connections / 10 A for 1.5 mm connections (note: The respective limit data of the individual I/O channels must be taken into account!)

Ambient conditions

Temperature – Operation

Corresponds to the X90 module used

Mechanical properties

Dimensions – Length	2 m
Bend radius	≥15 mm
Weight	775 g

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Data sheet X90CA124.02-00PDF · 88 KB · 1.02 (08/11/2021) - EN

Certificates (3)
