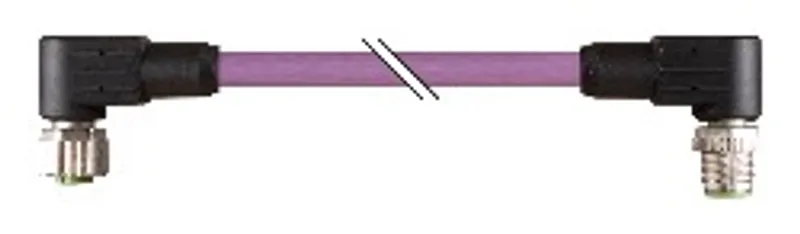

B&R X67CA0X11.0010
Accessories, X2X Link connection cable, M12, 4-pin, angled
- MPN
- X67CA0X11.0010
- Category
- X2X Link cable
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R X67CA0X11.0010?
X2X Link connection cable, angled, 1 m
Specifications
Short description
| Accessories | X2X Link connection cable, M12, 4-pin, angled, 1 m |
General information
| Cable cross section – AWG | 2x 24 AWG |
| Cable cross section – mm² | 2x 0.25 mm² |
| Cable cross section – AWG | 2x 22 AWG |
| Cable cross section – mm² | 2x 0.34 mm² |
| Note | Halogen-free |
| Durability | Flame-retardant |
Cable construction
| Signal line – Shield | Pair shielding with aluminum foil |
| Signal line – Stranding | Twisted-pair wires |
| Outer jacket – Material | Thermoplastic polyurethane (TPU) |
| Outer jacket – Color | Violet |
| Wires – Data lines | Blue, white |
| Wires – Power supply lines | Red, black |
| Wires – Data lines | Cell polyethylene (PE) |
| Wires – Power supply lines | Polypropylene (PP) |
| Wires – Type | Tinned copper ETB1; Data line: Fine stranded wire (19x 0.13 mm); Supply line: Fine stranded wire (19x 0.15 mm) |
| Cable stranding | 0.35 mm² (22 AWG) with filler |
| Cable shield | Tinned copper braiding, coverage >85% |
Electrical properties
| Rated voltage | 250 V |
| Nominal current | Max. 4 A / Contact at 40°C |
| Operating voltage | Max. 250 V |
| Degree of insulation | Category II per IEC 61076-2 |
| Conductor resistance | Data line: ≤78 Ω/km; Supply line: ≤55 Ω/km |
| Insulation resistance | ≥100 MΩ |
Operating conditions
| Degree of protection per EN 60529 – Connector/Coupling | IP67, only when screwed in |
Ambient conditions
| Temperature – Transport | -40 to 80°C |
| Temperature – Fixed installation | -40 to 80°C |
| Temperature – Flexible installation | -25 to 60°C (note: In cable drag chain operation) |
Mechanical properties
| Dimensions – Length | 1 m |
| Dimensions – Diameter | 6.9 mm ±0.3 mm |
| Bend radius – Fixed installation | ≥5x outer diameter |
| Bend radius – Flexible installation | ≥15x outer diameter |
| Drag chain data – Acceleration | Max. 4 m/s² |
| Drag chain data – Flex cycles | Min. 2 million |
| Drag chain data – Velocity | Max. 3 m/s |
| Weight | 0.063 kg/m |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
Certificates (1)
X67CA0X11.0010: frequently asked questions
When can X67CA0X11.0010 be shipped?
X67CA0X11.0010 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up X67CA0X11.0010 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for X67CA0X11.0010 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X67CA0X11.0010, subject to availability and destination.
