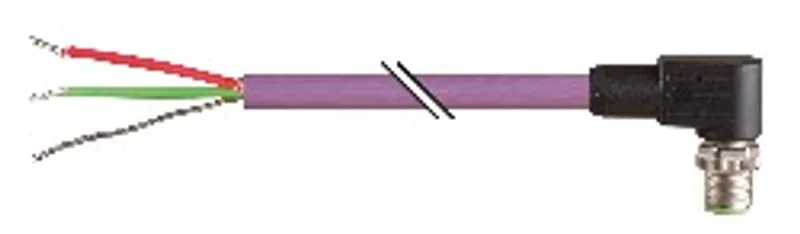

B&R X67CA0B52.0150
Accessories, PROFIBUS DP open-ended cable, 4-pin, angled
- MPN
- X67CA0B52.0150
- Category
- PROFIBUS DP cables
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R X67CA0B52.0150?
PROFIBUS DP open-ended cable, angled, 15 m
Specifications
Short description
| Accessories | PROFIBUS DP open-ended cable, 4-pin, angled, 15 m |
General information
| Cable cross section – AWG | 2x 22 AWG |
| Cable cross section – mm² | 2x 0.34 mm² |
| Note | PVC- and silicone-free; PWIS- and halogen-free |
| Durability | Good chemical and oil resistance; Flame-retardant |
Cable construction
| Outer jacket – Material | Polyurethane (PUR) |
| Outer jacket – Color | Violet |
| Wires – Wire insulation | Foam polyethylene (PE) with skin layer |
| Wires – Wire colors | Red, green |
| Wires – Type | Uncoated copper ETB1; Fine stranded wire (19x 0.15 mm), class 5 |
| Wires – Stranding | 2 wires, stranded |
| Cable shield | Tinned copper braiding, coverage >85% |
Electrical properties
| Nominal current | Max. 4 A / Contact at 40°C |
| Operating voltage | Max. 60 V |
| Degree of insulation | Category II per IEC 61076-2 |
| Conductor resistance | ≤55 Ω/km |
| Insulation resistance | ≥100 MΩ |
Operating conditions
| Degree of protection per EN 60529 – Connector/Coupling | IP67, only when screwed in |
Ambient conditions
| Temperature – Transport | -40 to 80°C |
| Temperature – Fixed installation | -25 to 80°C |
| Temperature – Flexible installation | -25 to 60°C |
Mechanical properties
| Dimensions – Length | 15 m |
| Dimensions – Diameter | 7.6 mm ±0.3 mm |
| Drag chain data – Acceleration | Max. 5 m/s² (note: Tested at +10°C to +22°C) |
| Drag chain data – Flex cycles | Min. 1 million (note: Tested at +10°C to +22°C) |
| Drag chain data – Velocity | Max. 3.3 m (note: Tested at +10°C to +22°C) |
| Bend radius | ≥10x outer diameter |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
Certificates (1)
X67CA0B52.0150: frequently asked questions
When can X67CA0B52.0150 be shipped?
X67CA0B52.0150 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up X67CA0B52.0150 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for X67CA0B52.0150 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X67CA0B52.0150, subject to availability and destination.
