B&R X67CA0B22.0050

Name: B&R X67CA0B22.0050
Brand: B&R
SKU: X67CA0B22.0050

MPN: X67CA0B22.0050 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	PROFIBUS DP cables
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can X67CA0B22.0050 be shipped?

X67CA0B22.0050 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up X67CA0B22.0050 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for X67CA0B22.0050 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X67CA0B22.0050, subject to availability and destination.

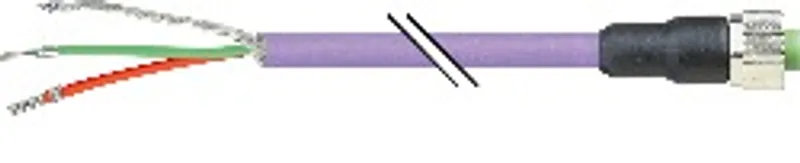

PROFIBUS DP attachment cable, 5 m

Specifications

Accessories	PROFIBUS DP attachment cable, 4-pin, straight, 5 m
Note	PVC- and silicone-freePWIS- and halogen-free
Durability	Good chemical and oil resistanceFlame-retardant
AWG	2x 22 AWG
mm²	2x 0.34 mm²
Cable shield	Tinned copper braiding, coverage >85%
Material	Polyurethane (PUR)
Color	Violet
Wire insulation	Foam polyethylene (PE) with skin layer
Wire colors	Red, green
Type	Uncoated copper ETB1Fine stranded wire (19x 0.15 mm), class 5
Stranding	2 wires, stranded
Nominal current	Max. 4 A / Contact at 40°C
Operating voltage	Max. 60 V
Degree of insulation	Category II per IEC 61076-2
Conductor resistance	≤55 Ω/km
Insulation resistance	≥100 MΩ
Connector/Coupling	IP67, only when screwed in
Transport	-40 to 80°C
Fixed installation	-25 to 80°C
Flexible installation	-25 to 60°C
Length	5 m
Diameter	7.6 mm ±0.3 mm
Bend radius	≥10x outer diameter
Acceleration	Max. 5 m/s²
Flex cycles	Min. 1 million
Velocity	Max. 3.3 m
