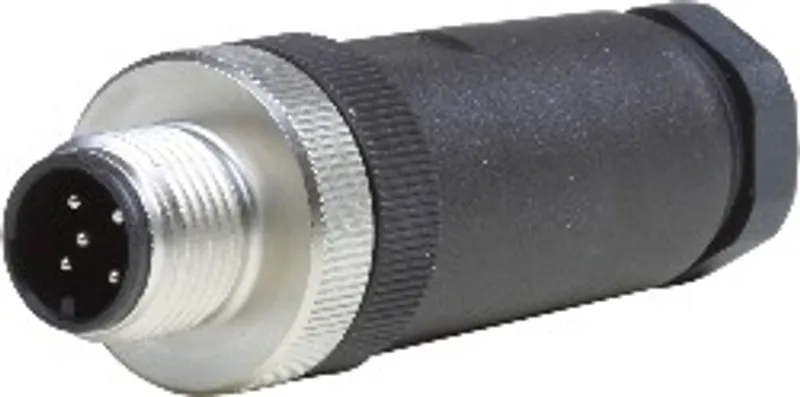

B&R X67AC9A02
X67 thermocouple connector M12
- MPN
- X67AC9A02
- Category
- Special plugs
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R X67AC9A02?
X67 thermocouple connector M12, for measuring point temperature compensation, screw terminal
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Note | Connection of an external thermocouple sensor ; A Pt1000 sensor is integrated in the connector for internal measuring point compensation. |
| Connection | Male M12 connector |
| Coding | A-coded |
| Type of terminal block | Screw clamp terminal block |
| Short description | X67 male M12 thermocouple connector for compensation of measurement point temperature, screw terminal |
| Number of pins | 5-pin |
| Shielding | - |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
X67AC9A02: frequently asked questions
When can X67AC9A02 be shipped?
X67AC9A02 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up X67AC9A02 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for X67AC9A02 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X67AC9A02, subject to availability and destination.
