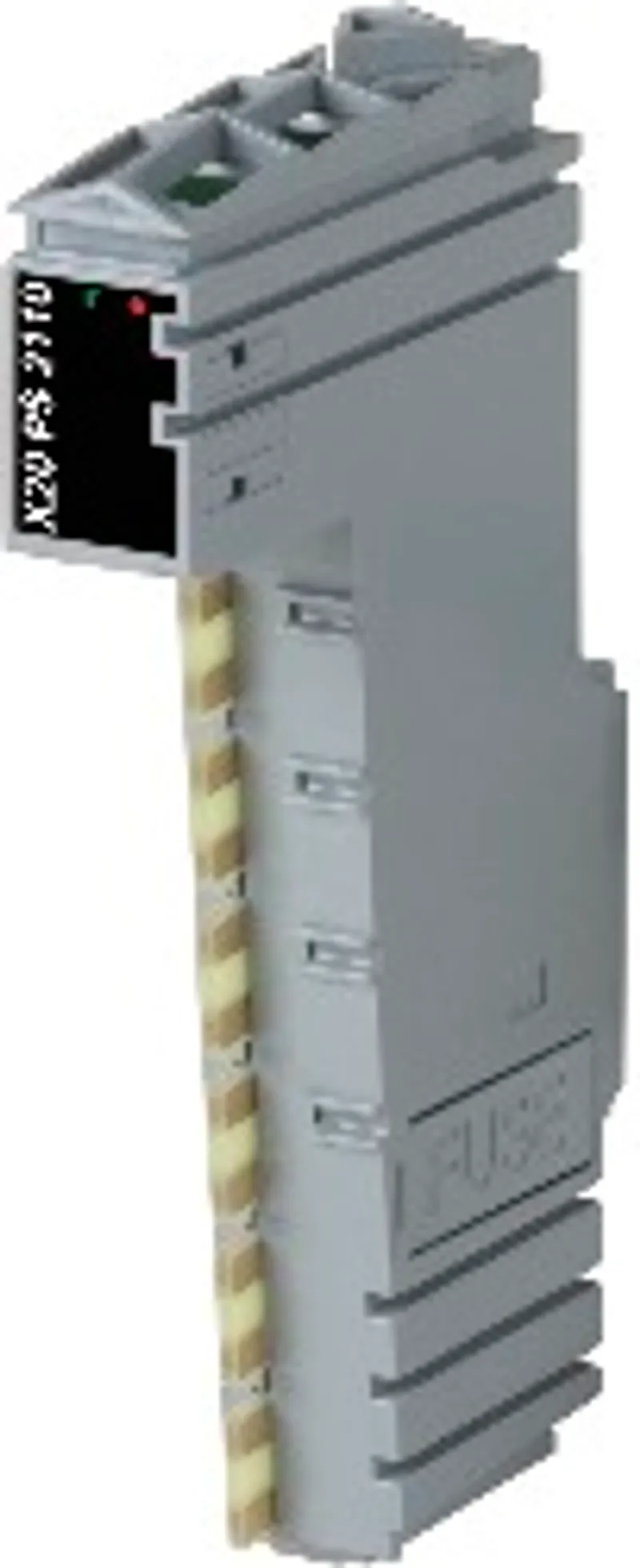

B&R X20PS2110

Power supply module, 24 VDC power supply module for…

MPN: X20PS2110
Category: Power supplies

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R X20PS2110?

24 VDC supply module for internal I/O supply

Fuse for I/O power supply integrated in module

The power supply module is used for the internal I/O power supply. The module has an integrated replaceable fuse for the I/O power supply.

Specifications

Short description

Power supply module

24 VDC power supply module for internal I/O power supply

General information

Diagnostics – Module run/error	Yes, using LED status indicator and software
Power consumptionMechanical and electrical configuration" in the X20 system user's manual."> – Bus	0.2 W (note: The specified values are maximum values. For examples of the exact calculation, see section)
Power consumptionMechanical and electrical configuration" in the X20 system user's manual."> – Internal I/O	0.82 W (note: The specified values are maximum values. For examples of the exact calculation, see section)
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – KC	Yes
B&R ID code	0x2016
Status indicators	Operating state, module status
Additional power dissipation caused by actuators (resistive) [W]	-

Input I/O power supply

Input voltage	24 VDC -15% / +20%
Input current	Max. 6 A
Fuse	Integrated 6.3 A, slow-blow, can be replaced
Reverse polarity protection	No

Output I/O power supply

Nominal output voltage	24 VDC
Behavior on short circuit	Integrated fuse
Permissible contact load	6 A

Electrical properties

Electrical isolation

I/O supply not isolated from I/O power supply

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	-25 to 60°C
Temperature – Vertical mounting orientation	-25 to 50°C
Temperature – Derating	-
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x terminal block X20TB12 separately.; Order 1x power supply bus module X20BM01 separately
Pitch	12.5 +0.2 mm

Accessories

Required accessories (order separately)

X20BM05	Bus modules — The bus module is the base for all X20 supply modules; For creating voltage groups; The internal I/O supply is isolated to the left; Manual…
X20BM01	Bus modules — Basis for all power supply modules; For creating potential groups; The internal I/O power supply is interrupted to the left. The bus module…
X20TB12	Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using lever; Ability to label each terminal; Plain text labeling also possibl…
