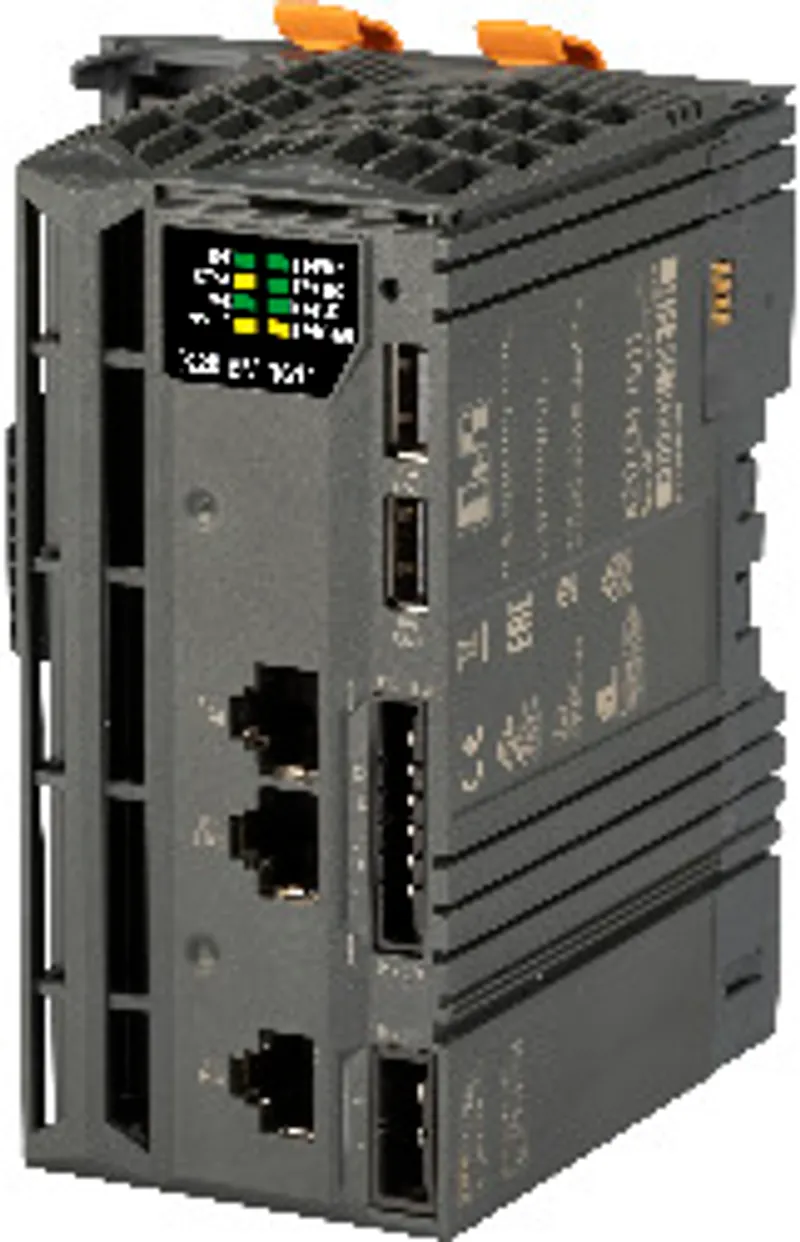

B&R X20EM1611
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Embedded PLC |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 530 kg |
Shipping & availability
When can X20EM1611 be shipped?
X20EM1611 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up X20EM1611 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for X20EM1611 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20EM1611, subject to availability and destination.
Intel Atom 400 MHz compatible with integrated I/O processorEthernet, POWERLINK V2 with poll-response chaining, onboard USB and RS4851 slot for modular interface expansion512 MB LPDDR4 SDRAM1 GB onboard flash driveFanlessNo battery This compact yet powerful controller is based on Intel Atom processor technology. The fanless, battery-free design of this controller means it is completely maintenance-free.The basic configuration includes USB, Ethernet, POWERLINK V2, RS485 and a flash drive. In addition, 1 slot can be used for X20 interface modules to increase flexibility.
Specifications
Specifications
| Interfaces | 1x RS485, 1x Ethernet (2-port switch), 1x POWERLINK (V2), 2x USB, 1x X2X Link |
| System module | Controller |
| B&R ID code | 0x289E |
| Cooling | Fanless |
| Status indicators | CPU function, Ethernet, POWERLINK, RS485, I/O power supply |
| CPU function | Yes, using LED status indicator |
| Ethernet | Yes, using LED status indicator |
| I/O power supply | Yes, using software and LED status indicator |
| POWERLINK | Yes, using LED status indicator |
| Temperature | Yes, using software register |
| Controller redundancy | No |
| Storage health data support | Yes |
| ACOPOS support | Yes |
| Visual Components support | Yes |
| Power consumption | 5.3 W |
| Power consumption for X2X Link power supply | 0.6 W |
| Internal I/O | 0.56 W |
| Additional power dissipation caused by actuators (resistive) [W] | - |
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | In preparation |
| ATEX | Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X |
| UL | cULus E115267 Industrial control equipment |
| HazLoc | cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5 |
| Input voltage | 24 VDC -15% / +20% (nominal voltage: 24 VDC) (max. input power at nominal voltage: 240 W) |
| Input current | Max. 1.4 A at 24 VDC |
| Fuse | Required line fuse: Max. 10 A, slow-blow |
| Reverse polarity protection | Yes |
| Nominal output power | 3.5 W |
| Parallel connection | Yes |
| Redundant operation | Yes |
| Nominal output voltage | 24 VDC |
| Permissible contact load | 10 A |
| Real-time clock | Retention for at least 300 hours, typ. 1000 hours at 25°C, 1 s resolution, <30 s/month accuracy at 25°C |
| FPU | Yes |
| Type | USB 1.1/2.0 |
| Clock frequency | 400 MHz (compatible). |
| Data code | 24 kB |
| Program code | 32 kB |
| L2 cache | 1 MB |
| Integrated I/O processor | Processes I/O data points in the background |
| Modular interface slots | 1 |
| Remanent variables | Max. 64 kB, retention >10 years |
| Shortest task class cycle time | 400 µs |
| Typical instruction cycle time | 0.0044 µs |
| RAM | 512 MB LPDDR4 SDRAM |
| Data retention | 10 years |
| Guaranteed | 40 TB |
| Results for 5 years | 21.9 GB/day |
| Guaranteed erase/write cycles | 20,000 |
| Error-correcting code (ECC) | Yes |
| Signal | RS485 |
| Variant | Connection via 6-pin terminal block |
| Line length | Max. 100 m between 2 stations (segment length) |
| Transfer rate | Max. 115.2 kbit/s |
| Physical layer | 100BASE-TX |
| Half-duplex | Yes |
| Full-duplex | POWERLINK mode: No / Ethernet mode: Yes |
| Autonegotiation | Yes |
| Auto-MDI/MDIX | Yes |
| Fieldbus | X2X Link master |
| Max. output current | 0.5 A |
| Max. distance | 1000 m |
| Terminating resistor | Integrated in PLC, not switchable |
| Electrical isolation | Ethernet (IF2), POWERLINK (IF3), X2X (IF6) and RS485 (IF7) isolated from each other, from other interfaces and from PLC I/O to PLC isolated from all interfaces USB (IF4 and IF5) and slot for X20 interface modules not isolated from PLC |
| Horizontal | Yes |
| Vertical | Yes |
| 0 to 2000 m | No limitation |
| >2000 m | Reduction of ambient temperature by 0.6°C per 100 m |
| Degree of protection per EN 60529 | IP20 |
| Horizontal mounting orientation | -25 to 60°C |
| Vertical mounting orientation | -25 to 50°C |
| Derating | - |
| Storage | 5 to 95%, non-condensing |
| Transport | 5 to 95%, non-condensing |
| Operation | 5 to 95%, non-condensing |
| Note | X20 end cover plate (right) included in delivery 2- and 6-pin terminal block included in delivery Interface module slot cover included in delivery |
| Width | 82.5 mm |
| Height | 124 mm |
| Depth | 92 mm |
| Weight | 530 g |
