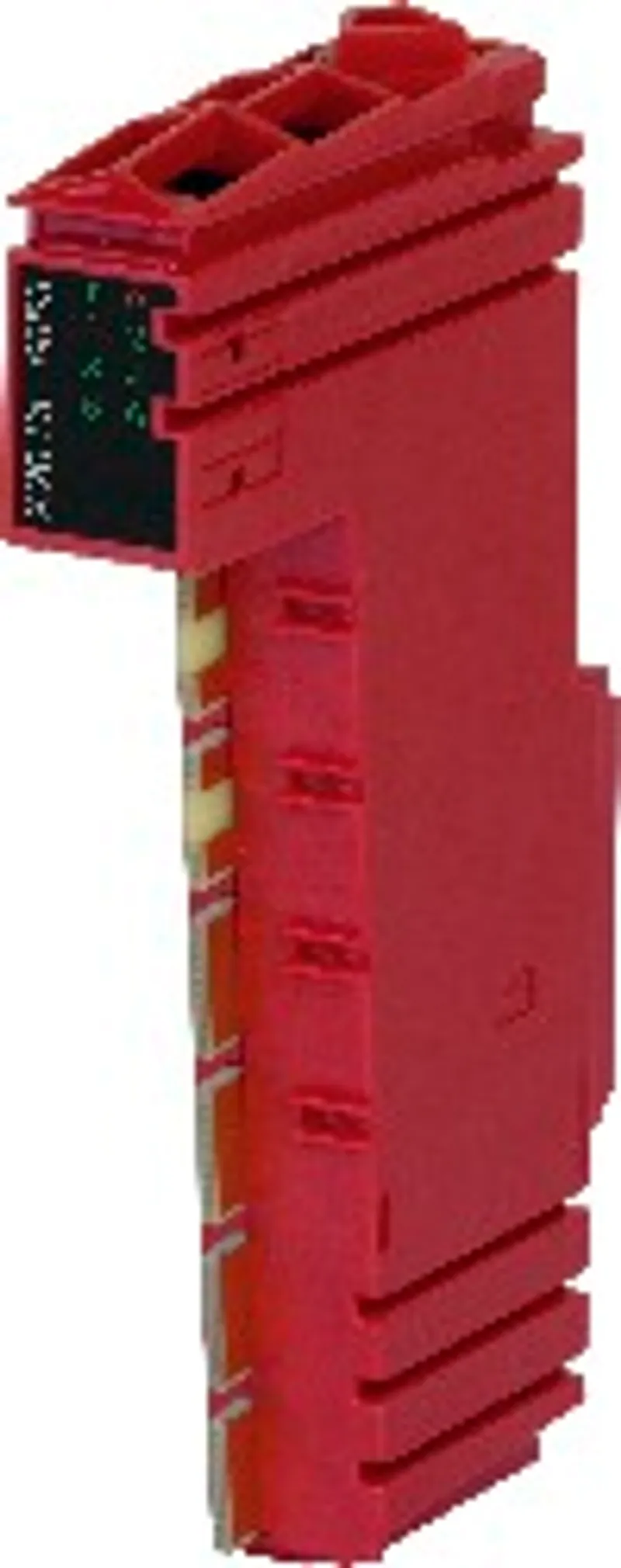

B&R X20DI6553

I/O module, 6 digital inputs 100 to 120 VAC for 1-wire…

MPN: X20DI6553
Category: Digital inputs

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R X20DI6553?

6 digital inputs

100 to 120 VAC inputs

50 Hz or 60 Hz

1-wire connections

240 V coded

The module is equipped with 6 inputs for 1-wire connections. It is designed for an input voltage of 100 to 120 VAC .

Specifications

Short description

I/O module

6 digital inputs 100 to 120 VAC for 1-wire connections

General information

Diagnostics – Module run/error	Yes, using LED status indicator and software
Diagnostics – External I/O power supply	Yes, using software (typ. threshold 85 VAC)
Power consumption – Bus	0.21 W
Power consumption – Internal I/O	-
Power consumption – External I/O	0.68 W
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – KC	Yes
B&R ID code	0x256F
Status indicators	I/O function per channel, operating state, module status
Additional power dissipation caused by actuators (resistive) [W]	-

Digital inputs

Input filter – 1 → 0	≤30 ms
Input filter – 0 → 1	≤15 ms
Input filter – Software	Default 1 ms, configurable between 0 and 25 ms in 0.2 ms increments
Switching threshold – Low	<20 VAC
Switching threshold – High	>79 VAC
Input voltage – Maximum	132 VAC
Input current – 120 VAC / 50 Hz	8.5 mA
Input current – 120 VAC / 60 Hz	10 mA
Nominal voltage	100 to 120 VAC
Connection type	1-wire connections
Rated frequency	47 to 63 Hz
Insulation voltage between channel and bus	1 minute 1500 VAC

Sensor power supply

Voltage	Corresponds to the module power supply
Short-circuit proof	No

Electrical properties

Electrical isolation

Channel isolated from bus; Channel not isolated from channel

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	-25 to 60°C
Temperature – Vertical mounting orientation	-25 to 50°C
Temperature – Derating	-
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x terminal block X20TB32 separately. ; Order 1x bus module X20BM12 separately.
Pitch	12.5 +0.2 mm

Accessories

Required accessories (order separately)

X20BM12	Bus modules — Bus module for 240 VAC I/O modules; The internal I/O supply is interconnected; 240 V coding for bus module, electronic module and terminal…
X20TB32	Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using lever; Ability to label each terminal; Plain text labeling also possibl…
