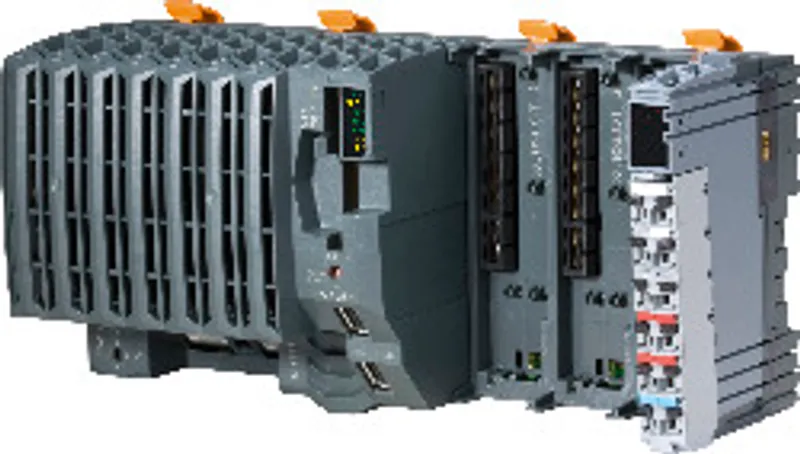

B&R X20CP3584
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | X20 PLC |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 470 kg |
Shipping & availability
When can X20CP3584 be shipped?
X20CP3584 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up X20CP3584 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for X20CP3584 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20CP3584, subject to availability and destination.
Intel Atom 600 MHz processor with an additional I/O-processorOnboard Ethernet, POWERLINK with poll response chaining and USB3 slots for modular interface expansionCompactFlash as removable application memory256 MB DDR2-SDRAMController redundancy possibleFanless The X20CP3585 controller is based on an Atom processor clocked at 0.6 GHz and equipped with 256 MB DDR2 SDRAM. USB, Ethernet, POWERLINK and removable CompactFlash are all included as standard features. A Gigabit Ethernet interface is a standard feature. For even more real-time network performance, the onboard POWERLINK interface supports poll response chaining mode (PRC).The controller is equipped with 3 slots available for X20 communication modules. Various bus and network systems can easily be integrated into the X20 system through the use of communication modules.
Specifications
Specifications
| Interfaces | 1x RS232, 1x Ethernet, 1x POWERLINK (V1/V2), 2x USB, 1x X2X Link |
| System module | Controller |
| B&R ID code | 0xC3AD |
| Cooling | Fanless |
| Status indicators | Overload, operating status, module status, RS232 data transfer |
| Battery | Yes, using LED status indicator and software |
| CPU function | Yes, using LED status indicator |
| CompactFlash | Yes, using LED status indicator |
| Ethernet | Yes, using LED status indicator |
| POWERLINK | Yes, using LED status indicator |
| Temperature | Yes, using software register |
| Controller redundancy | Yes |
| Storage health data support | Yes |
| ACOPOS support | Yes |
| Visual Components support | Yes |
| Power consumption without interface module and USB | 8.6 W |
| Power consumption for X2X Link power supply | 1.42 W |
| Internal I/O | 0.6 W |
| Additional power dissipation caused by actuators (resistive) [W] | - |
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | Evaluation ongoing |
| ATEX | Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X |
| UL | cULus E115267 Industrial control equipment |
| HazLoc | cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5 |
| DNV | Temperature: B (0 to 55°C) Humidity: B (up to 100%) Vibration: B (4 g) EMC: B (bridge and open deck) |
| CCS | Yes |
| LR | ENV1 |
| KR | Yes |
| ABS | Yes |
| BV | EC33B Temperature: 5 - 55°C Vibration: 4 g EMC: Bridge and open deck |
| KC | Yes |
| Input voltage | 24 VDC -15% / +20% |
| Input current | Max. 1.5 A |
| Fuse | Required line fuse: Max. 10 A, slow-blow |
| Reverse polarity protection | Yes |
| Nominal output power | 7 W |
| Parallel connection | Yes |
| Redundant operation | Yes |
| Nominal output voltage | 24 VDC |
| Permissible contact load | 10 A |
| RS232 data transfer | Yes, using LED status indicator |
| Module run/error | Yes, using LED status indicator and software |
| Overload | Yes, using LED status indicator and software |
| I/O supply - I/O power supply | No |
| CPU/X2X Link supply - CPU/X2X Link power supply | Yes |
| CompactFlash slot | 1 |
| Real-time clock | Nonvolatile, resolution 1 s, -10 to 10 ppm accuracy at 25°C |
| FPU | Yes |
| Type | USB 1.1/2.0 |
| Clock frequency | 0.6 GHz |
| Data code | 24 kB |
| Program code | 32 kB |
| L2 cache | 512 kB |
| Integrated I/O processor | Processes I/O data points in the background |
| Modular interface slots | 3 |
| Remanent variables | Max. 256 kB |
| Shortest task class cycle time | 400 µs |
| Typical instruction cycle time | 0.0075 µs |
| Battery monitoring | Yes |
| Lithium battery | Min. 2 years at 23°C ambient temperature |
| RAM | 256 MB DDR2 SDRAM |
| User RAM | 1 MB SRAM |
| Signal | Ethernet |
| Variant | Type A |
| Max. distance | 900 m |
| Transfer rate | 100 Mbit/s |
| Line length | Max. 100 m between 2 stations (segment length) |
| Physical layer | 100BASE-TX |
| Half-duplex | Yes |
| Full-duplex | POWERLINK mode: No / Ethernet mode: Yes |
| Autonegotiation | Yes |
| Auto-MDI/MDIX | Yes |
| Fieldbus | X2X Link master |
| Max. output current | 0.5 A |
| Electrical isolation | Ethernet (IF2), POWERLINK (IF3) and X2X (IF6) isolated from each other, from other interfaces and from PLC |
| Horizontal | Yes |
| Vertical | Yes |
| 0 to 2000 m | No limitation |
| >2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 | IP20 |
| Horizontal mounting orientation | -25 to 60°C |
| Vertical mounting orientation | -25 to 50°C |
| Derating | See section "Derating". |
| Storage | 5 to 95%, non-condensing |
| Transport | 5 to 95%, non-condensing |
| Operation | 5 to 95%, non-condensing |
| Note | Order application memory (CompactFlash) separately Backup battery included in delivery X20 end cover plate (right) included in delivery 12-pin X20 terminal block included in delivery Interface module slot covers included in delivery |
| Width | 200 mm |
| Height | 99 mm |
| Depth | 85 mm |
| Weight | 470 g |
