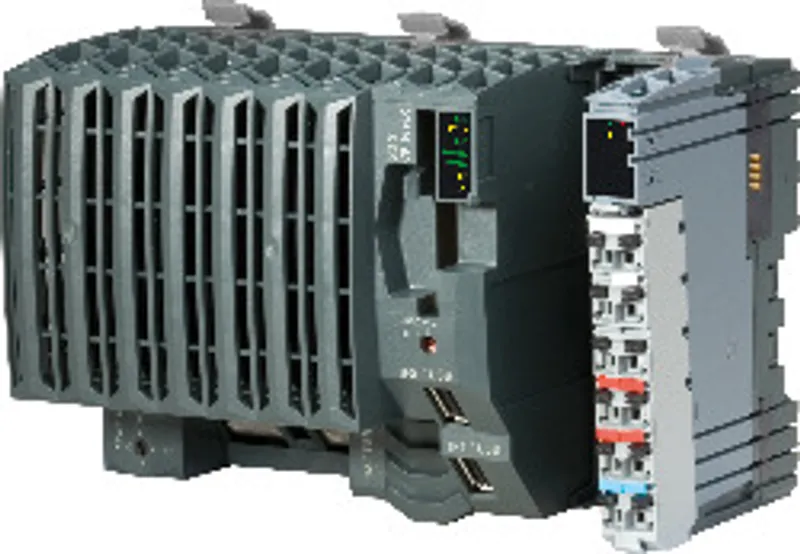

B&R X20CP1686X

Name: B&R X20CP1686X
Brand: B&R
SKU: X20CP1686X

MPN: X20CP1686X · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	X20 PLC
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	480 kg

Shipping & availability

When can X20CP1686X be shipped?

X20CP1686X is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up X20CP1686X in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for X20CP1686X and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20CP1686X, subject to availability and destination.

Intel Atom 1.3 GHz performance with integrated I/O processorEthernet, POWERLINK V2 with poll-response chaining and onboard USB1 slot for modular interface expansion1 GB LPDDR4 SDRAM2 GB onboard flash driveCompactFlash as removable application memoryFanless This controller is based on Intel Atom processor technology and used for applications with the highest performance requirements. It rounds off the top end of the X20 controller product family.The basic configuration includes USB, Ethernet, POWERLINK V2 and removable CompactFlash. The standard Ethernet interface supports gigabit communication. For even more real-time network performance, the onboard POWERLINK interface supports poll-response chaining mode (PRC).In addition, 1 slot can be used for additional interface modules to increase flexibility.

Specifications

Interfaces	1x RS232, 1x Ethernet, 1x POWERLINK (V2), 2x USB, 1x X2X Link/X2X+
System module	Controller
B&R ID code	0xF9EC
Cooling	Fanless
Status indicators	Overload, operating status, module status, RS232 data transfer
Battery	Yes, using LED status indicator and software
CPU function	Yes, using LED status indicator
CompactFlash	Yes, using LED status indicator
Ethernet	Yes, using LED status indicator
POWERLINK	Yes, using LED status indicator
Temperature	Yes, using software register
Controller redundancy	No
Storage health data support	Yes
ACOPOS support	Yes
Visual Components support	Yes
Multi-core support	Yes
Power consumption without interface module and USB	7.5 W
Power consumption for X2X Link power supply	1.42 W
Internal I/O	0.6 W
Additional power dissipation caused by actuators (resistive) [W]	-
CE	Yes
UKCA	Yes
CRA (Cyber Resilience Act)	In preparation
ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X
UL	cULus E115267 Industrial control equipment
HazLoc	cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5
DNV	Temperature: B (0 to 55°C) Humidity: B (up to 100%) Vibration: B (4 g) EMC: B (bridge and open deck)
CCS	Yes
LR	ENV1
KR	Yes
ABS	Yes
Input voltage	24 VDC -15% / +20% (nominal voltage: 24 VDC) (max. input power at nominal voltage: 240 W)
Input current	Max. 1.5 A at 24 VDC
Fuse	Required line fuse: Max. 10 A slow-blow
Reverse polarity protection	Yes
Nominal output power	7 W
Parallel connection	Yes
Redundant operation	Yes
Nominal output voltage	24 VDC
Permissible contact load	10 A
RS232 data transfer	Yes, using LED status indicator
Module run/error	Yes, using LED status indicator and software
Overload	Yes, using LED status indicator and software
I/O supply - I/O power supply	No
CPU/X2X Link supply - CPU/X2X Link power supply	Yes
CompactFlash slot	1
Real-time clock	Nonvolatile, resolution 1 s, -20 to 20 ppm accuracy at 25°C
FPU	Yes
Type	USB 1.1/2.0
Clock frequency	1.3 GHz
Data code	24 kB
Program code	32 kB
L2 cache	1 MB
Integrated I/O processor	Processes I/O data points in the background
Modular interface slots	1
Remanent variables	Max. 1 MB
Shortest task class cycle time	100 µs
Typical instruction cycle time	0.0015 µs
Battery monitoring	Yes
Lithium battery	During operation: 4 years PLC switched off: Min. 2 years at 23°C ambient temperature
RAM	1 GB LPDDR4 SDRAM
User RAM	1 MB SRAM
Data retention	10 years
Guaranteed	40 TB
Results for 5 years	21.9 GB/day
Guaranteed erase/write cycles	20,000
Error-correcting code (ECC)	Yes
Signal	Ethernet
Variant	Type A
Max. distance	900 m
Transfer rate	100 Mbit/s
Line length	Max. 100 m between 2 stations (segment length)
Physical layer	100BASE-TX
Half-duplex	Yes
Full-duplex	POWERLINK mode: No / Ethernet mode: Yes
Autonegotiation	Yes
Auto-MDI/MDIX	Yes
Fieldbus	X2X Link / X2X+ master
Max. output current	0.5 A
Electrical isolation	Ethernet (IF2), POWERLINK (IF3) and X2X (IF6) isolated from each other, from other interfaces and from PLC
Horizontal	Yes
Vertical	Yes
0 to 2000 m	No limitation
>2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20
Horizontal mounting orientation	-25 to 60°C
Vertical mounting orientation	-25 to 50°C
Derating	See section "Derating".
Storage	5 to 95%, non-condensing
Transport	5 to 95%, non-condensing
Operation	5 to 95%, non-condensing
Note	Order application memory (CompactFlash) separately Backup battery included in delivery X20 end cover plate (right) included in delivery 12-pin X20 terminal block included in delivery Interface module slot covers included in delivery
Width	150 mm
Height	99 mm
Depth	85 mm
Weight	480 g
