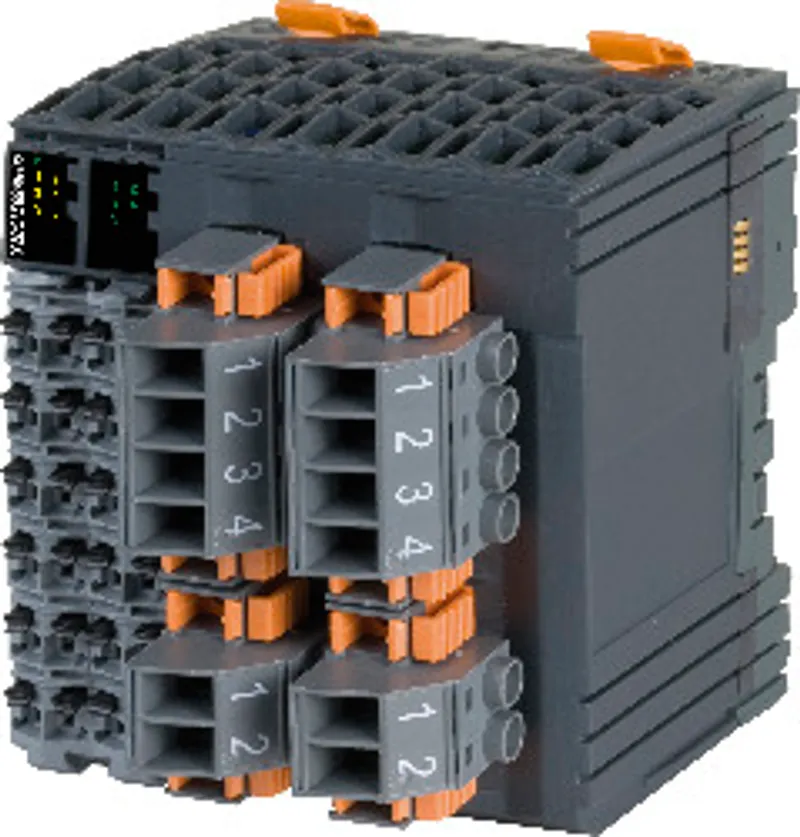

B&R X20CM0985-02

I/O module, X20 energy measurement and synchronization…

MPN: X20CM0985-02
Category: Other functions

€1,680.10excl. VAT & shipping

In stock — 7 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

What is the B&R X20CM0985-02?

Energy measurement for 120 to 480 VAC

Simultaneous measurement of 2 AC power systems plus 2 additional voltages

For multifunction measurement tasks

Intelligent power system synchronization unit

Current values of generator voltage and current

Monitor functions per current power system guidelines

The module combines a power measurement module with special features on a compact base area, combined with a synchronization unit that meets all requirements.

The 4 current inputs of the measuring unit are suitable for both X: 1 A and X: 5 A current transformers. The overcurrent resistance and the high resolution of the measuring unit round off the properties. The range of values for the voltage inputs is also configurable between 120 VAC , 480 VAC and 690 VAC without compromising the converter resolution.

The area of application therefore includes 4-wire AC systems with an line-to-line voltage of up to 690 VAC and 3-wire systems, in which L2 can be grounded (V circuit). The module also controls the measuring principle of the Aron circuit.

The resulting measured values range from the pure phase current and the line-to-line or phase voltage to the active, reactive and apparent power components, the mains frequency, the power factor and much more. In addition, peak values and energy meters are stored on the module in a nonvolatile manner. Depending on the configuration, it is also possible to use a digital output with scalable significance as a pulse encoder for an external energy meter.

The synchronization unit does not just take the phase relationship and phase voltage into account; integrated intelligence also monitors the rate of change and other parameters, allowing them to influence when the synchronization output is switched. Monitoring the synchronization of a generator is possible with a large number of additional framework conditions. A total of 4 voltage inputs provide plenty of room for flexibility.

Monitoring functions expand the features of the module. Dependent overcurrent monitoring is included, which utilizes the thermal capacity of the motor/generator to allow short overloads while still providing full protection. The dependent, delayed imbalanced load monitoring used to protect three-phase generator and three-phase networks from imbalanced load can be adapted to the characteristics of different generator types using parameters while taking their special thermal time constants into account.

Specifications

Short description

I/O module

X20 energy measurement and synchronization module

General information

Diagnostics – Module run/error	Yes, using LED status indicator and software
Diagnostics – Analog inputs	Yes, using LED status indicator (measurement range of analog inputs)
Diagnostics – Digital outputs	Yes, using LED status indicator and software
Measurable frequency – Measurement range	15.2 Hz to 2x nominal frequency (note: Rated frequency: 48 to 62 Hz. Synchronization is only possible at the nominal frequency.)
Measurable frequency – Accuracy	Typ. 10 mHz at 400 V / 50 Hz and sinusoidal signals
Power consumption – Bus	1.05 W
Power consumption – Internal I/O	4 W
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – UL	cULus E115267; Industrial control equipment; cULus E537419; Engine generator controller
Certifications – UL 6200	Rev. C6; Hardware upgrade 1.5.0.0
B&R ID code	0xF425
Status indicators	Channel status, operating state, module status
Overvoltage category	ll (note: EN 61131-2)
Additional power dissipation caused by actuators (resistive) [W]	-

Digital outputs

Switching delay – 0 → 1	<300 μs
Switching delay – 1 → 0	<300 μs
Switching frequency – Resistive load	Max. 100 Hz
Quantity	5
Variant	Current-sourcing FET
Nominal voltage	24 VDC
Switching voltage	24 VDC -15% / +20%
Nominal output current	0.1 A
Total nominal current	0.5 A
Connection type	1-wire connections
Output circuit	Source
Output protection	Thermal shutdown in the event of overcurrent or short circuit
Diagnostic status	Output monitoring with 10 ms delay
Leakage current when the output is switched off	5 μA
Residual voltage	<0.3 V at 0.1 A nominal current
Peak short-circuit current	<2 A
Switch-on in the event of overload shutdown or short-circuit shutdown	Approx. 10 ms, depends on the module temperature
Insulation voltage between channel and bus	500 V eff

Relay outputs

Switching capacity – Min.	10 mA / 5 VDC
Switching capacity – Max.	30 W / 240 VAC
Switching delay – 0 → 1	≤10 ms
Switching delay – 1 → 0	≤10 ms
Service lifeElectrical service life"."> – Mechanical	Min. 10 x 10 6 ops. (note: See section)
Service lifeElectrical service life"."> – Electrical	Min. 60 x 10 3 ops. (NC) at 1 A; Min. 30 x 10 3 ops. (NO) at 1 A (note: See section)
Protective circuit – Internal	None
Protective circuit – External	None
Protective circuit – DC	Inverse diode, RC combination or VDR
Protective circuit – AC	RC combination or VDR
Insulation voltage – Channel - Channel	1000 VAC / 1 min
Insulation voltage – Channel - Bus	4000 VAC / 1 min
Quantity	1
Variant	Relay / Changeover contact
Nominal voltage	30 VDC / 240 VAC
Rated frequency	DC / 45 to 63 Hz
Nominal output current	1 A at 30 VDC / 1 A at 240 VAC
Actuator power supply	External
Switching voltage	Max. 60 VDC / 250 VAC
Contact resistance	Max. 100 mΩ

Analog input voltage

Conversion time – 50 Hz	10 ms
Conversion time – 60 Hz	8.33 ms
Conversion time – Instantaneous values	Corresponds to the X2X cycle time
Output format – ±120 VAC	1 LSB = 0x0001 = 5.707 mV (note: INT, range of values: 0x8001 to 0x7FFF)
Output format – ±480 VAC	1 LSB = 0x0001 = 22.787 mV (note: INT, range of values: 0x8001 to 0x7FFF)
Output of digital value during overload – Overshoot	0x7FFF
Output of digital value during overload – Undershoot	0x8001
Input filter – Cutoff frequency	10 kHz
Input filter – Slope	60 dB
Max. error at 25°C – Gain	0.09% (note: Based on the current measured value)
Max. error at 25°C – Offset	0.03% (note: Based on the measurement range 240 VAC / 960 VAC)
Channels	8
Input	120 VAC / 480 VAC
Input type	Single-ended
Digital converter resolution	±15-bit
Permissible input signal	Max. 132 VAC / 528 VAC
Conversion method	SAR
Maximum gain drift	0.02% per °C (note: Based on the current measured value)
Maximum offset drift	0.003% per °C (note: Based on the measurement range 240 VAC / 960 VAC)
Crosstalk between channels	-70 dB
Nonlinearity	≤0.5% at 45 to 65 Hz (note: Based on the measurement range 240 VAC / 960 VAC)
Protection against electric shock	Protective impedance per EN 61131-2
Test voltage between channel and bus (type test)	3700 V eff
Output format	INT
Input impedance in signal range	Approx. 3 MΩ
Input protection	Overvoltage protection

Analog input current

Conversion time – 50 Hz	10 ms
Conversion time – 60 Hz	8.33 ms
Conversion time – Instantaneous values	Corresponds to the X2X cycle time
Output format – ±1 A	1 LSB = 0x0001 = 189.903 μA (note: INT, range of values: 0x8001 to 0x7FFF)
Output format – ±5 A	1 LSB = 0x0001 = 949.513 μA (note: INT, range of values: 0x8001 to 0x7FFF)
Output of digital value during overload – Overshoot	0x7FFF
Output of digital value during overload – Undershoot	0x8001
Input filter – Cutoff frequency	10 kHz
Input filter – Slope	60 dB
Max. error at 25°C – Gain	0.2% (note: Based on the current measured value)
Max. error at 25°C – Offset	0.05% (note: Based on the measurement range 2 A / 10 A)
Input impedance – Measurement range 1 A	Max. 30 mΩ (note: Including current transformer, circuit path and X20TB12 terminal block (5 mΩ))
Input impedance – Measurement range 5 A	Max. 10 mΩ (note: Including current transformer, circuit path and X20TB12 terminal block (5 mΩ))
Channels	3
Input	1 A / 5 A AC
Input type	Isolated current transformer according to the compensation principle with a magnetic sensor, for connecting an external transformer
Digital converter resolution	±15-bit
Permissible input signal	Max. 1.5 A / 7.7 A
Conversion method	SAR
Maximum gain drift	0.07% per °C (note: Based on the current measured value)
Maximum offset drift	Measurement range 2 A: 0.0064% per °C, measurement range 10 A: 0.00384% per °C
Crosstalk between channels	-70 dB
Nonlinearity	≤0.5% at 45 to 65 Hz (note: Based on the measurement range 2 A / 10 A)
Insulation voltage between channel and bus	500 V eff
Output format	INT
Thermal overcurrent	15 x I Nom for 0.2 s (note: This can result in the measurement hysteresis being offset in relation to the overcurrent.)
Monitored overcurrent	4 x I Nom (note: Based on the measurement range 1 A / 5 A)

Electrical properties

Electrical isolation

Bus isolated from I/O power supply and digital inputs and outputs; Digital inputs and outputs isolated from each other

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	-25 to 60°C
Temperature – Vertical mounting orientation	-25 to 50°C
Temperature – Derating	See section "Derating".
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order 2x terminal block X20TB12 separately. ; Order 2x screw clamp terminal block TB3102 and 2x screw clamp terminal block TB3104 separately.
Pitch	87.5 +0.2 mm

Accessories

Required accessories (order separately)

X20TB12	Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using lever; Ability to label each terminal; Plain text labeling also possibl…
0TB3104-7012	Terminal blocks — The single row 4-pin terminal block 0TB3104 is used for making connections on an X20 energy measurement module.
0TB3104-7011	Terminal blocks — The single row 4-pin terminal block 0TB3104 is used for making connections on an X20 energy measurement module.
0TB3102-7012	Terminal blocks — The single row 2-pin terminal block 0TB3102 is used for making connections on an X20 energy measurement module.
0TB3102-7011	Terminal blocks — Accessory terminal block, 2-pin, A-coded, screw clamp terminal block 6 mm²
